Back-Up Light: Notes

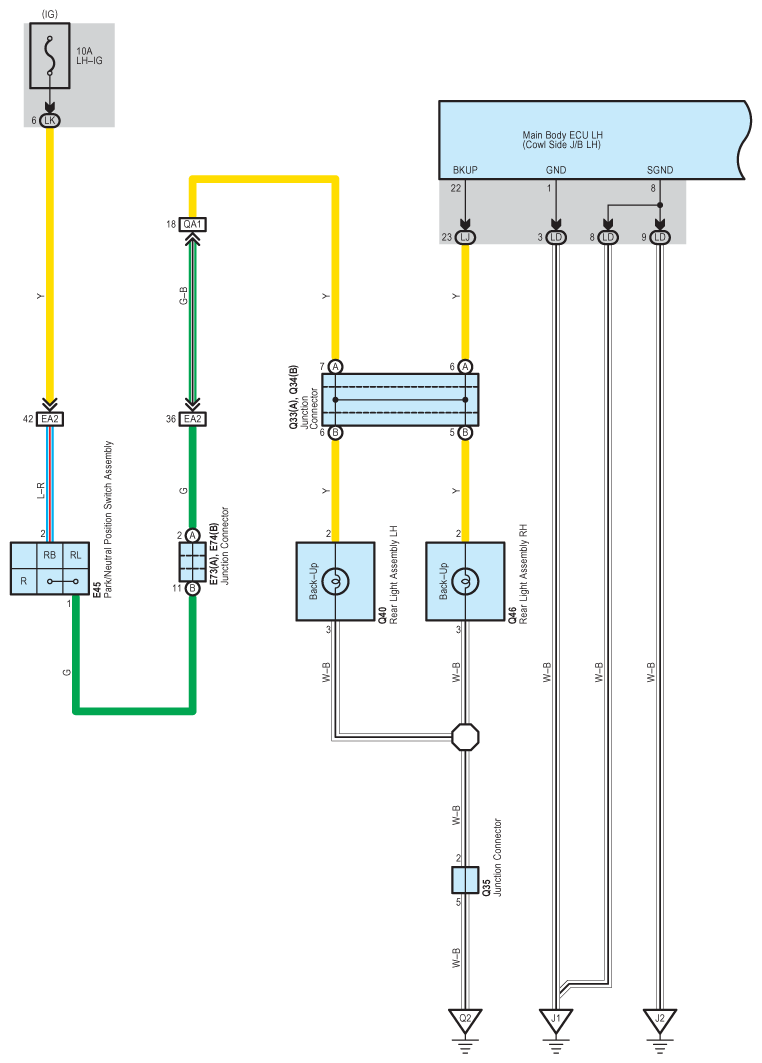

Fig 1: Back-Up Light System Wiring Diagram (1 Of 2)
G09122217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

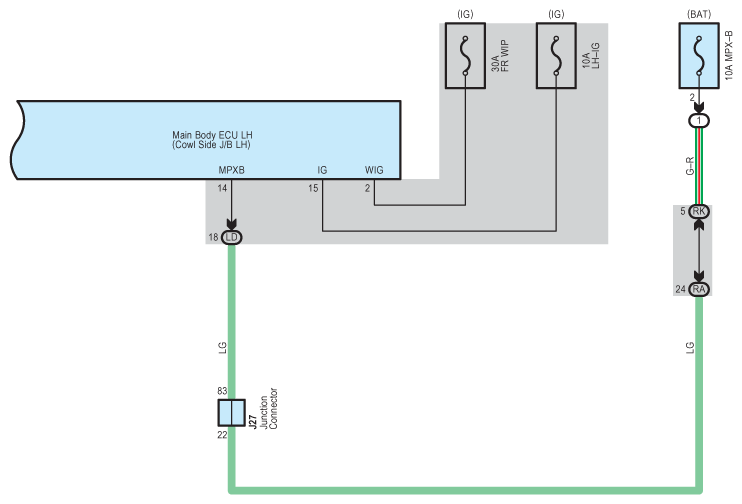

Fig 2: Back-Up Light System Wiring Diagram (2 Of 2)
G09122218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
