Cigarette Lighter: Notes

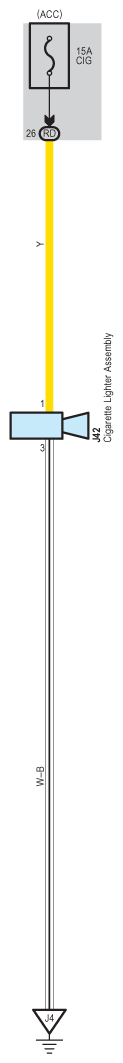

Fig 1: Cigarette Lighter System Wiring Diagram
G09122350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
