Headlight Beam Level Control: Notes

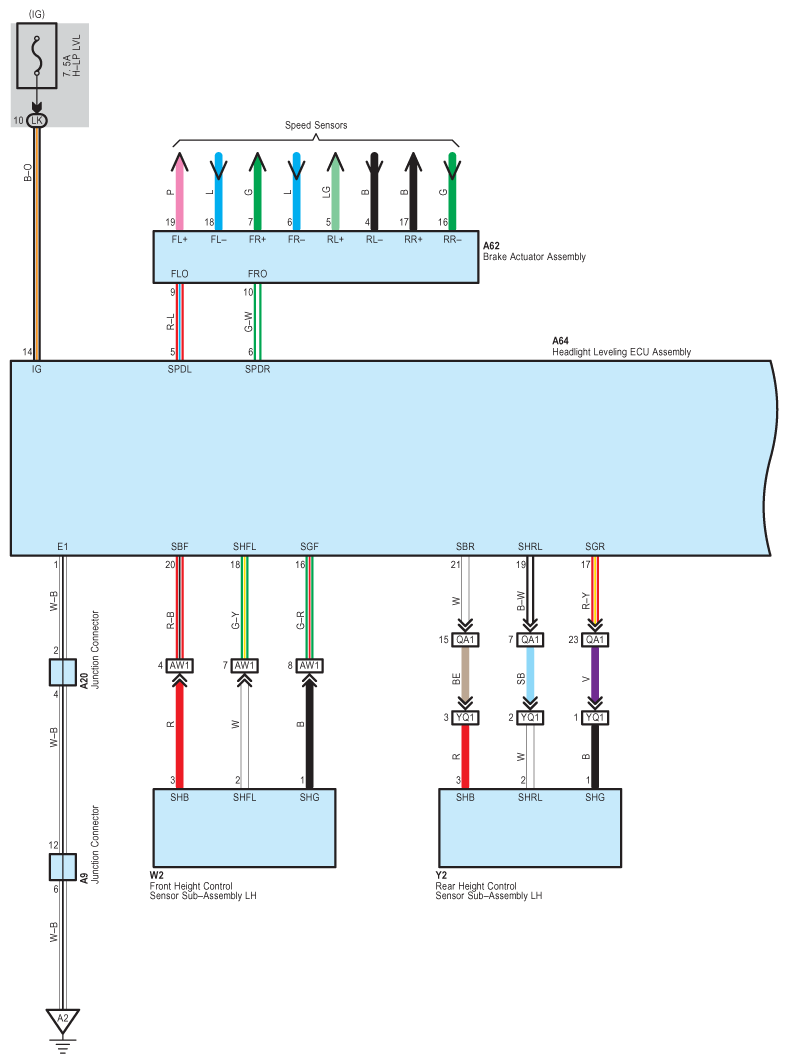

Fig 1: Headlight Beam Level Control System Wiring Diagram (1 Of 4)
G09122228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

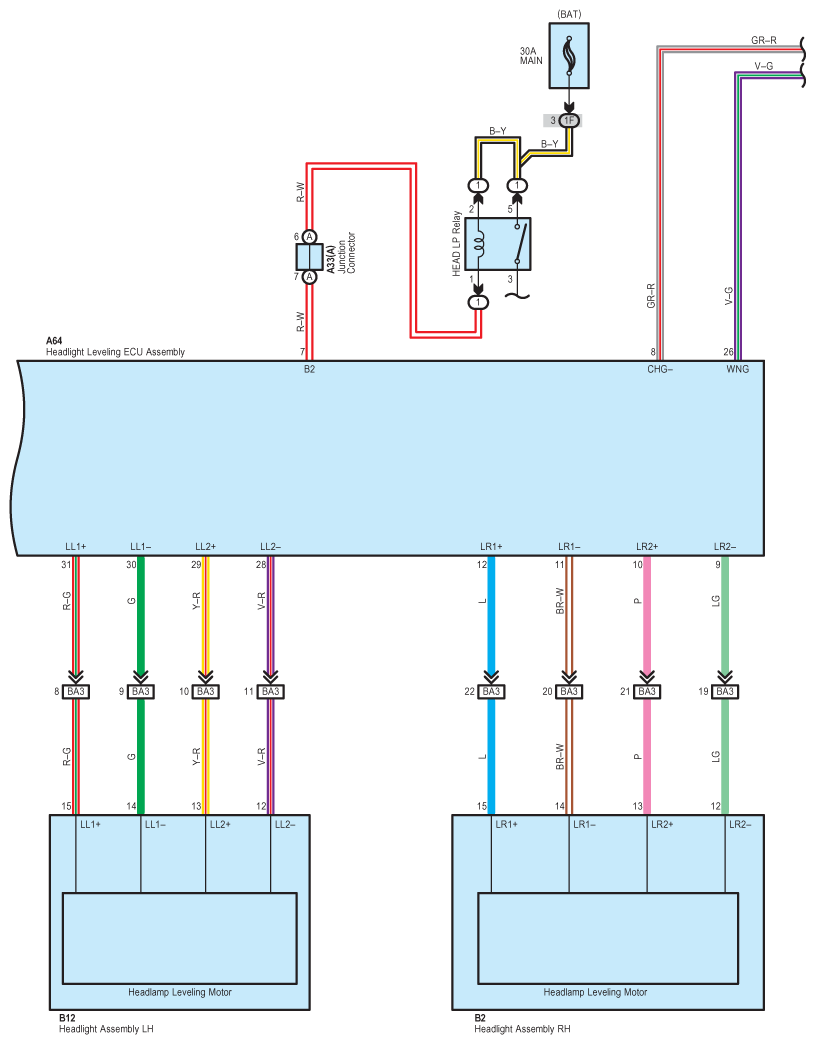

Fig 2: Headlight Beam Level Control System Wiring Diagram (2 Of 4)
G09122229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

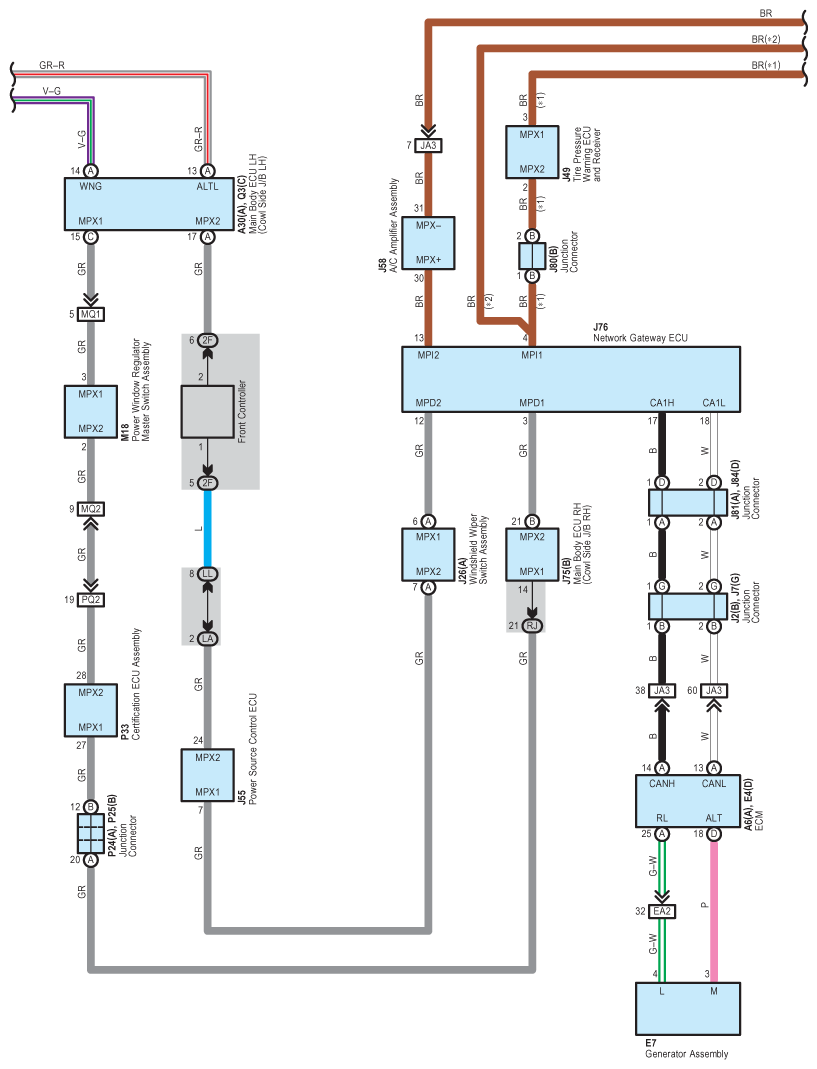

Fig 3: Headlight Beam Level Control System Wiring Diagram (3 Of 4)
G09122230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

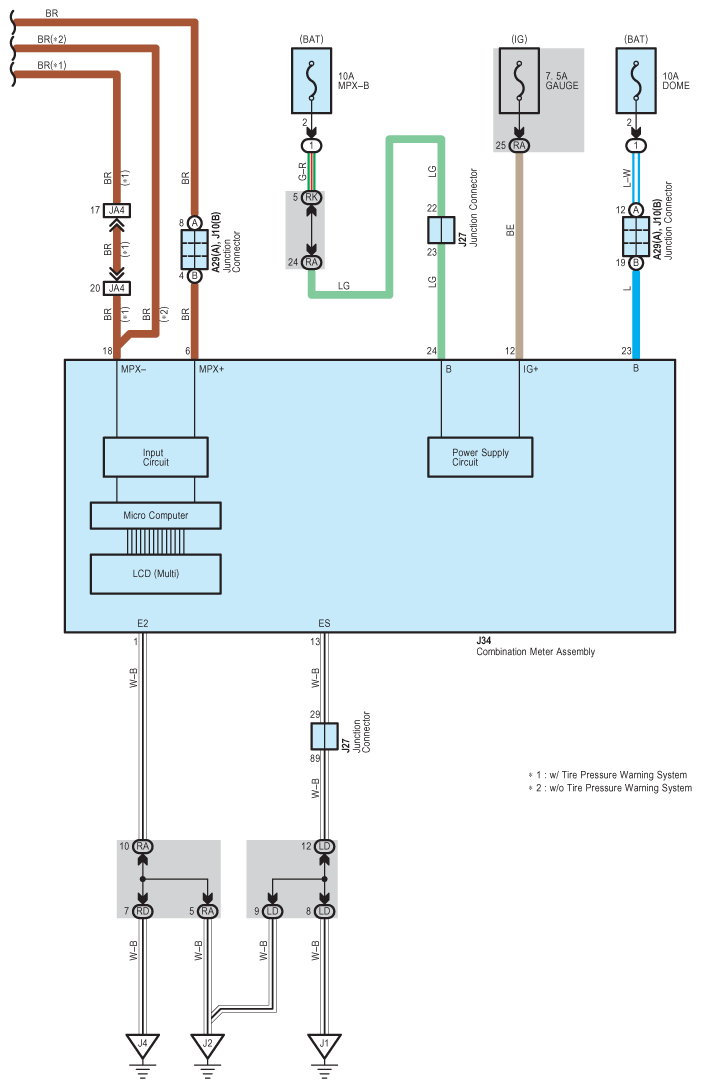

Fig 4: Headlight Beam Level Control System Wiring Diagram (4 Of 4)
G09122231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
