Headlight Cleaner: Notes

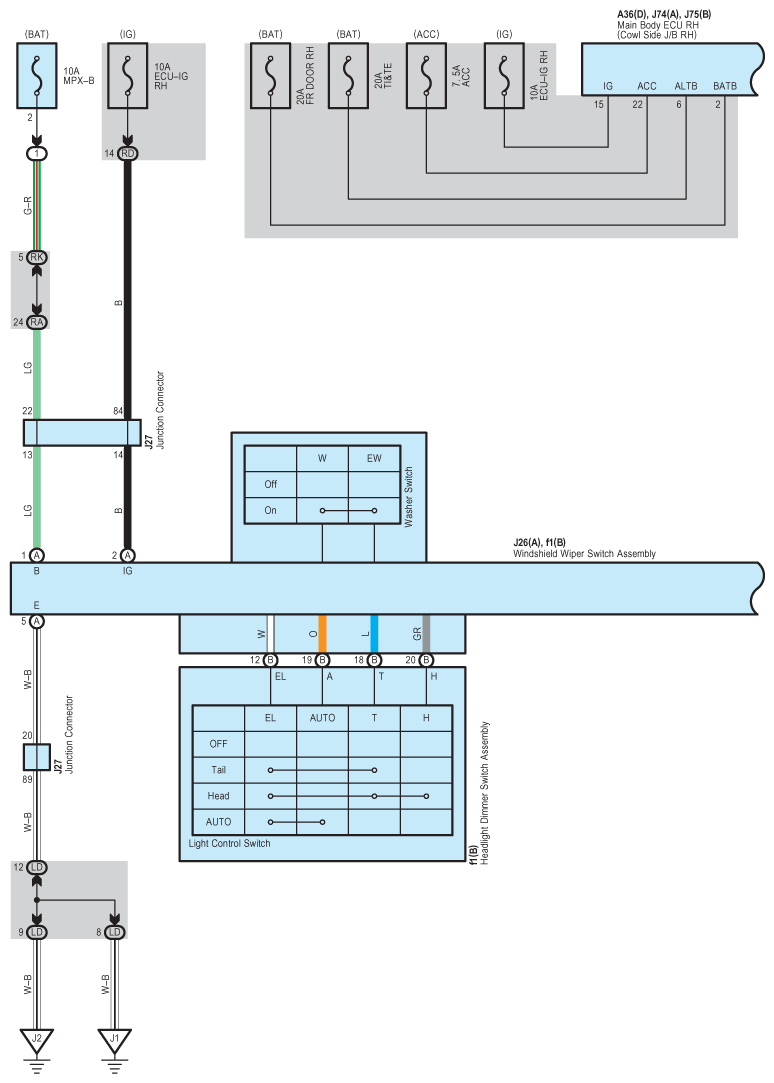

Fig 1: Headlight Cleaner System Wiring Diagram (1 Of 4)
G09122232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

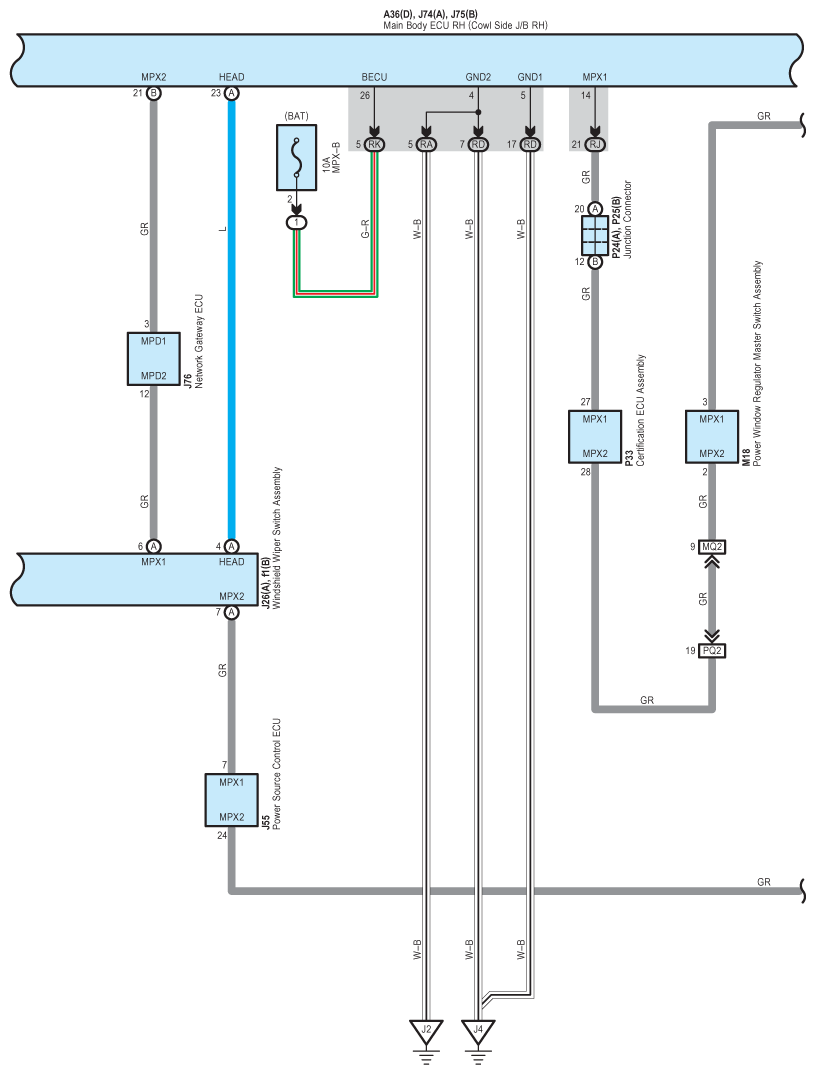

Fig 2: Headlight Cleaner System Wiring Diagram (2 Of 4)
G09122233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

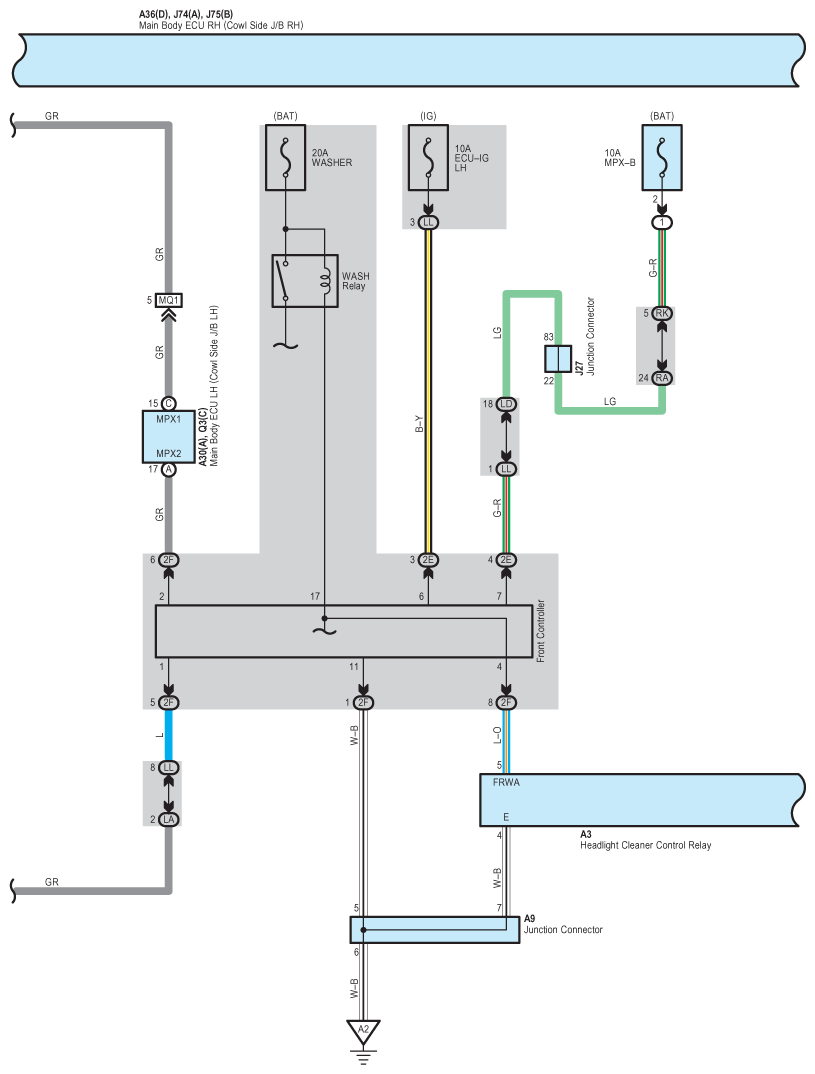

Fig 3: Headlight Cleaner System Wiring Diagram (3 Of 4)
G09122234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

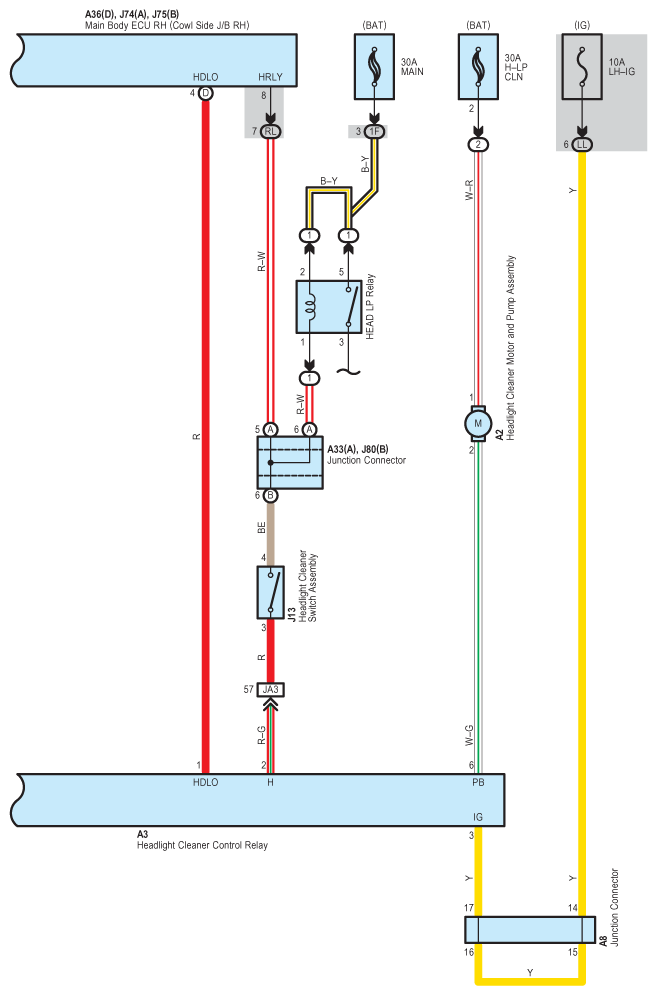

Fig 4: Headlight Cleaner System Wiring Diagram (4 Of 4)
G09122235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
