Pre-Collision System: Notes

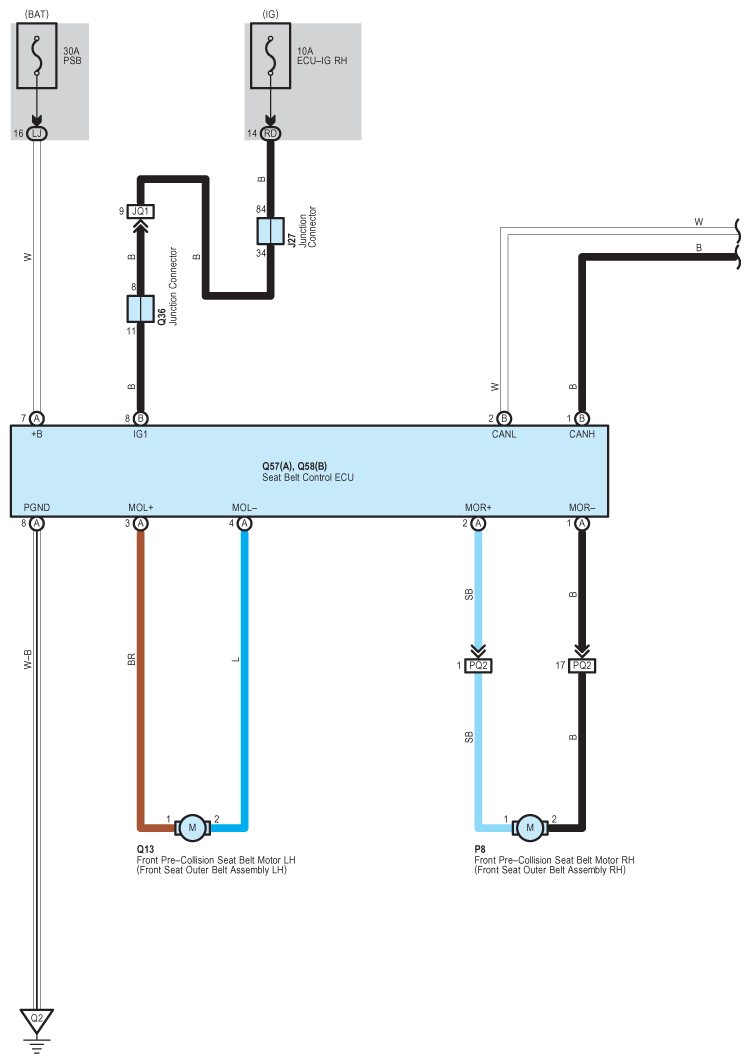

Fig 1: Pre-Collision System Wiring Diagram (1 Of 4)
G09122311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

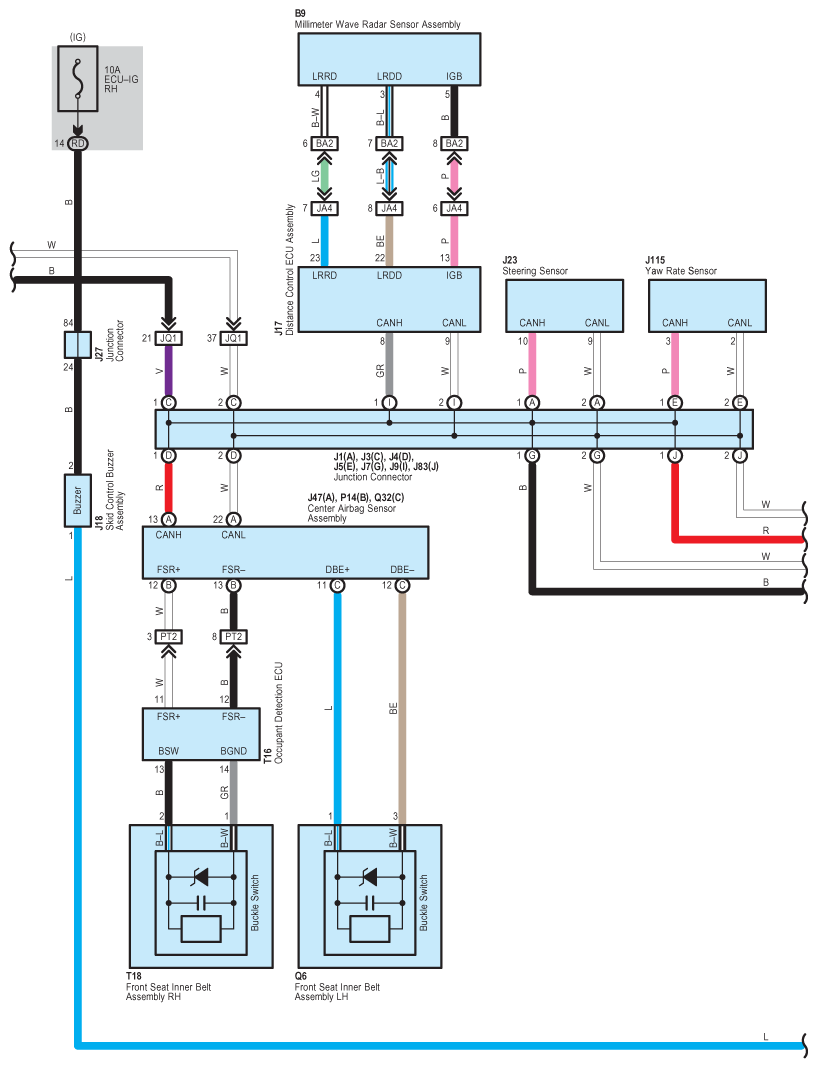

Fig 2: Pre-Collision System Wiring Diagram (2 Of 4)
G09122312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

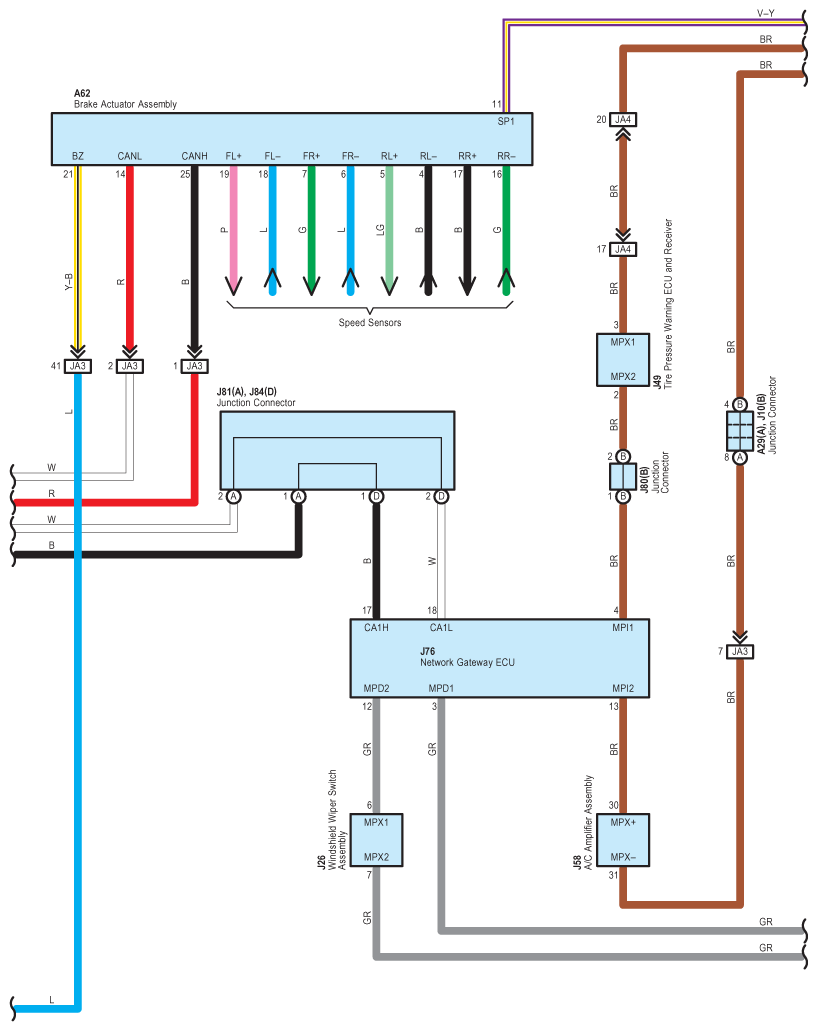

Fig 3: Pre-Collision System Wiring Diagram (3 Of 4)
G09122313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

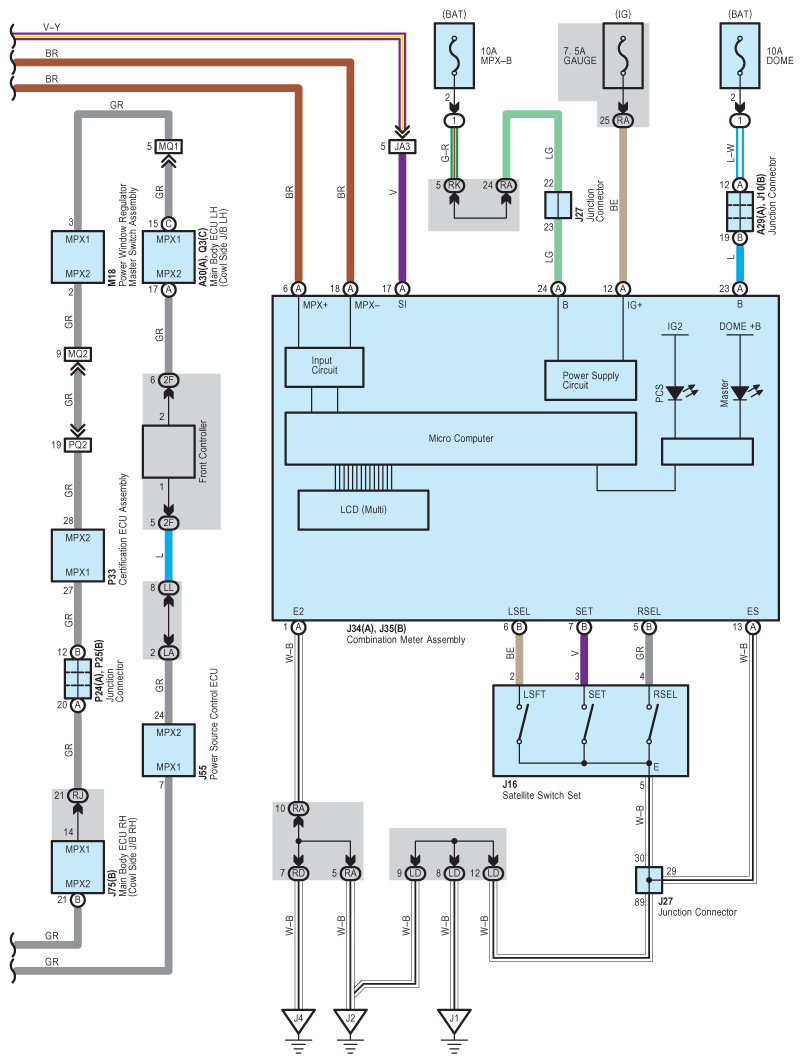

Fig 4: Pre-Collision System Wiring Diagram (4 Of 4)
G09122314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
