Remote Control Mirror: Notes

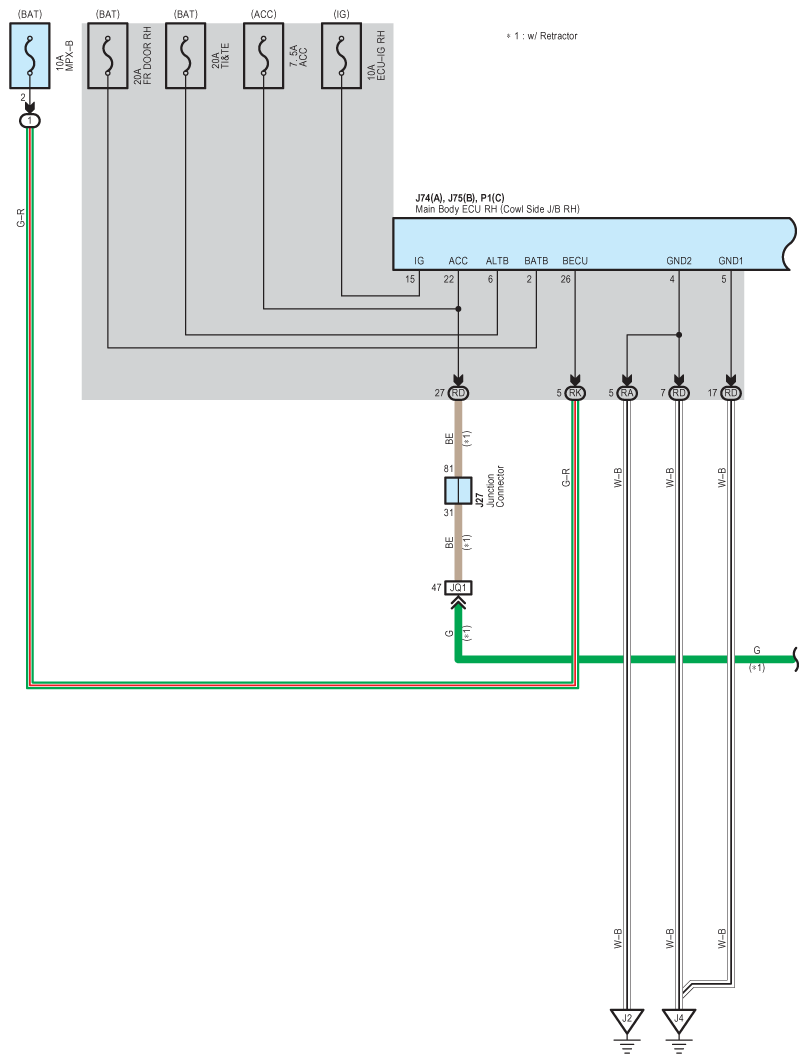

Fig 1: Remote Control Mirror System Wiring Diagram (1 Of 7)
G09122353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

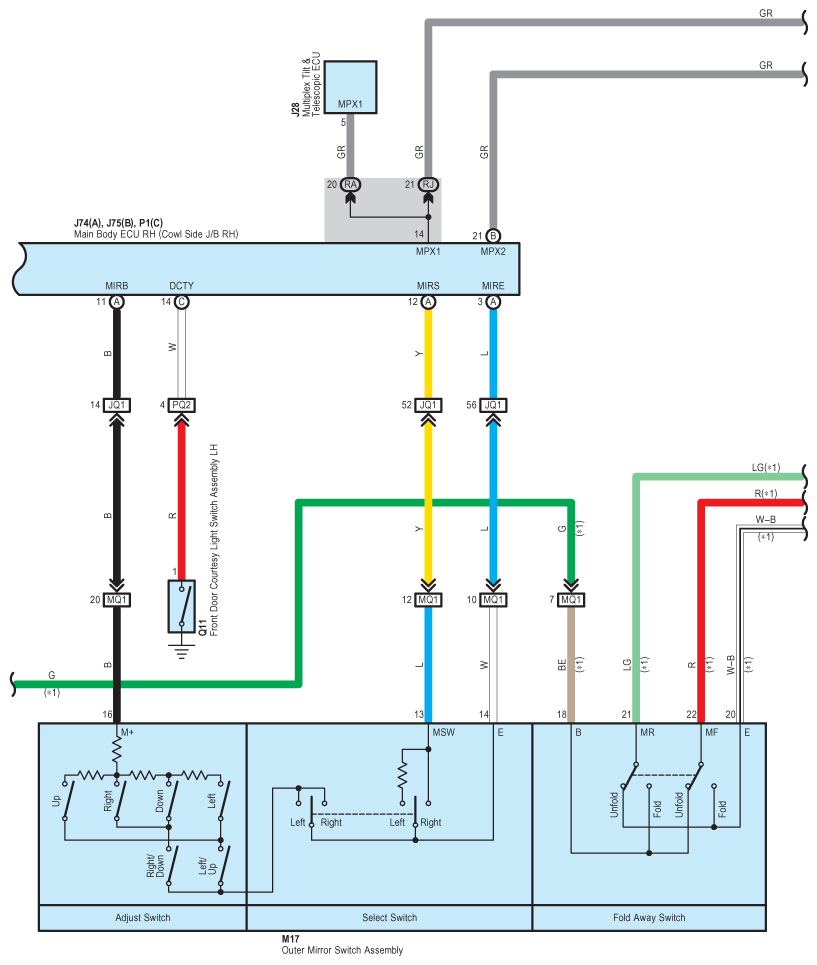

Fig 2: Remote Control Mirror System Wiring Diagram (2 Of 7)
G09122354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

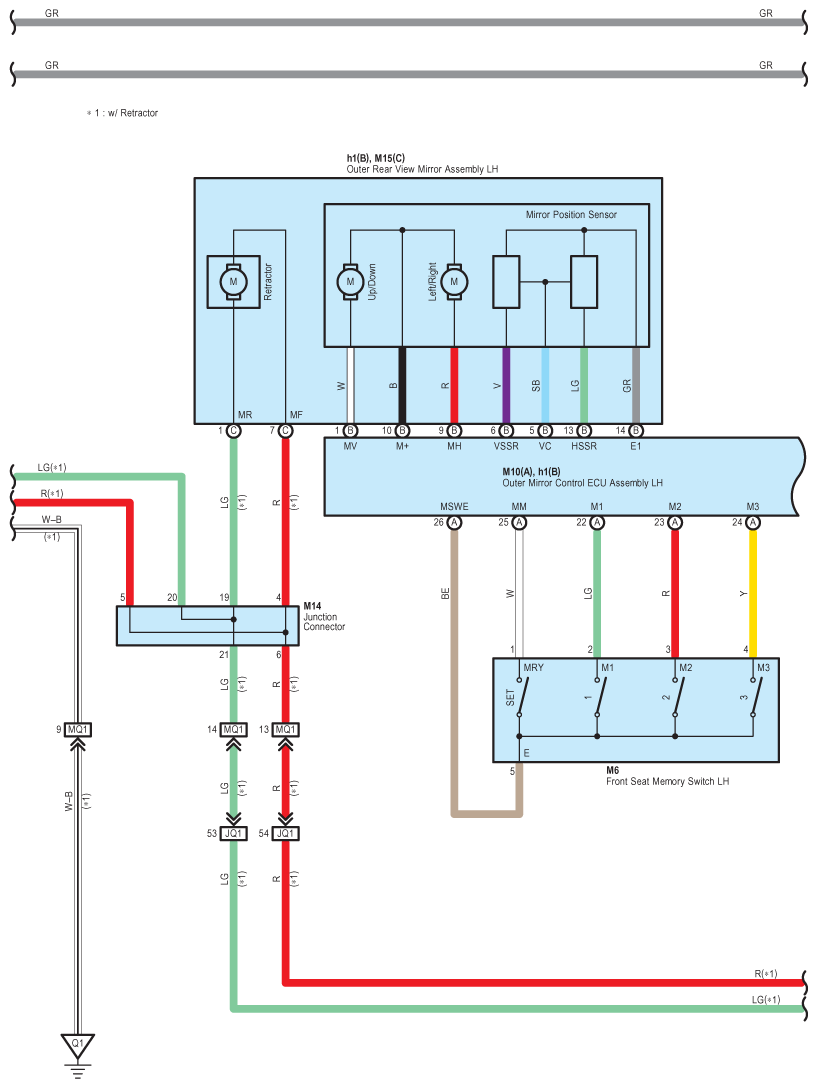

Fig 3: Remote Control Mirror System Wiring Diagram (3 Of 7)
G09122355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

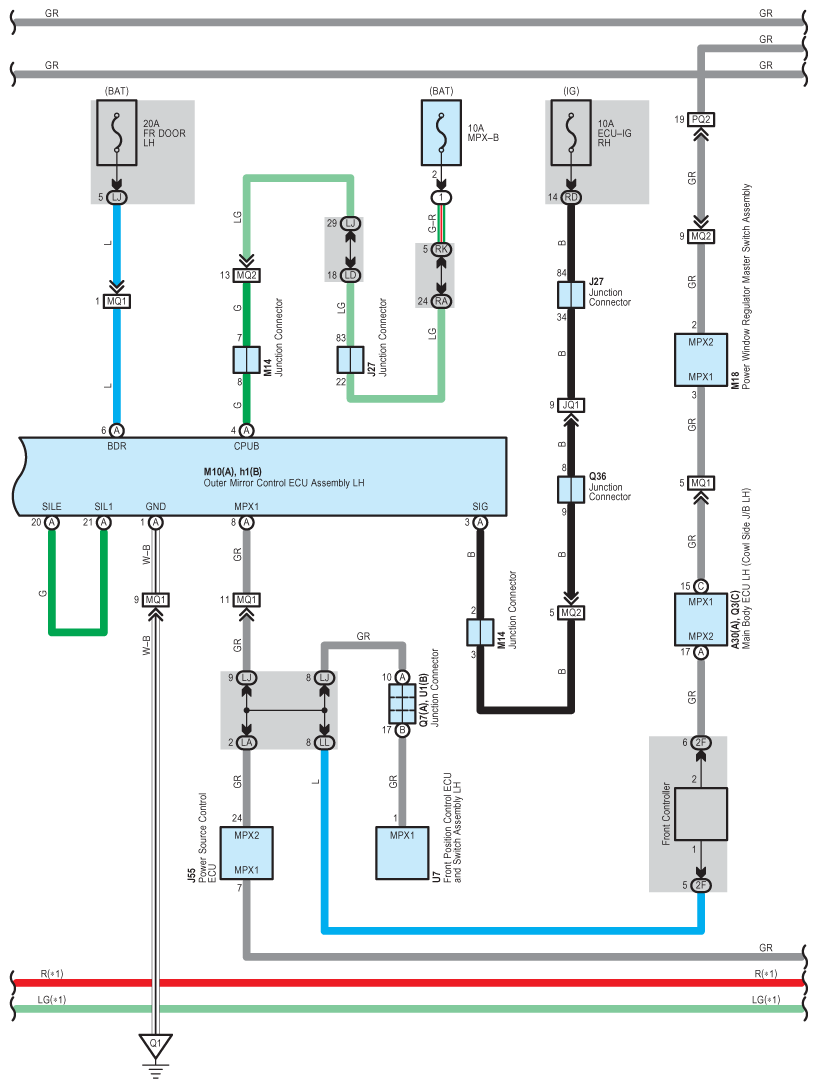

Fig 4: Remote Control Mirror System Wiring Diagram (4 Of 7)
G09122356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

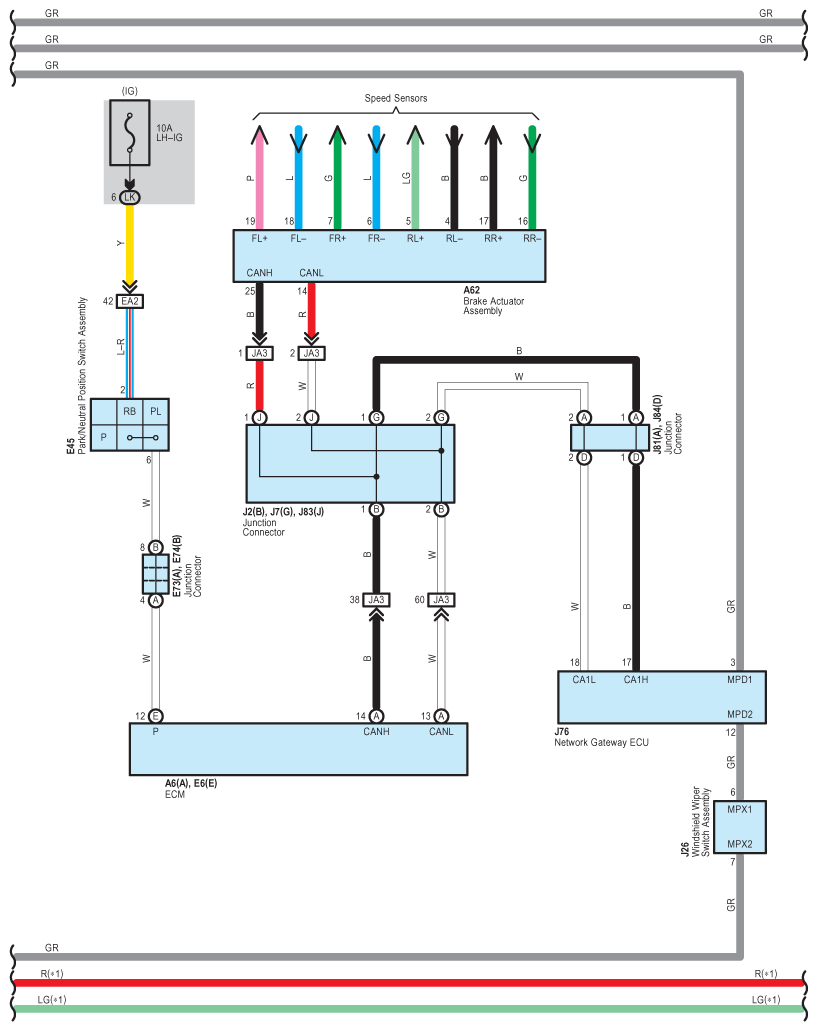

Fig 5: Remote Control Mirror System Wiring Diagram (5 Of 7)
G09122357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

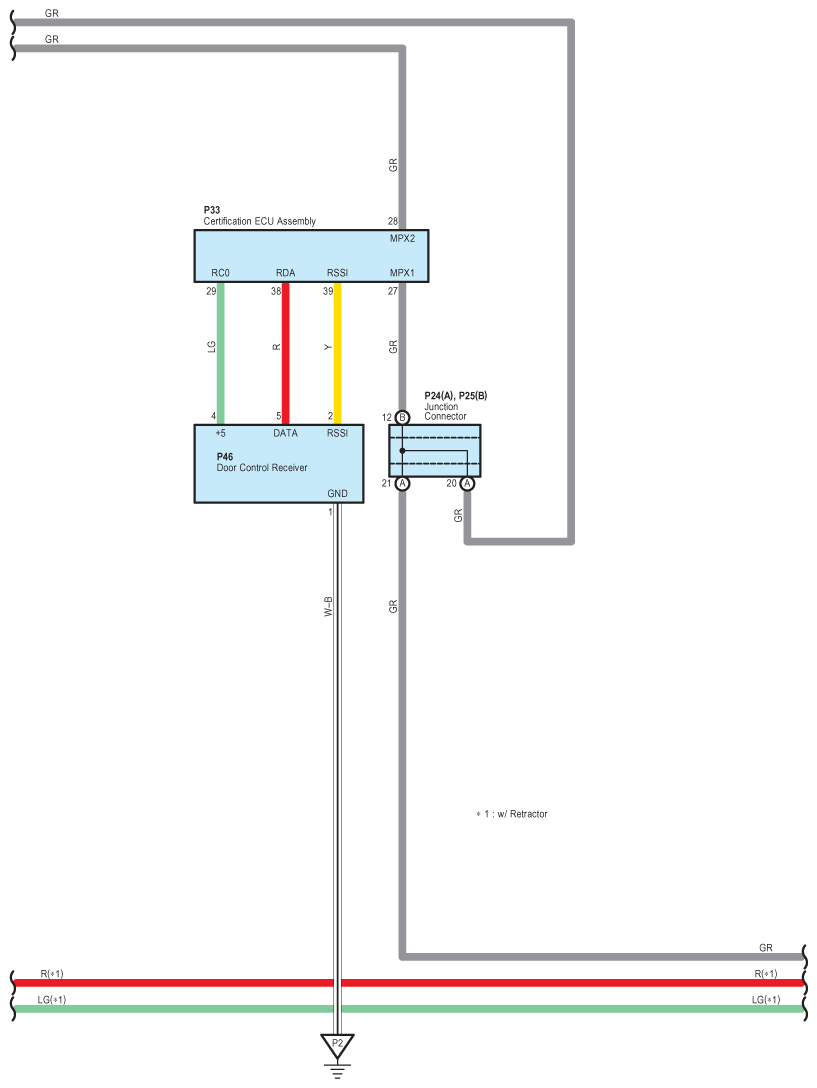

Fig 6: Remote Control Mirror System Wiring Diagram (6 Of 7)
G09122358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

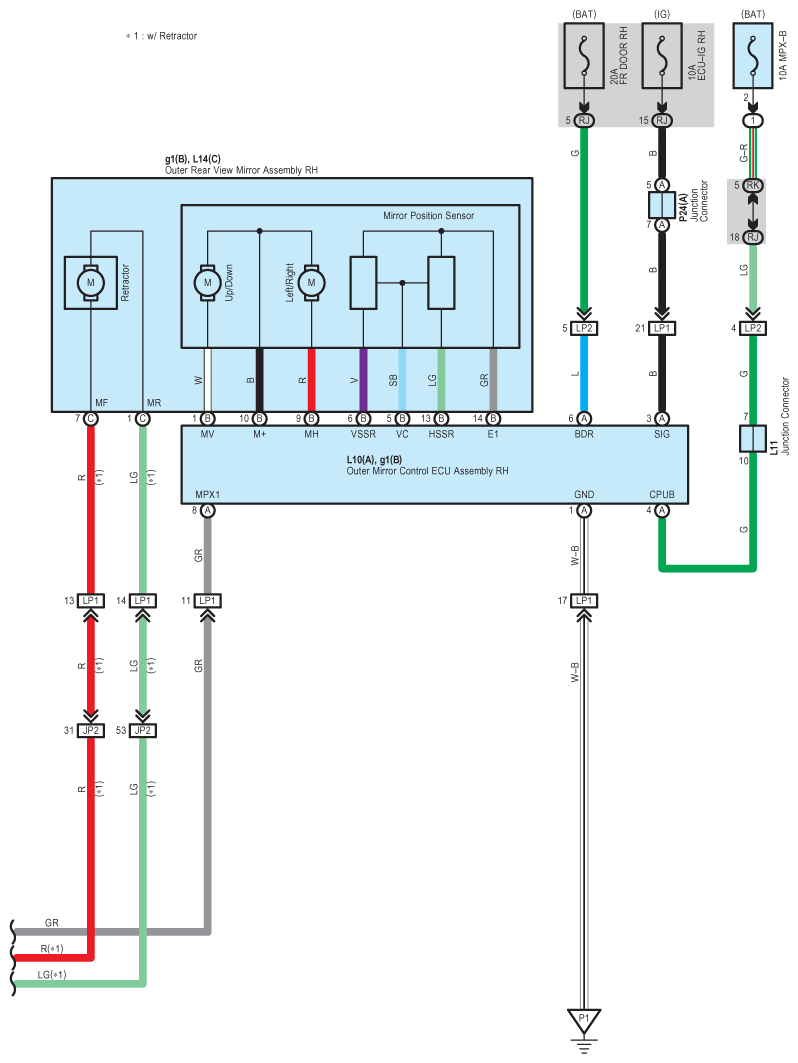

Fig 7: Remote Control Mirror System Wiring Diagram (7 Of 7)
G09122359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
