DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

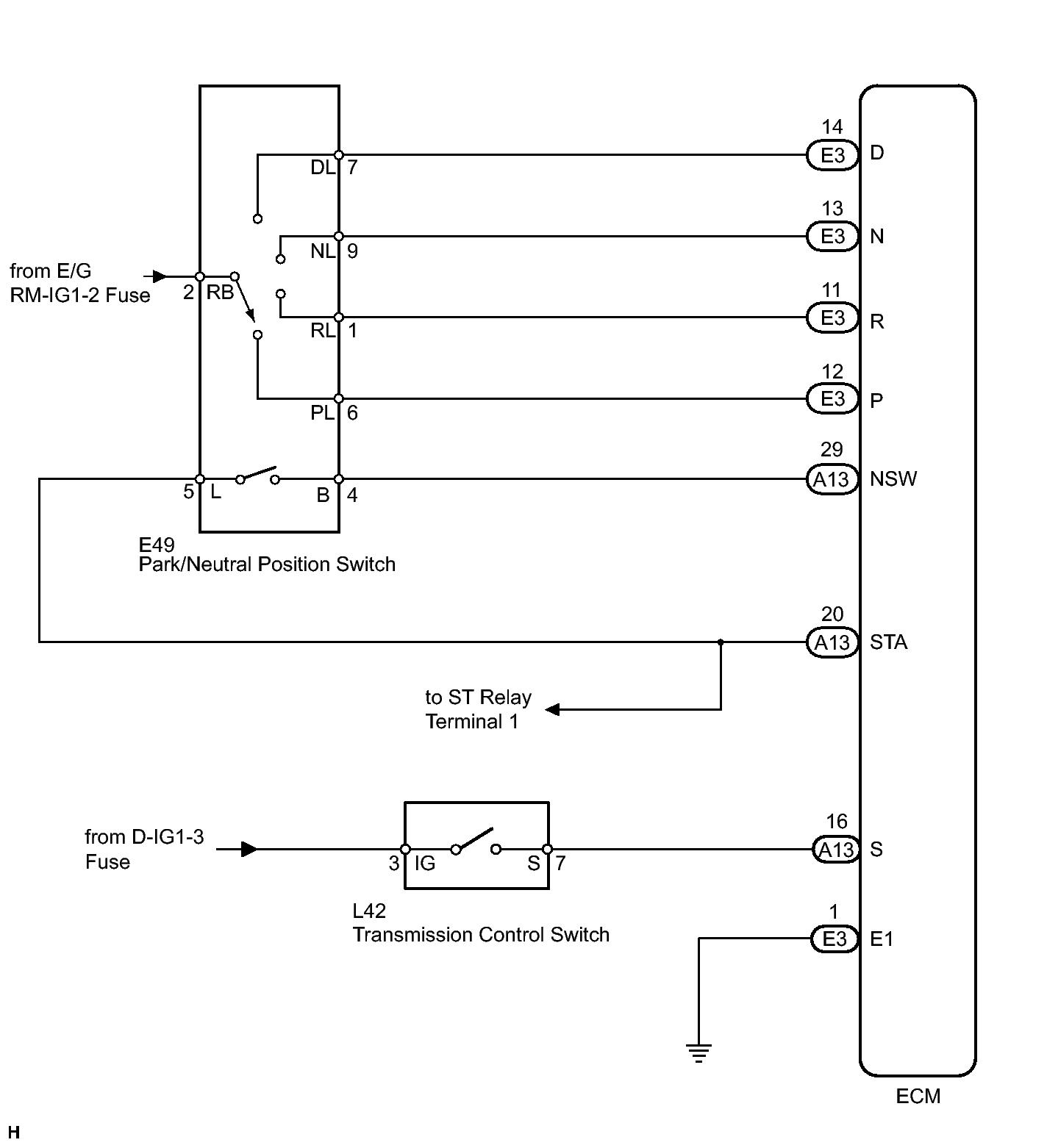

Fig 1: ECM Wiring Diagram
GTY403193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
