Dynamic Radar Cruise Control: Notes

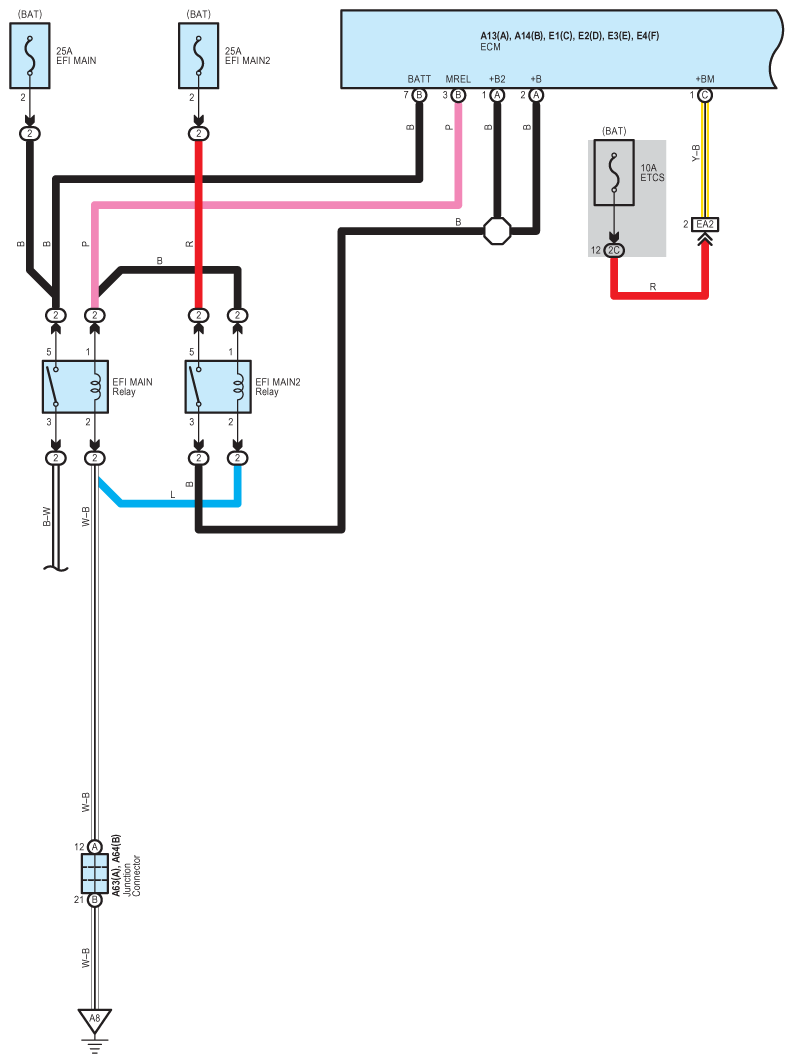

Fig 1: Dynamic Radar Cruise Control System Wiring Diagram (1 Of 22)

G09123277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

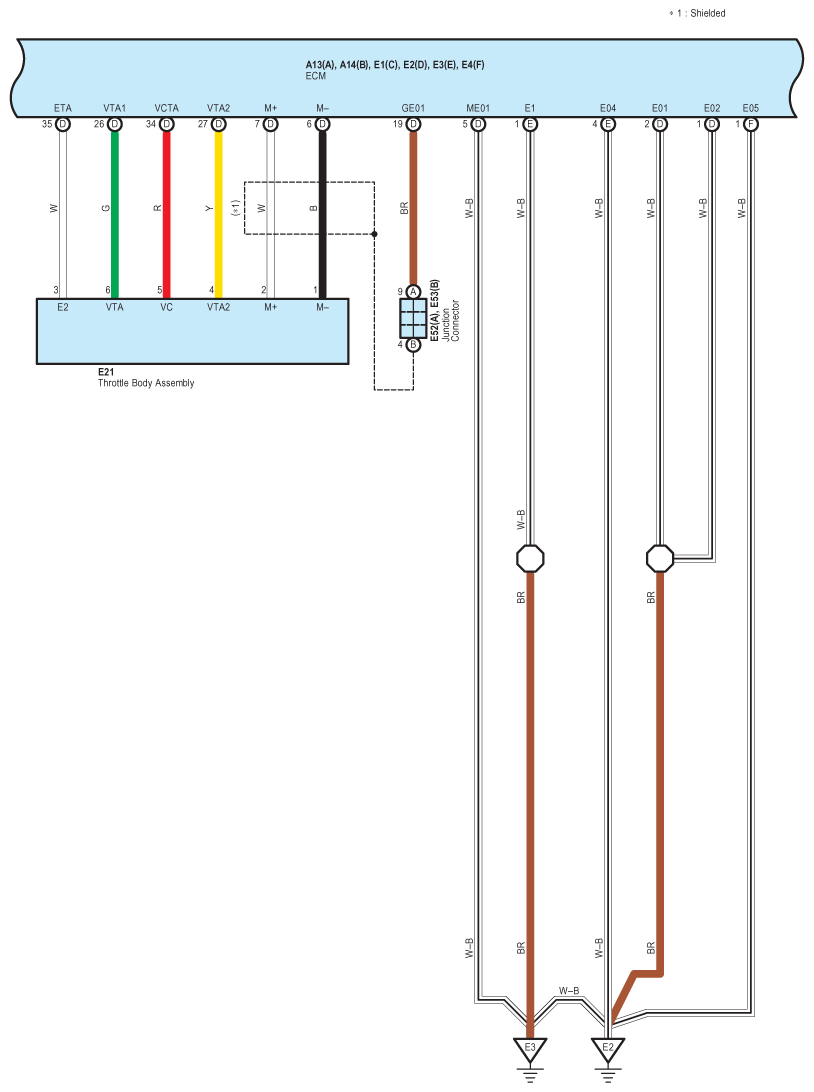

Fig 2: Dynamic Radar Cruise Control System Wiring Diagram (2 Of 22)

G09123278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

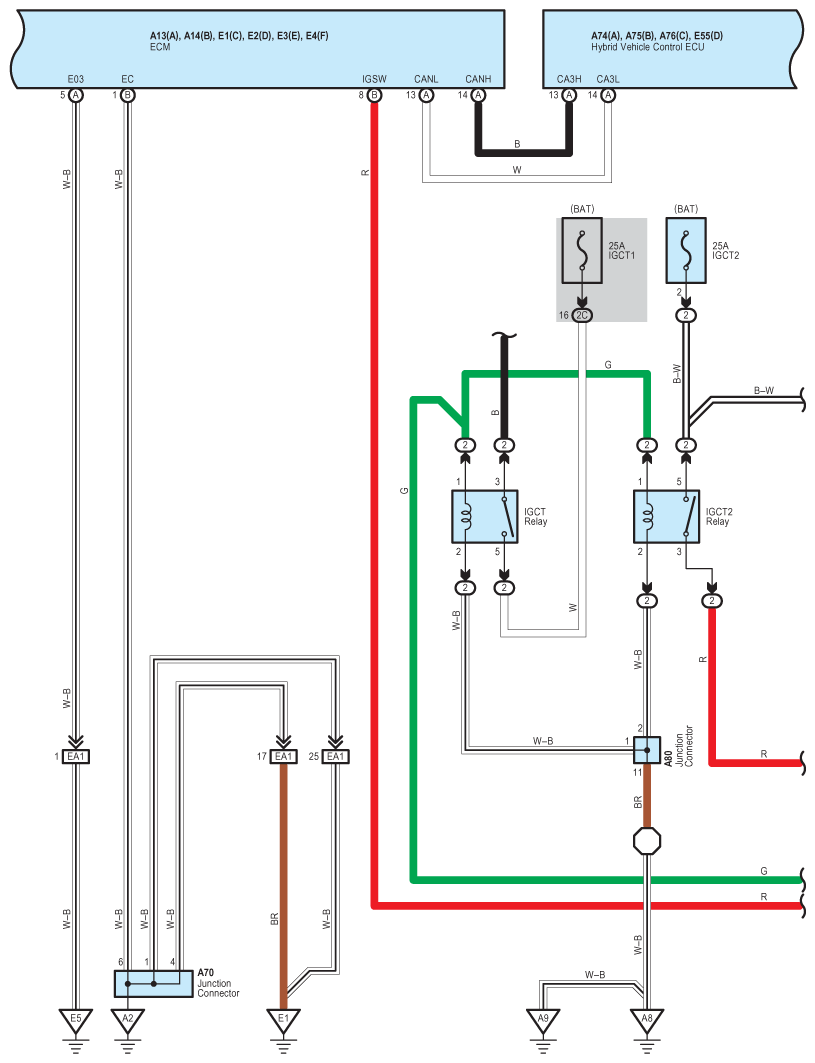

Fig 3: Dynamic Radar Cruise Control System Wiring Diagram (3 Of 22)

G09123279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

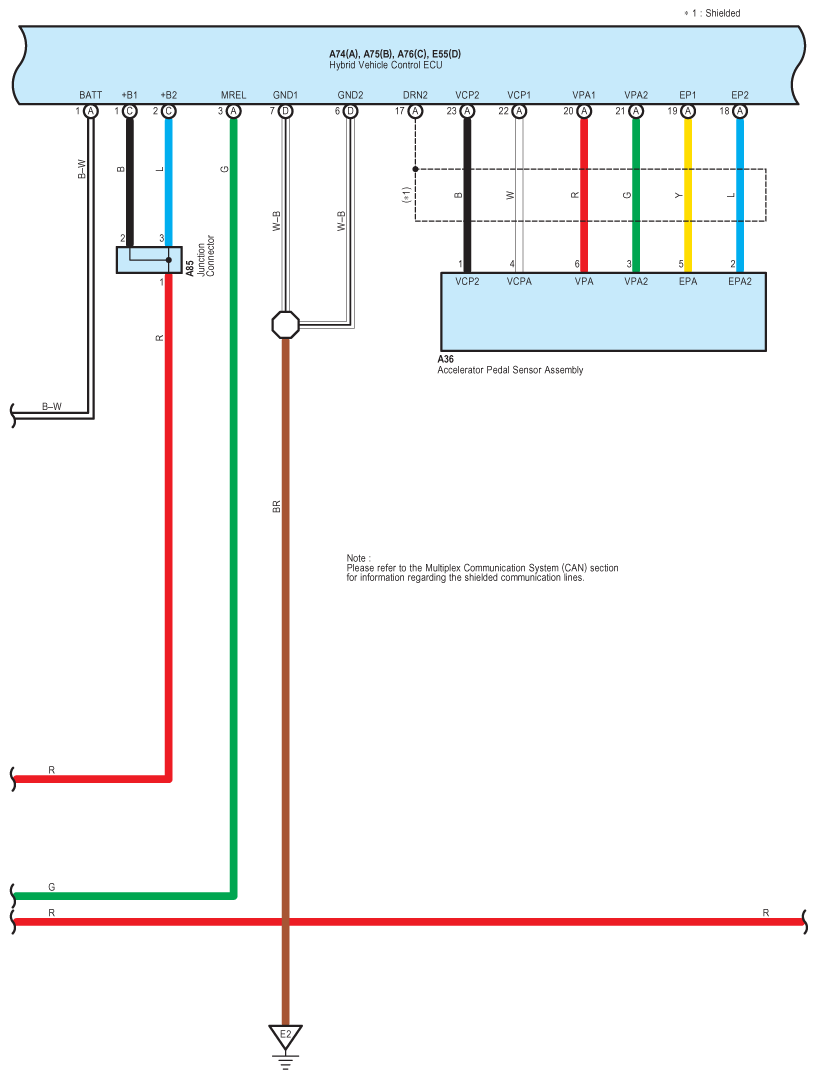

Fig 4: Dynamic Radar Cruise Control System Wiring Diagram (4 Of 22)

G09123280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

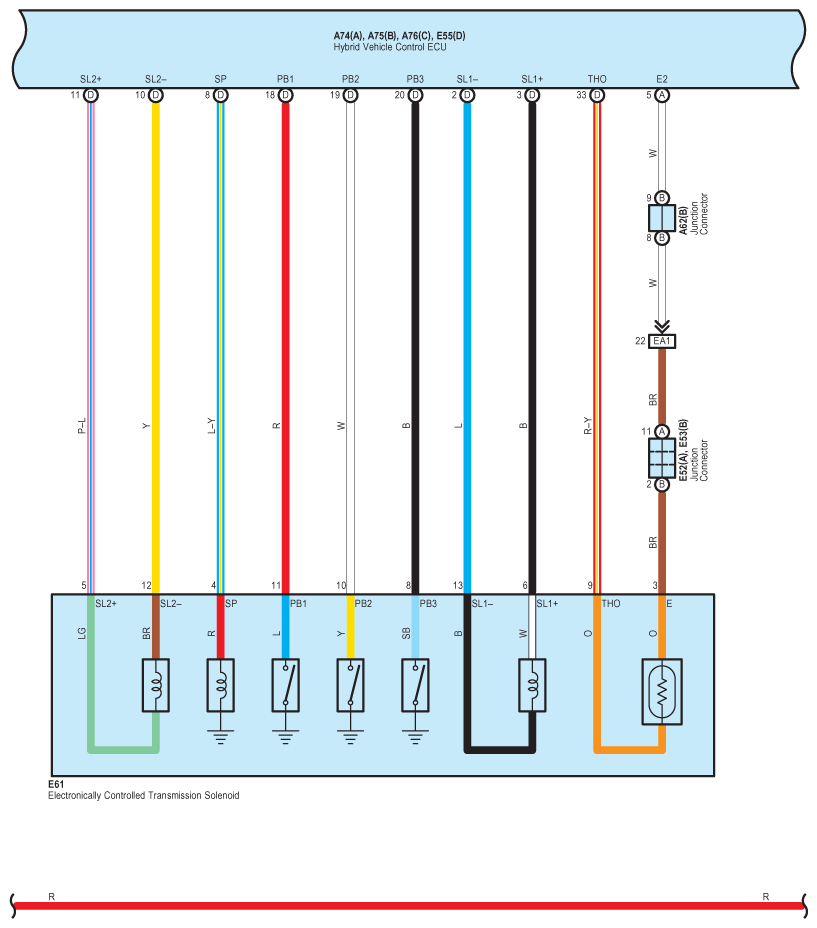

Fig 5: Dynamic Radar Cruise Control System Wiring Diagram (5 Of 22)

G09123281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

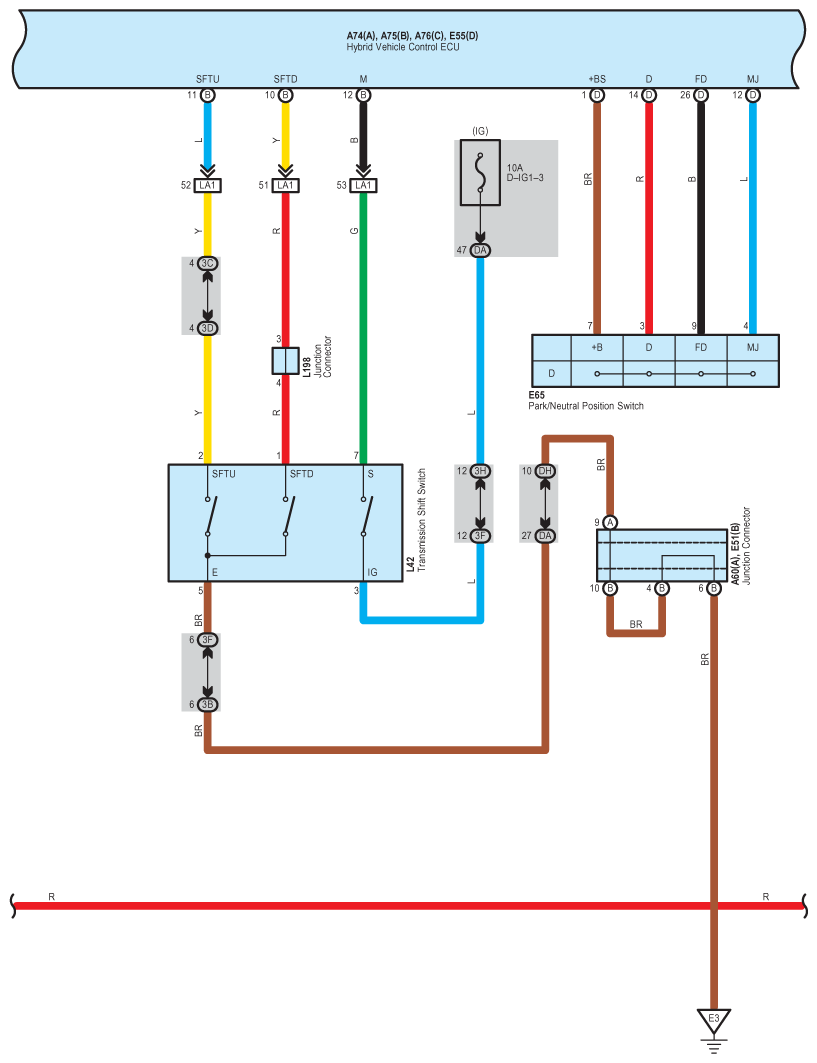

Fig 6: Dynamic Radar Cruise Control System Wiring Diagram (6 Of 22)

G09123282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

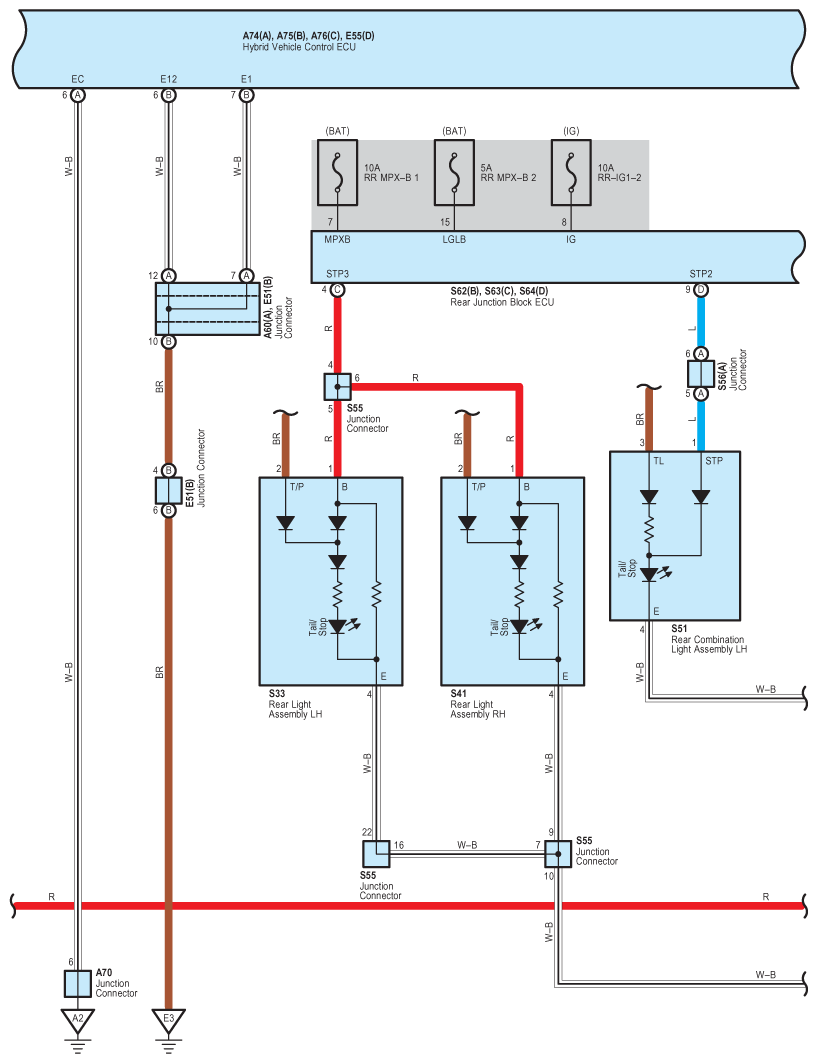

Fig 7: Dynamic Radar Cruise Control System Wiring Diagram (7 Of 22)

G09123283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

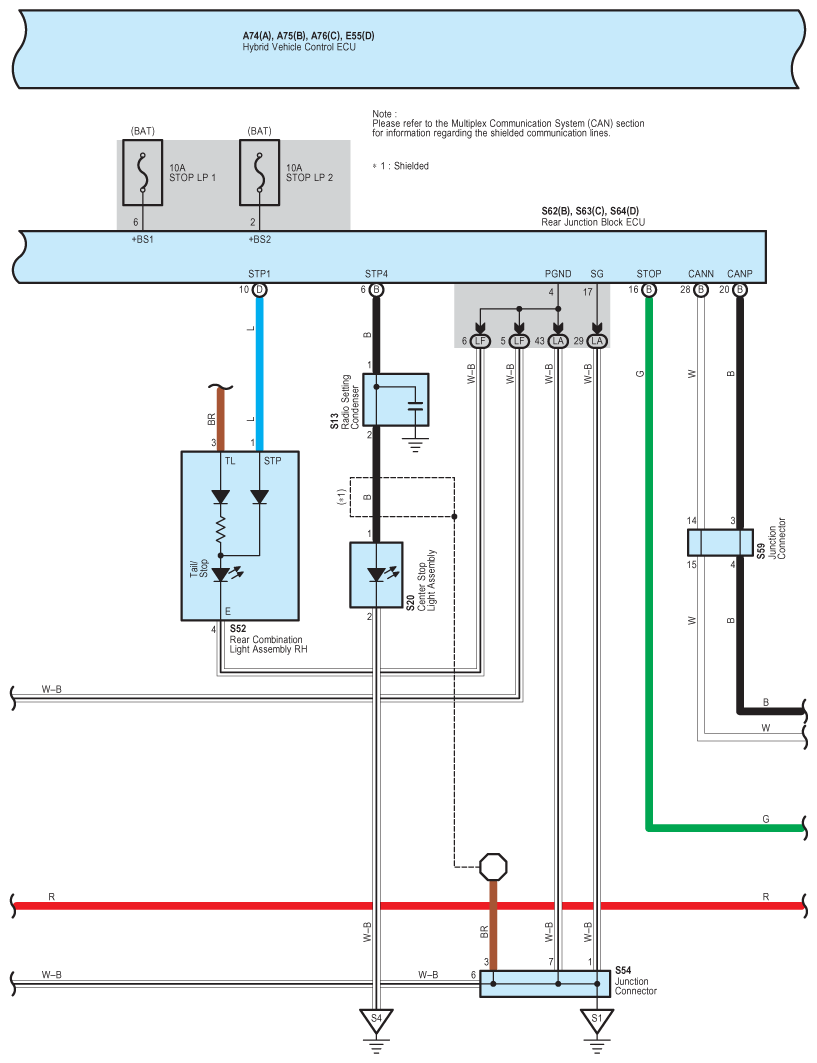

Fig 8: Dynamic Radar Cruise Control System Wiring Diagram (8 Of 22)

G09123284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

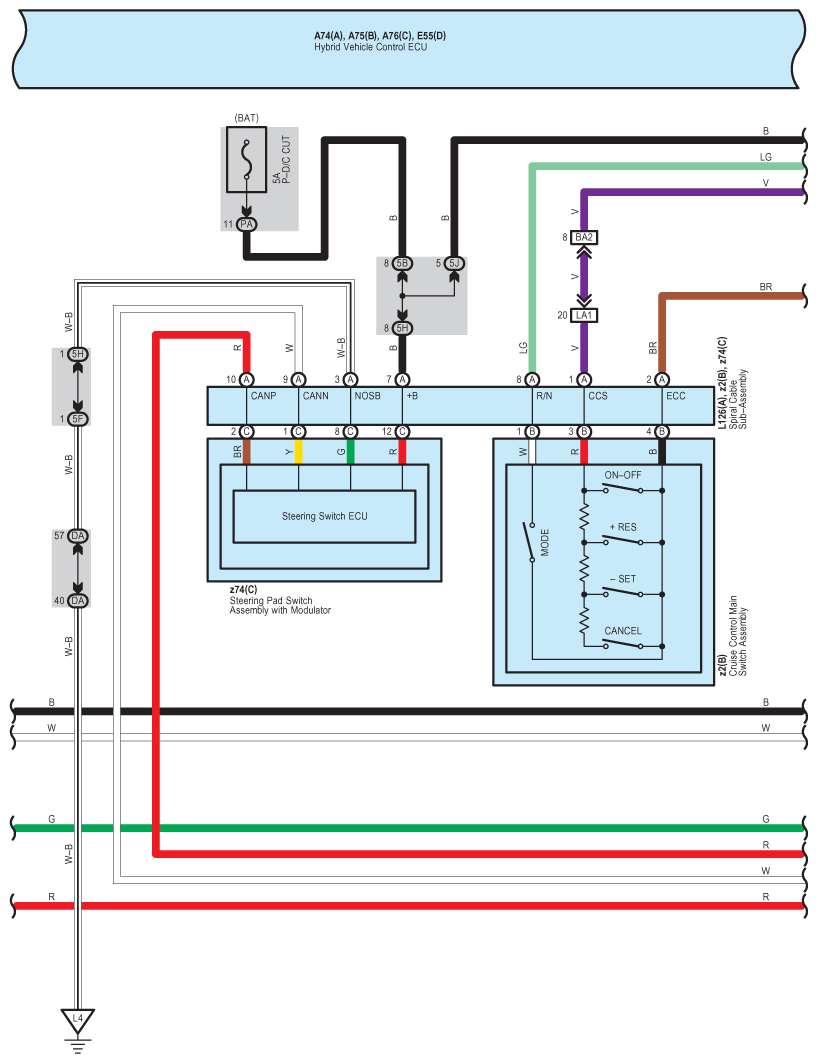

Fig 9: Dynamic Radar Cruise Control System Wiring Diagram (9 Of 22)

G09123285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

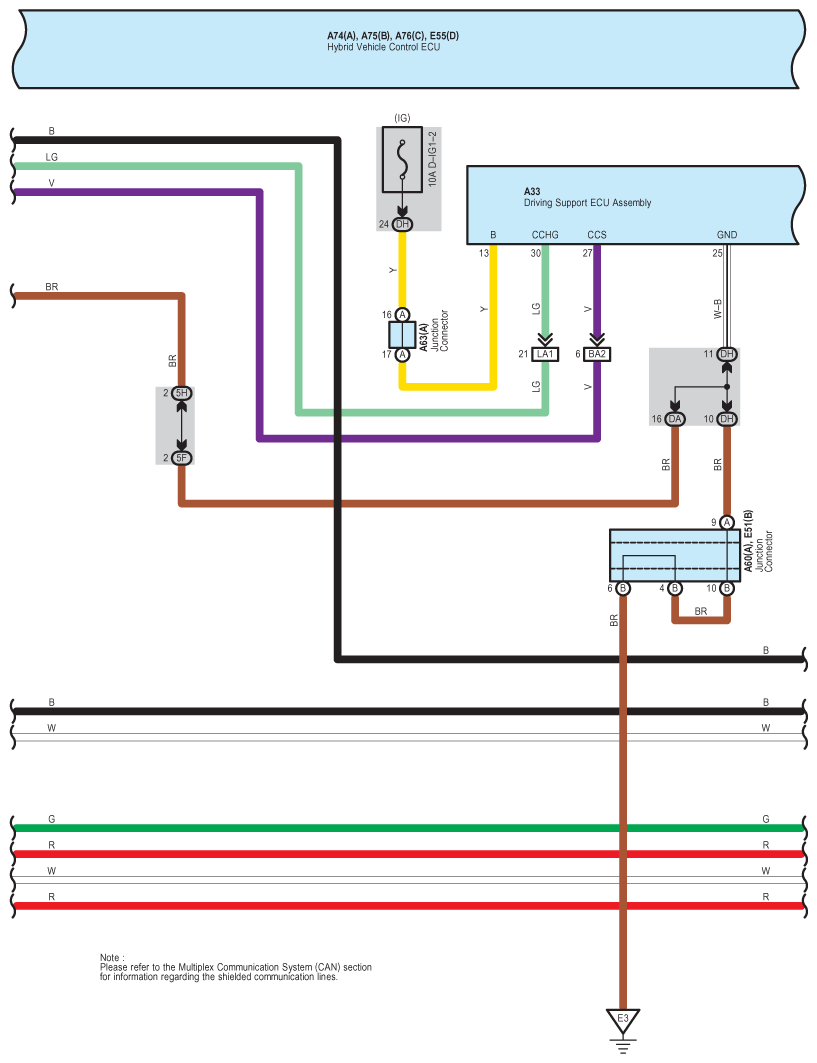

Fig 10: Dynamic Radar Cruise Control System Wiring Diagram (10 Of 22)

G09123286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

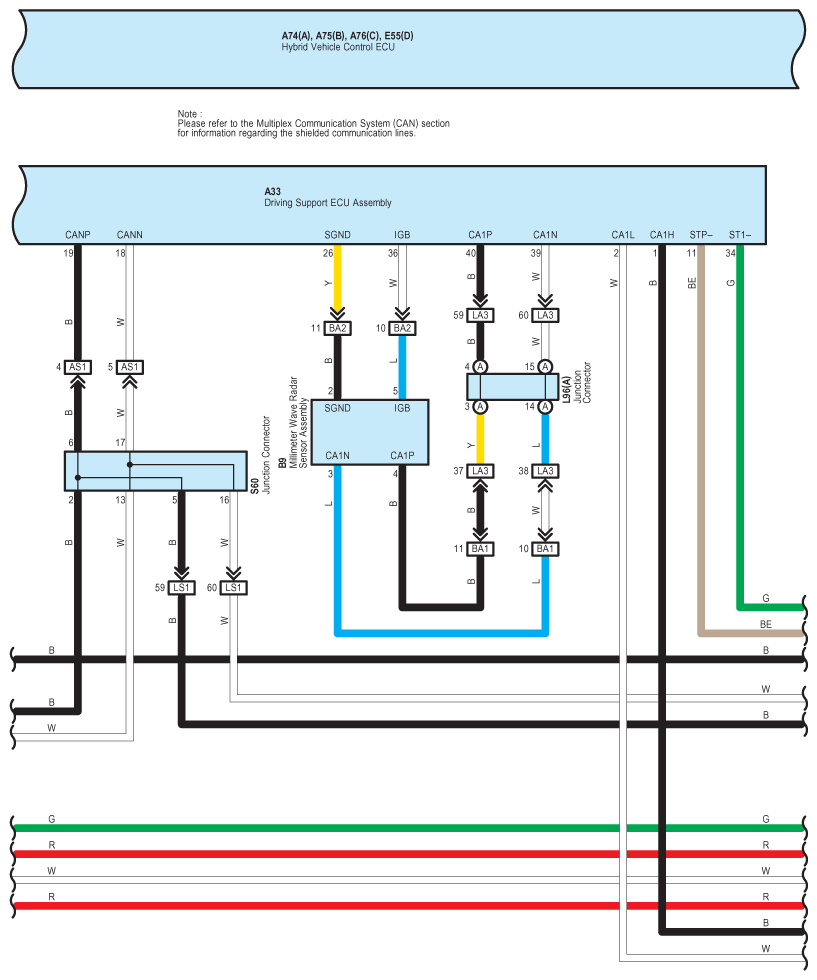

Fig 11: Dynamic Radar Cruise Control System Wiring Diagram (11 Of 22)

G09123287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

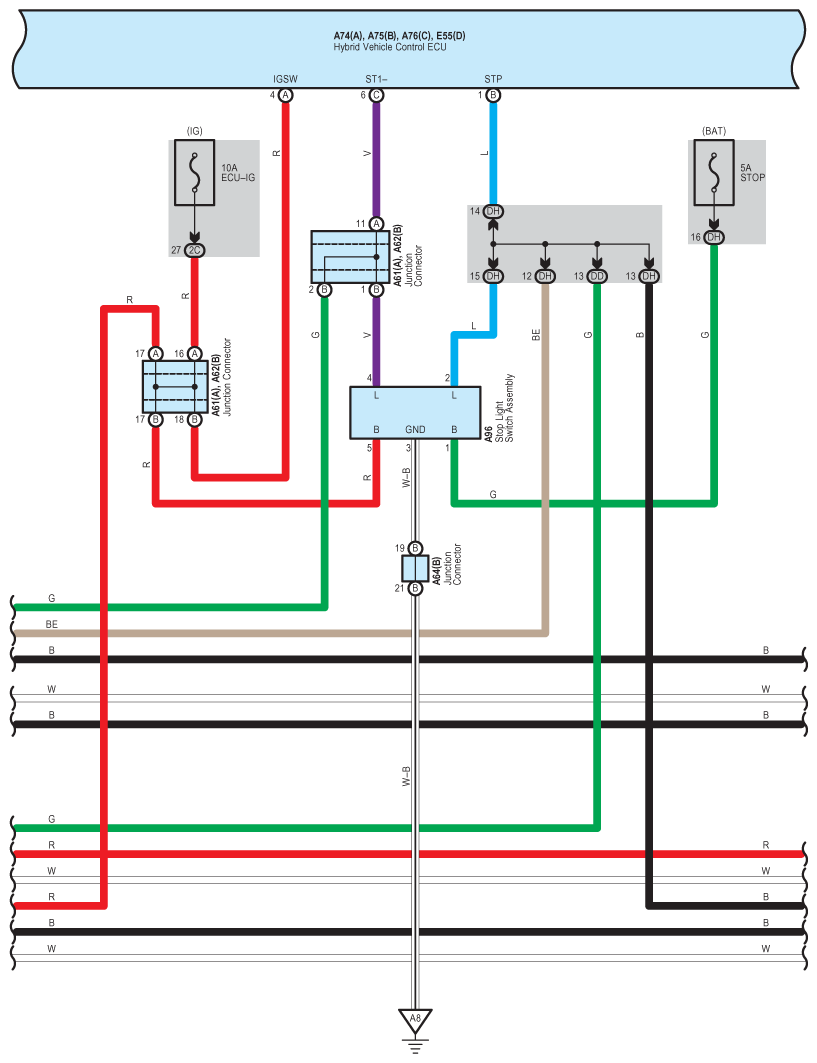

Fig 12: Dynamic Radar Cruise Control System Wiring Diagram (12 Of 22)

G09123288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

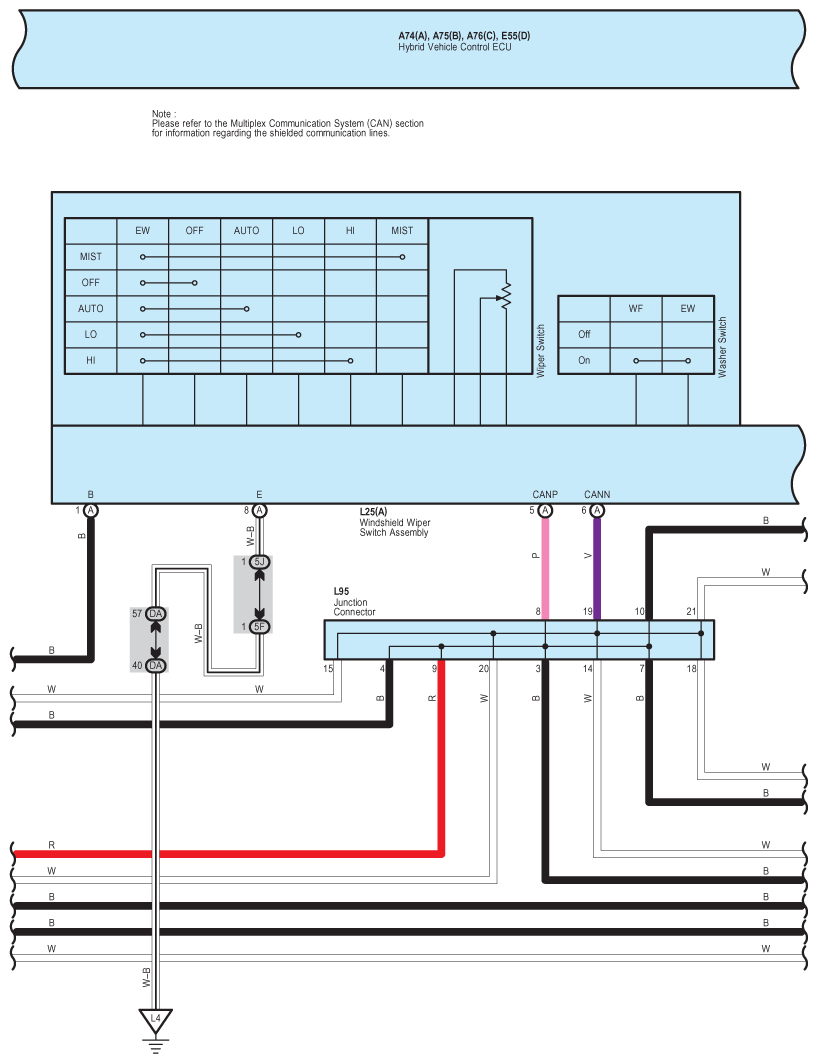

Fig 13: Dynamic Radar Cruise Control System Wiring Diagram (13 Of 22)

G09123289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

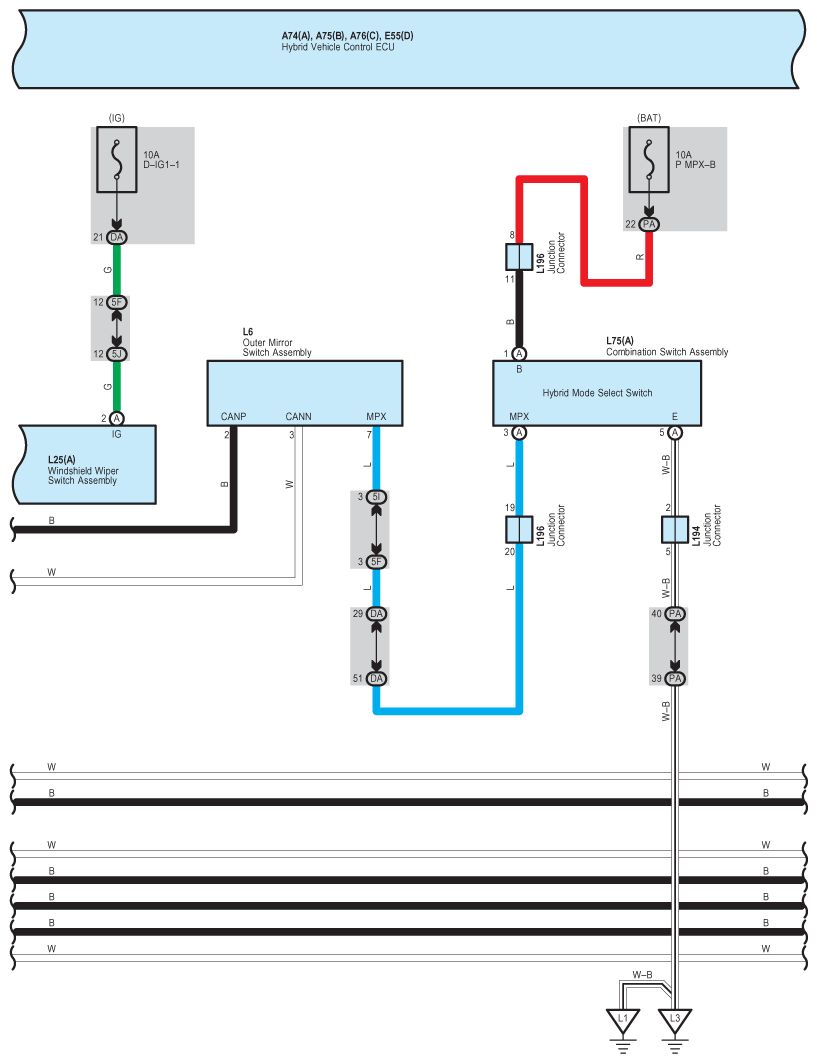

Fig 14: Dynamic Radar Cruise Control System Wiring Diagram (14 Of 22)

G09123290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

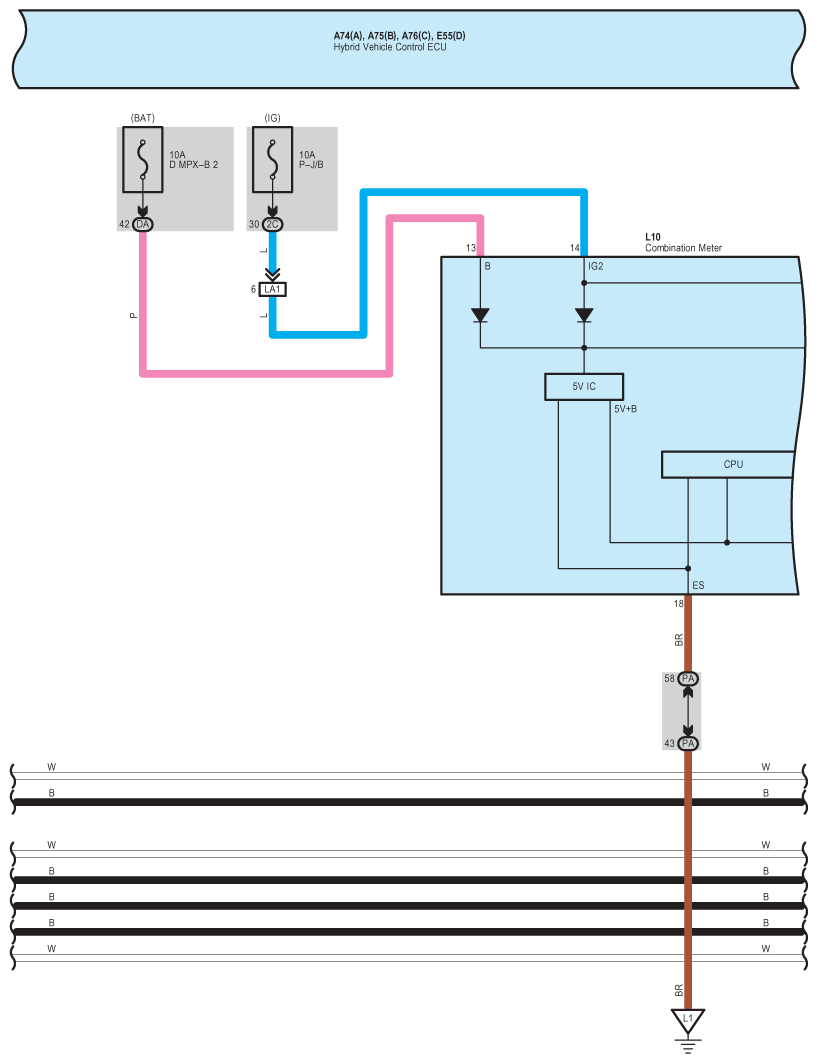

Fig 15: Dynamic Radar Cruise Control System Wiring Diagram (15 Of 22)

G09123291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

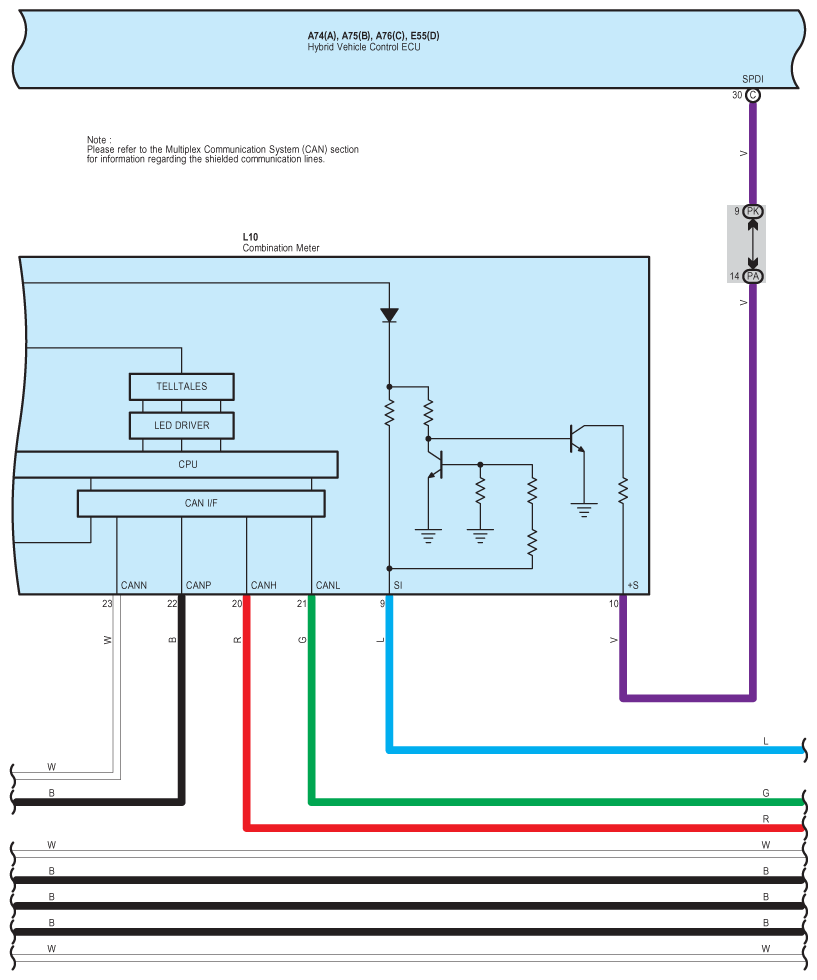

Fig 16: Dynamic Radar Cruise Control System Wiring Diagram (16 Of 22)

G09123292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Dynamic Radar Cruise Control System Wiring Diagram (17 Of 22)

G09123293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

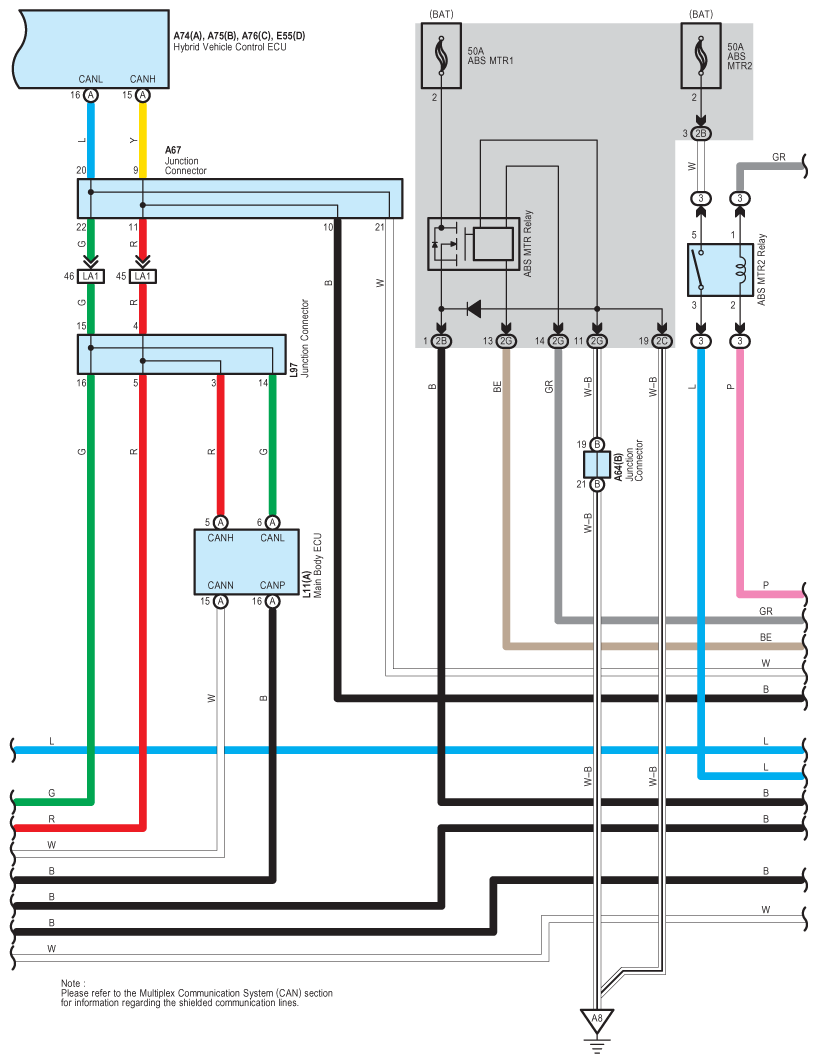

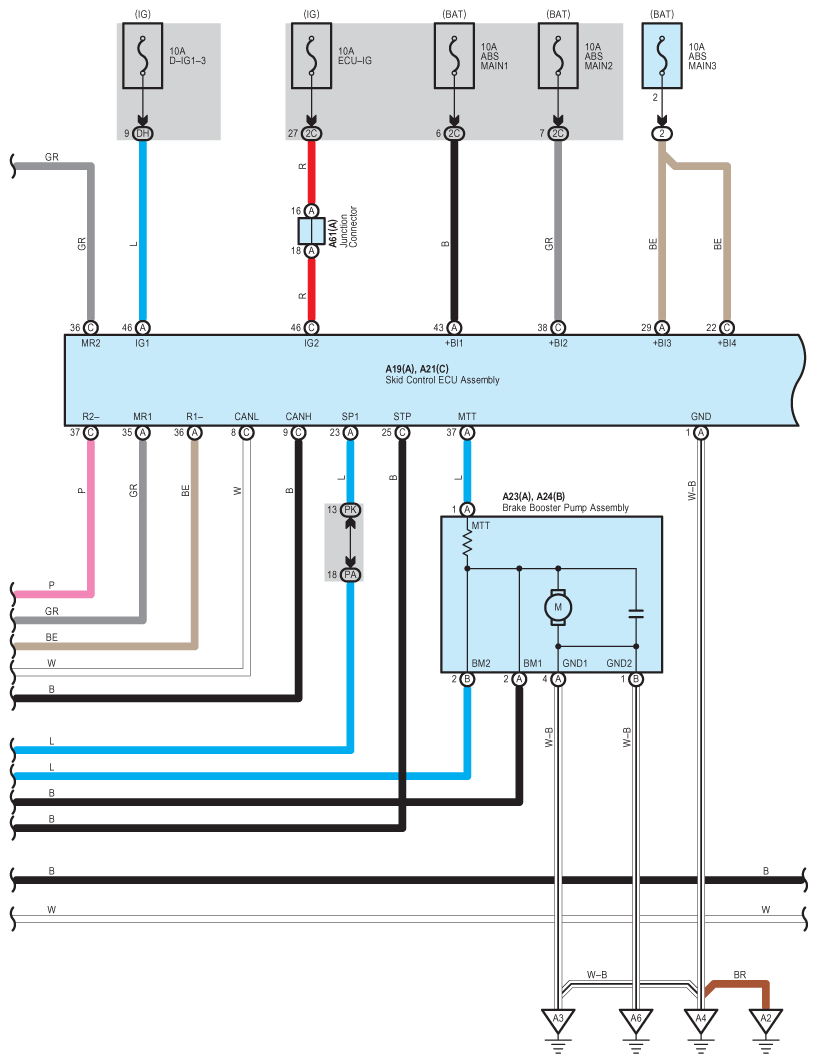

Fig 18: Dynamic Radar Cruise Control System Wiring Diagram (18 Of 22)

G09123294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

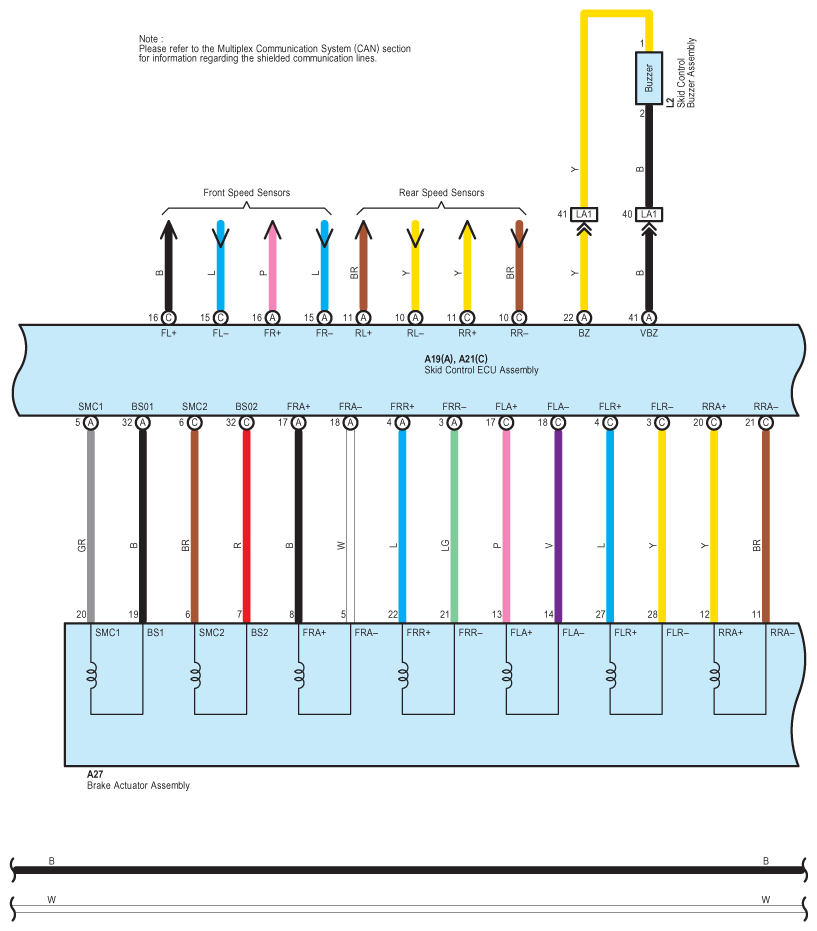

Fig 19: Dynamic Radar Cruise Control System Wiring Diagram (19 Of 22)

G09123295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

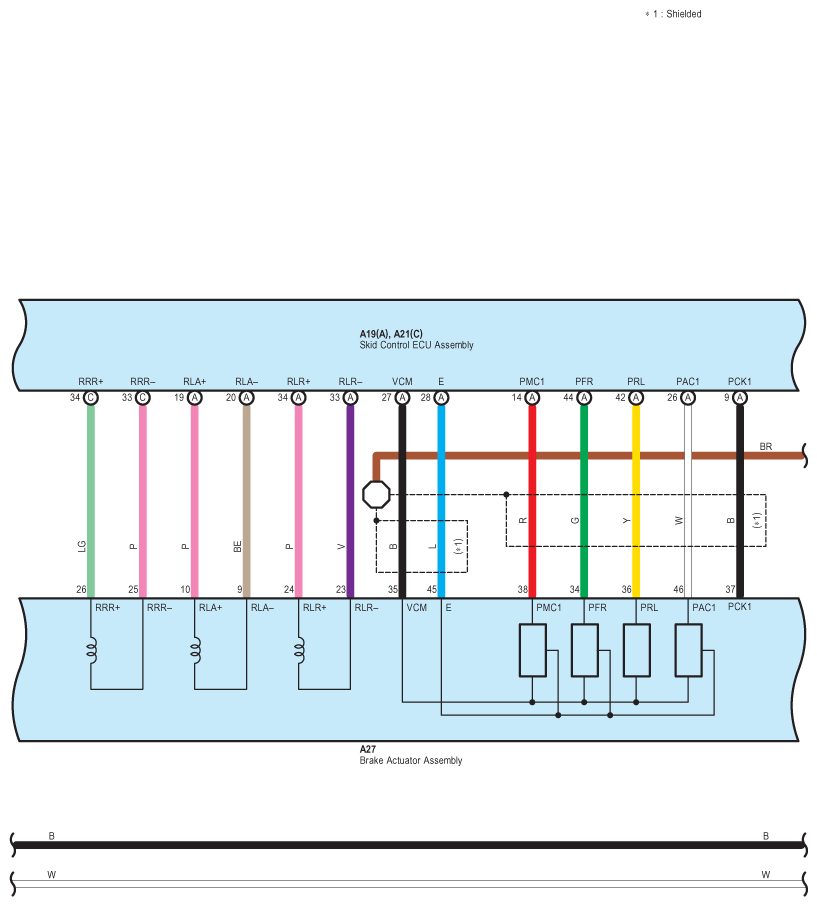

Fig 20: Dynamic Radar Cruise Control System Wiring Diagram (20 Of 22)

G09123296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

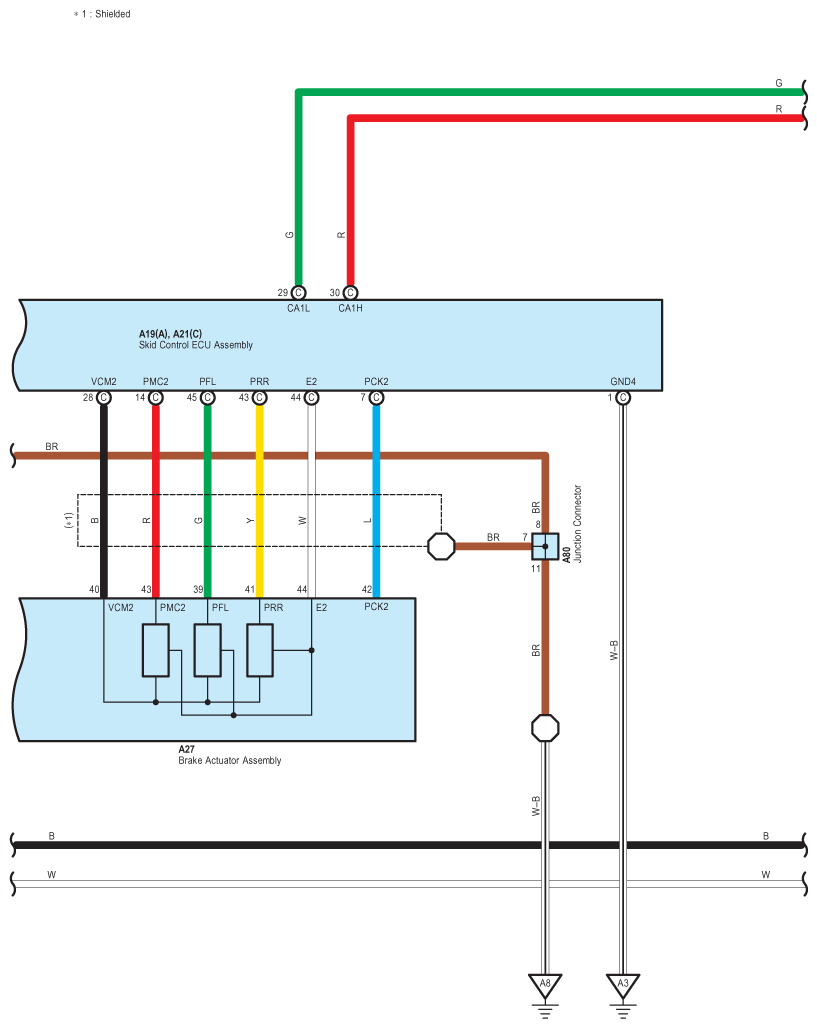

Fig 21: Dynamic Radar Cruise Control System Wiring Diagram (21 Of 22)

G09123297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

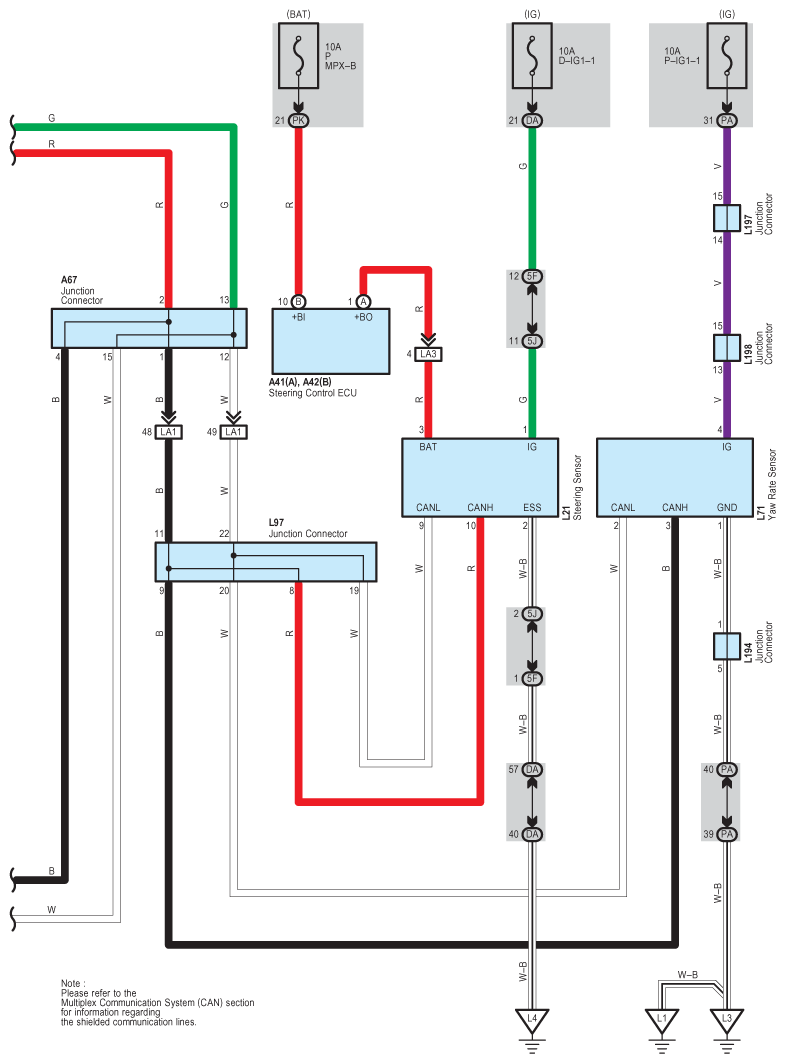

Fig 22: Dynamic Radar Cruise Control System Wiring Diagram (22 Of 22)

G09123298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
