Hybrid System and Shift Control System: Notes

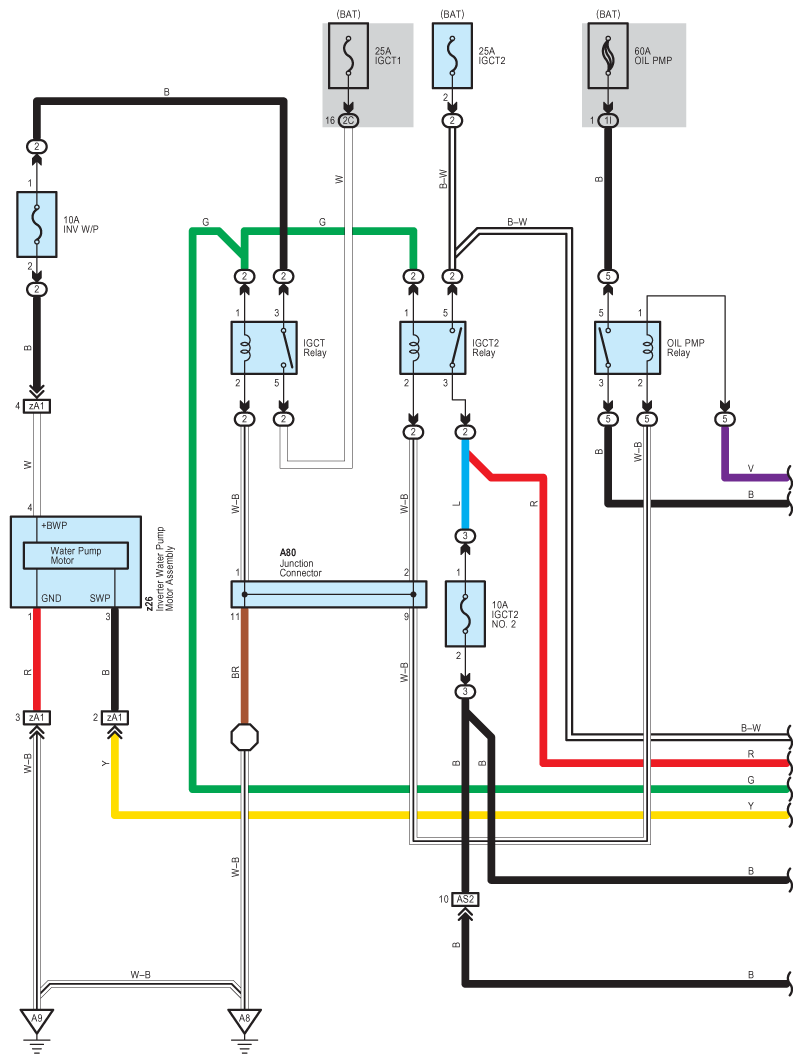

Fig 1: Hybrid And Shift Control System Wiring Diagram (1 Of 33)

G09123100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

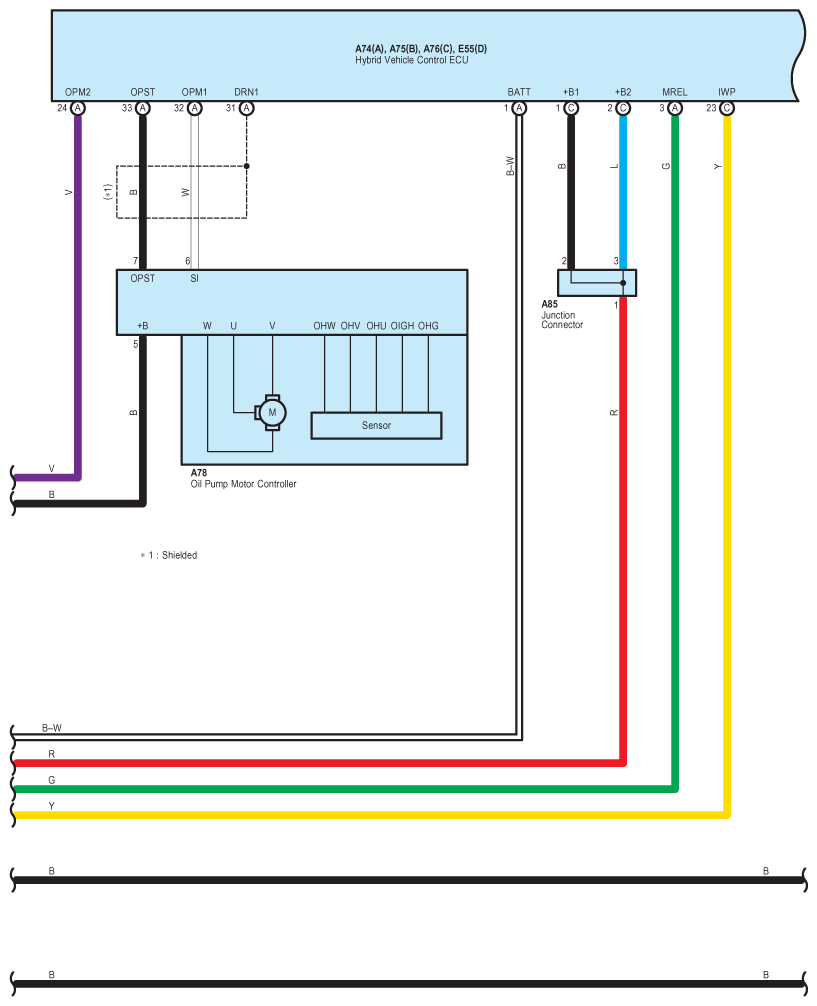

Fig 2: Hybrid And Shift Control System Wiring Diagram (2 Of 33)

G09123101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

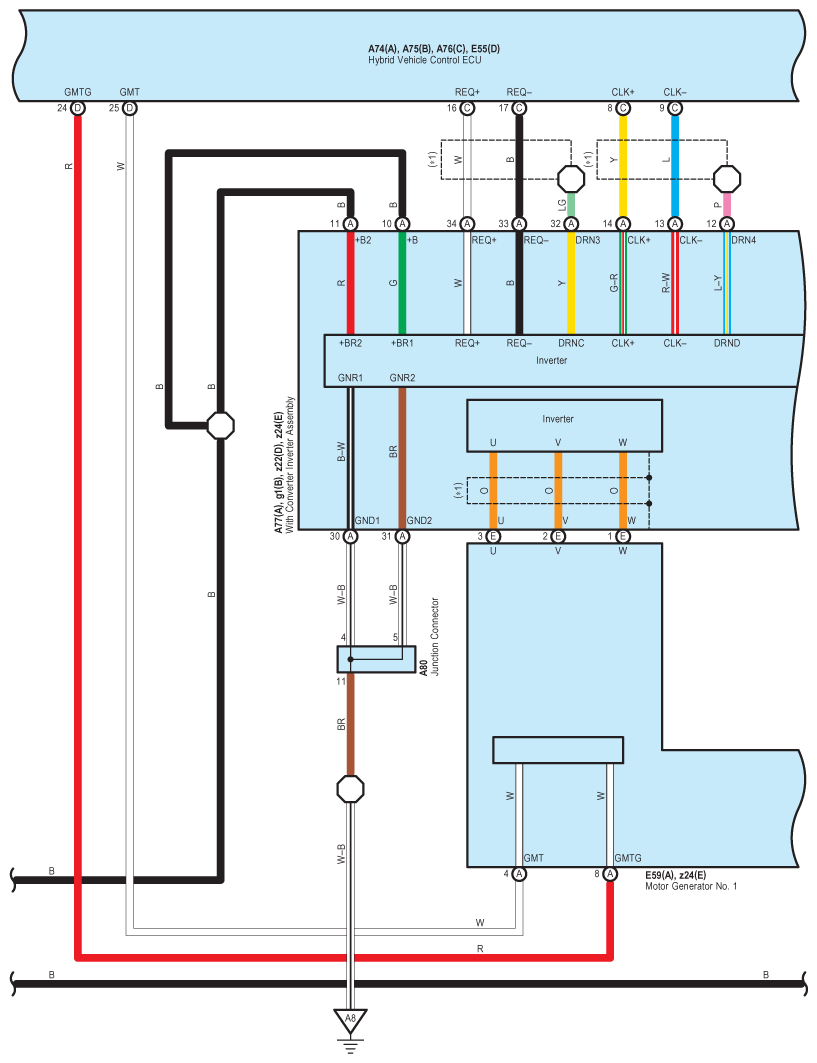

Fig 3: Hybrid And Shift Control System Wiring Diagram (3 Of 33)

G09123102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

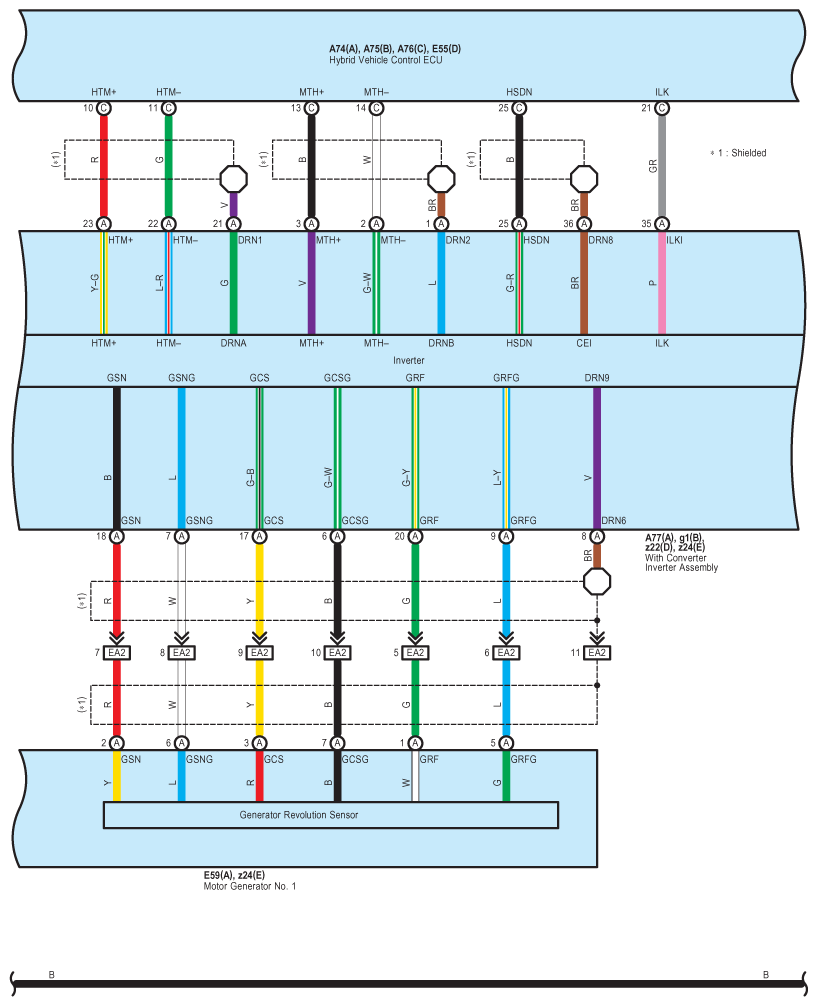

Fig 4: Hybrid And Shift Control System Wiring Diagram (4 Of 33)

G09123103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

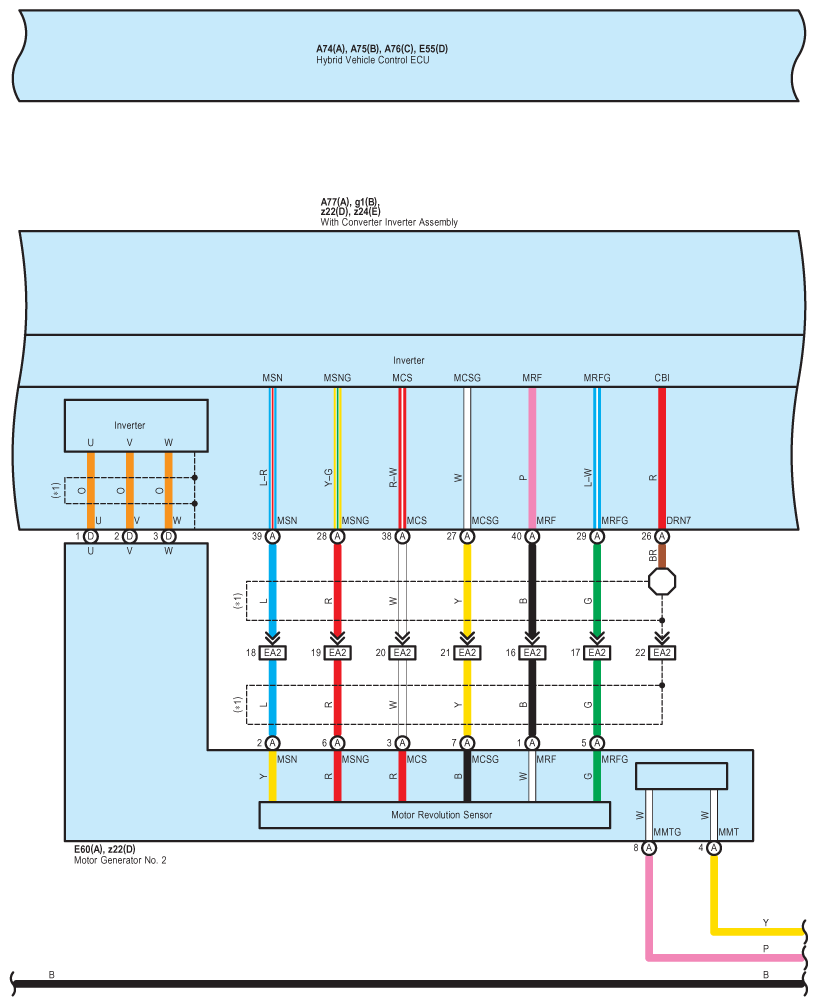

Fig 5: Hybrid And Shift Control System Wiring Diagram (5 Of 33)

G09123104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

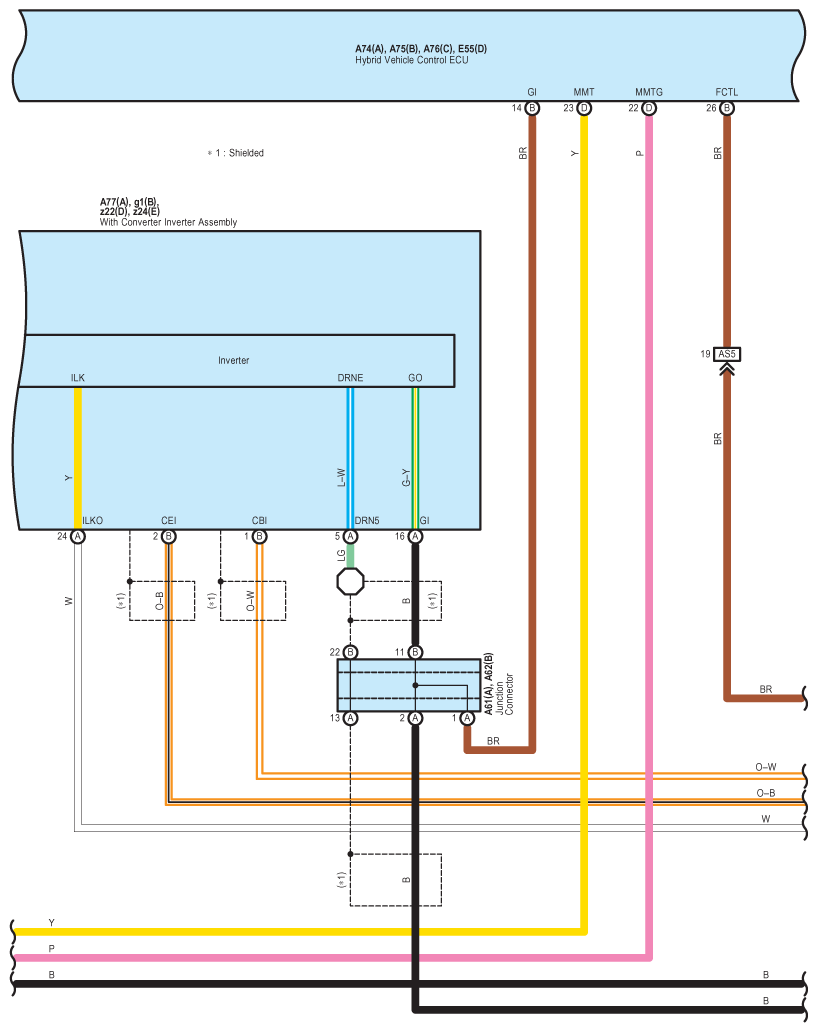

Fig 6: Hybrid And Shift Control System Wiring Diagram (6 Of 33)

G09123105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

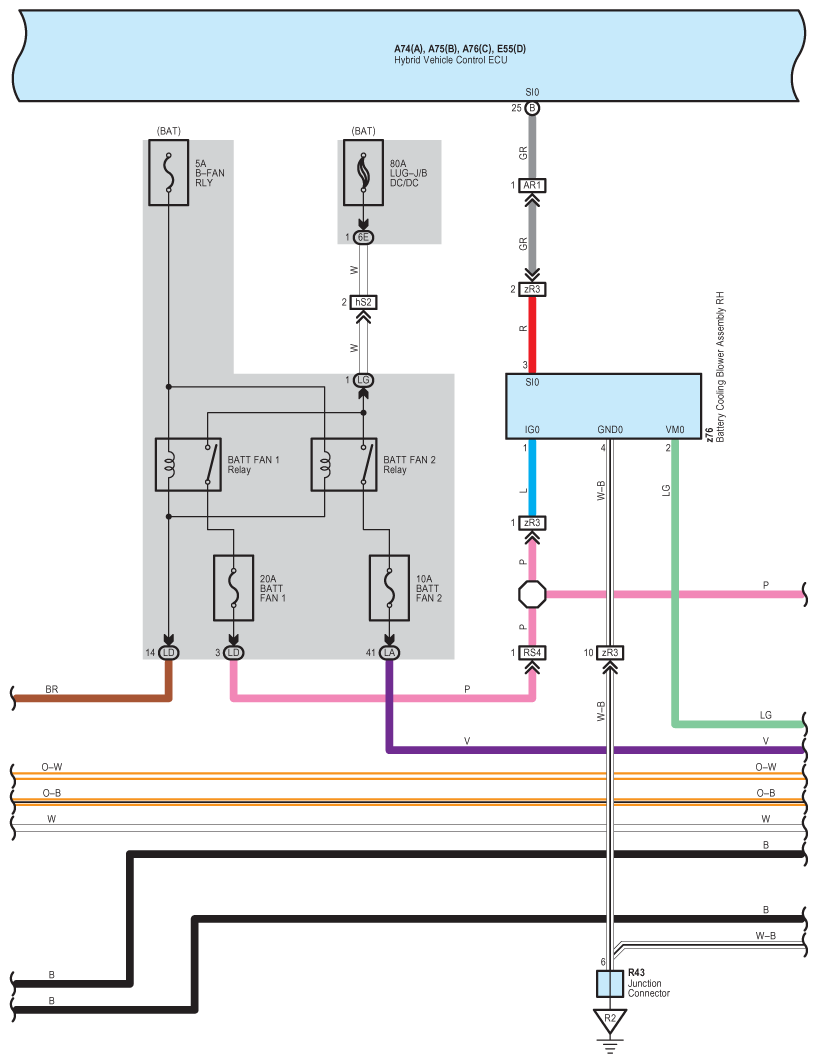

Fig 7: Hybrid And Shift Control System Wiring Diagram (7 Of 33)

G09123106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

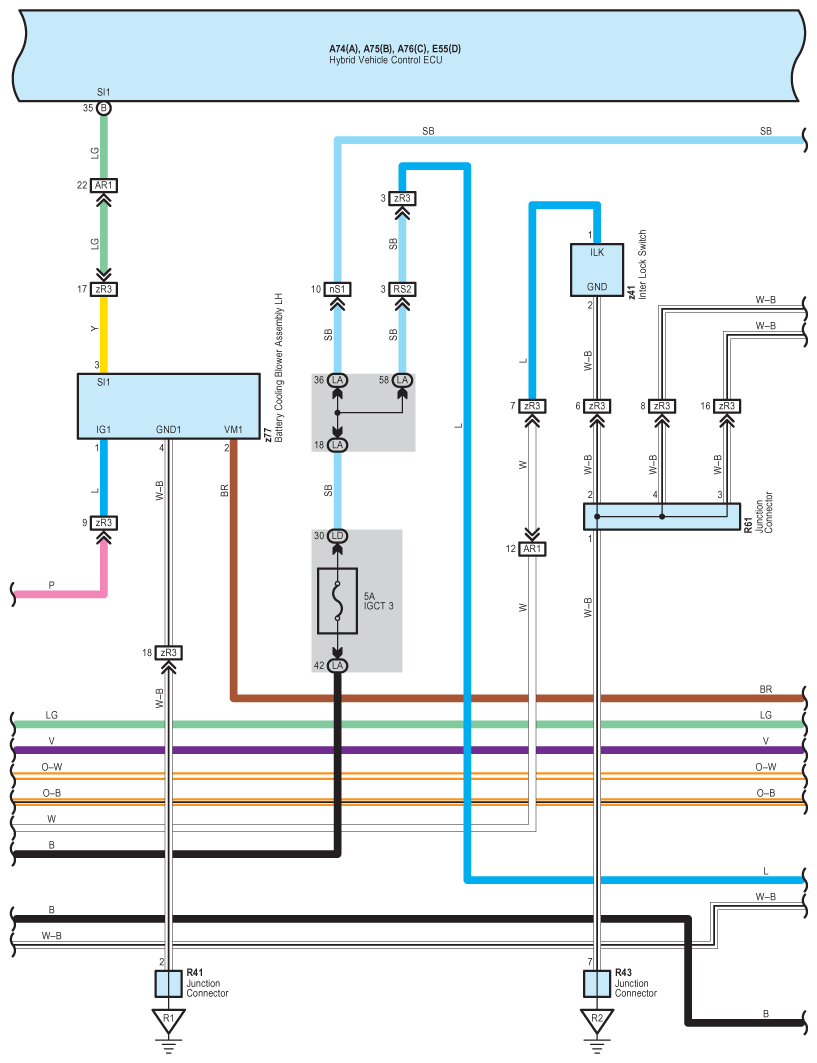

Fig 8: Hybrid And Shift Control System Wiring Diagram (8 Of 33)

G09123107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

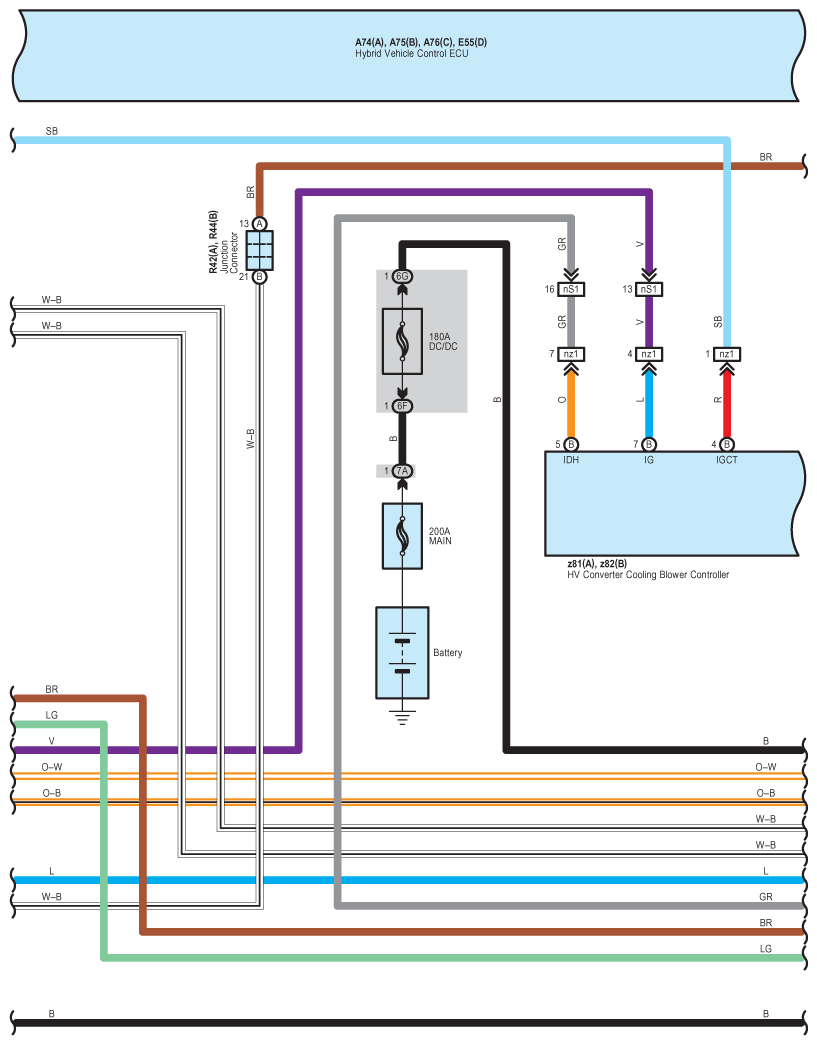

Fig 9: Hybrid And Shift Control System Wiring Diagram (9 Of 33)

G09123108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

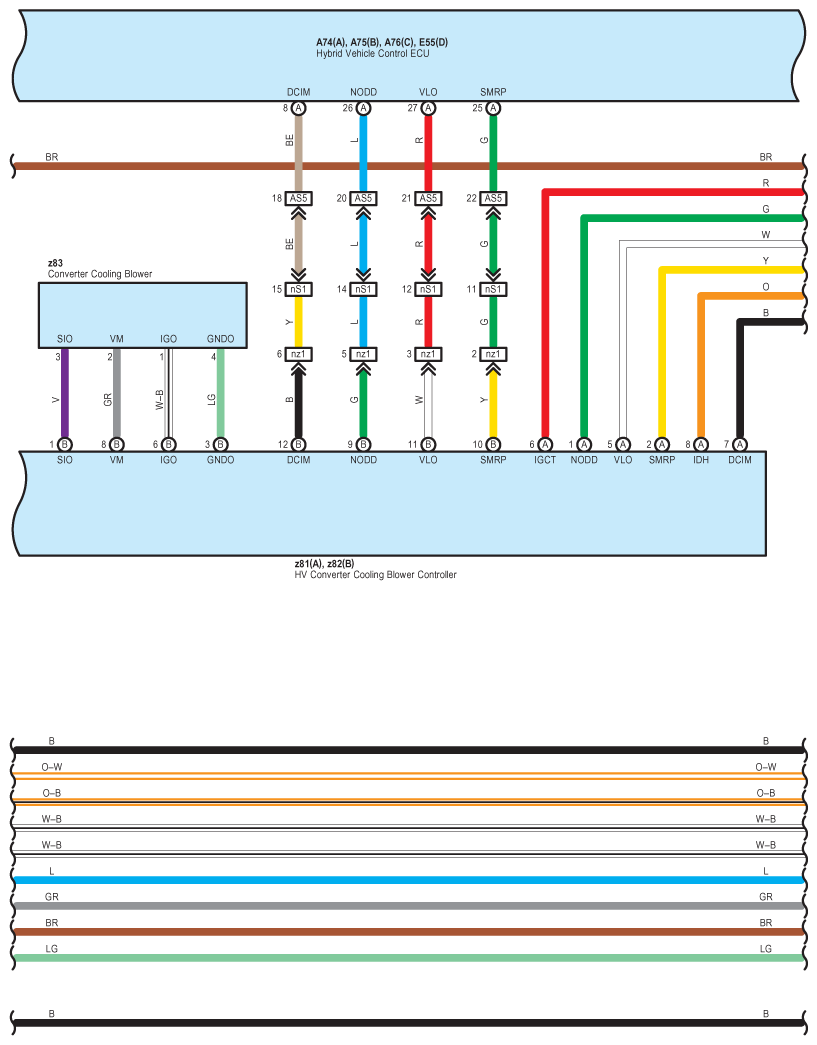

Fig 10: Hybrid And Shift Control System Wiring Diagram (10 Of 33)

G09123109

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

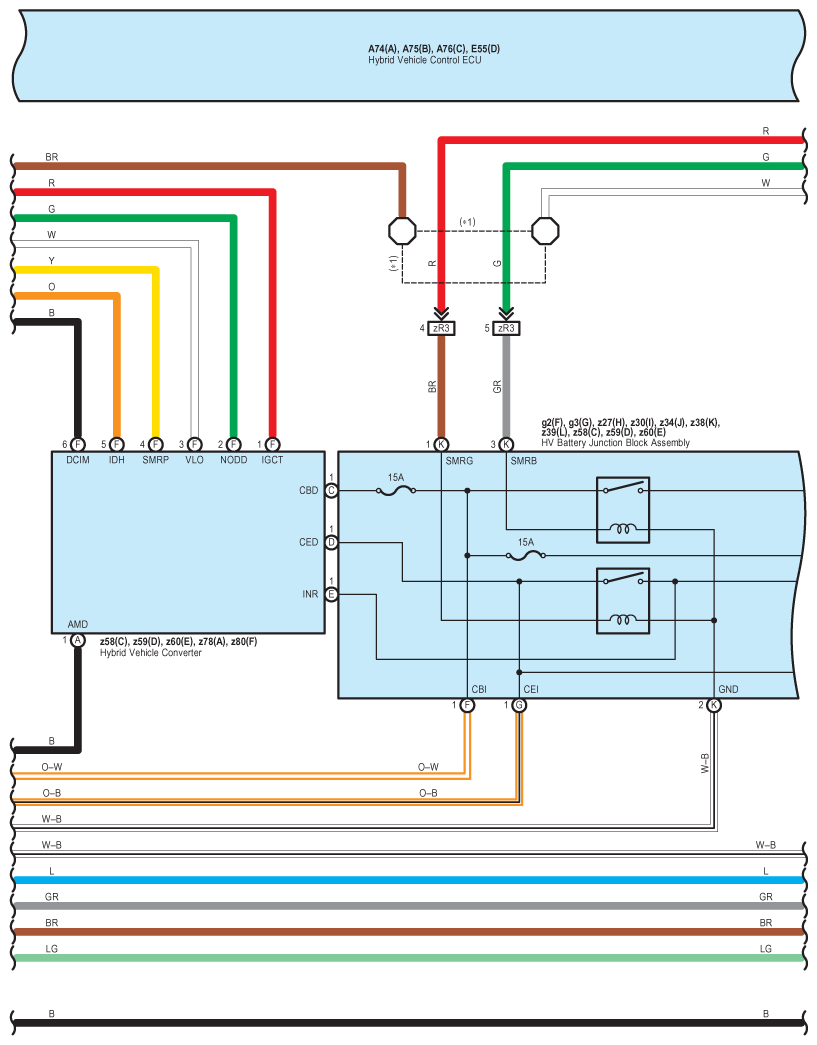

Fig 11: Hybrid And Shift Control System Wiring Diagram (11 Of 33)

G09123110

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

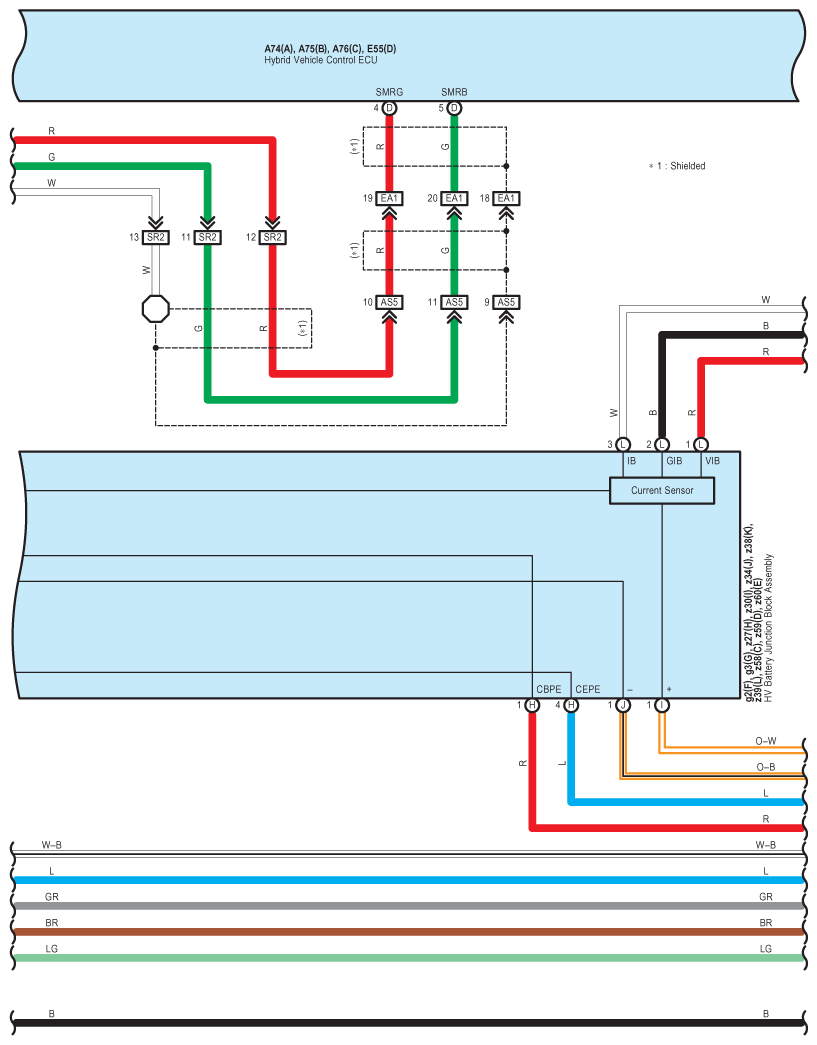

Fig 12: Hybrid And Shift Control System Wiring Diagram (12 Of 33)

G09123111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

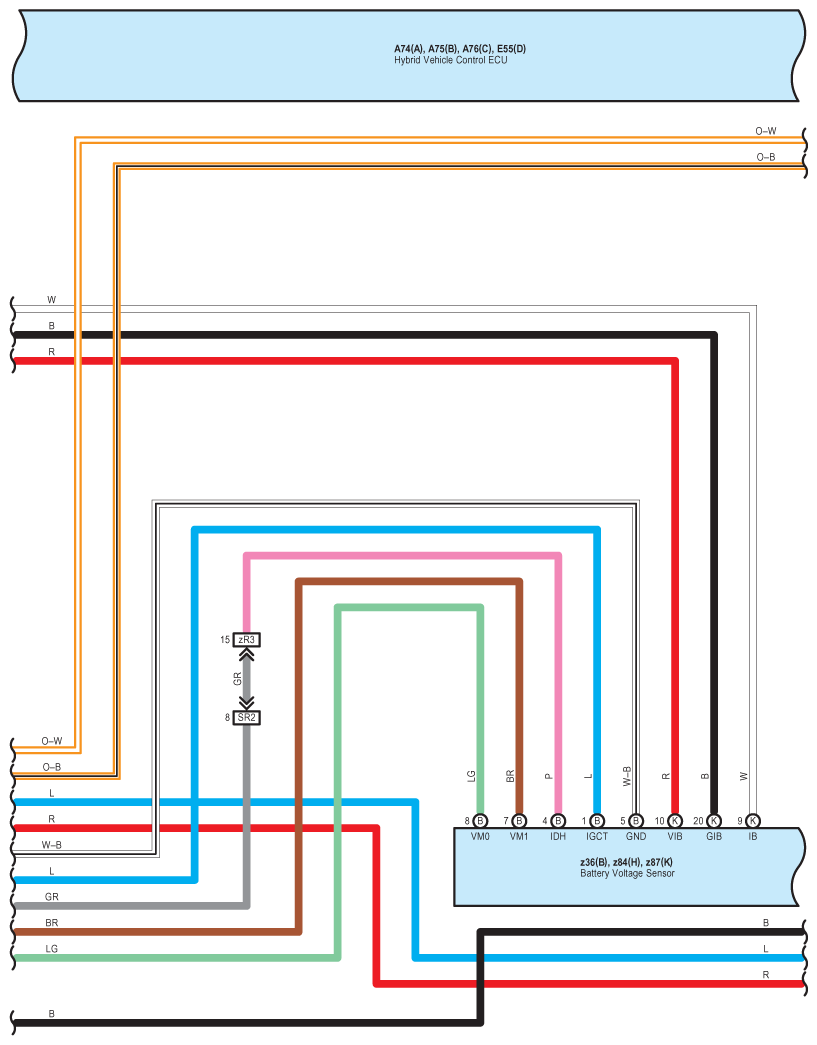

Fig 13: Hybrid And Shift Control System Wiring Diagram (13 Of 33)

G09123112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

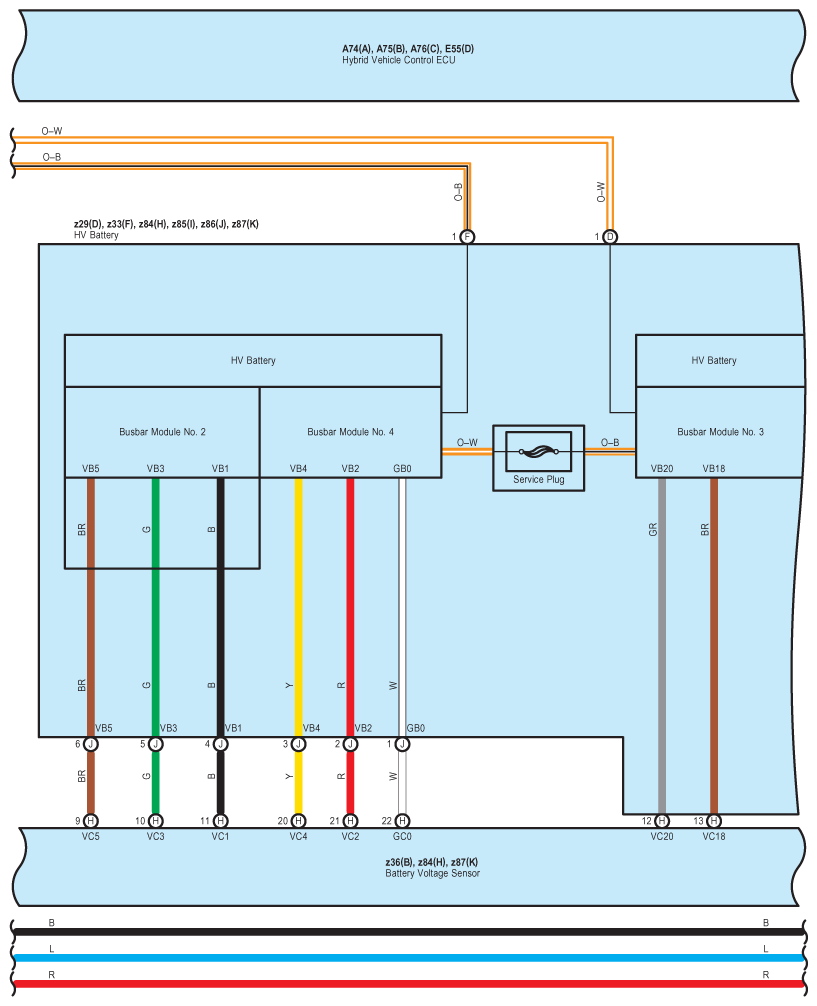

Fig 14: Hybrid And Shift Control System Wiring Diagram (14 Of 33)

G09123113

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

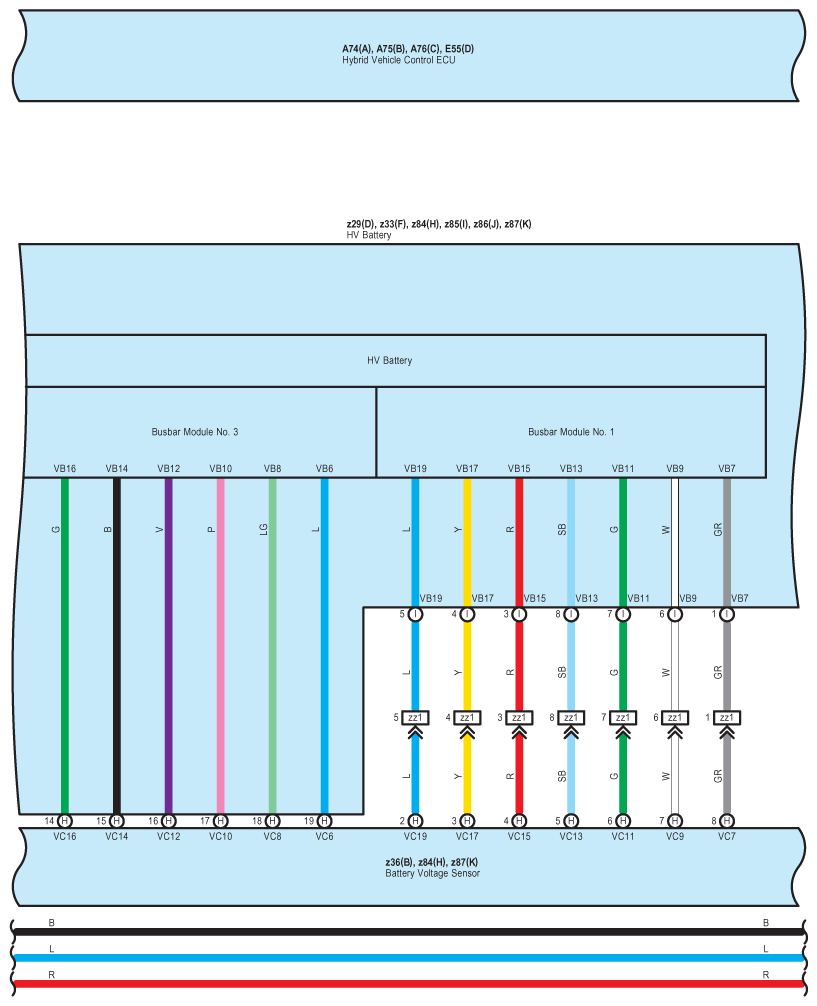

Fig 15: Hybrid And Shift Control System Wiring Diagram (15 Of 33)

G09123114

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

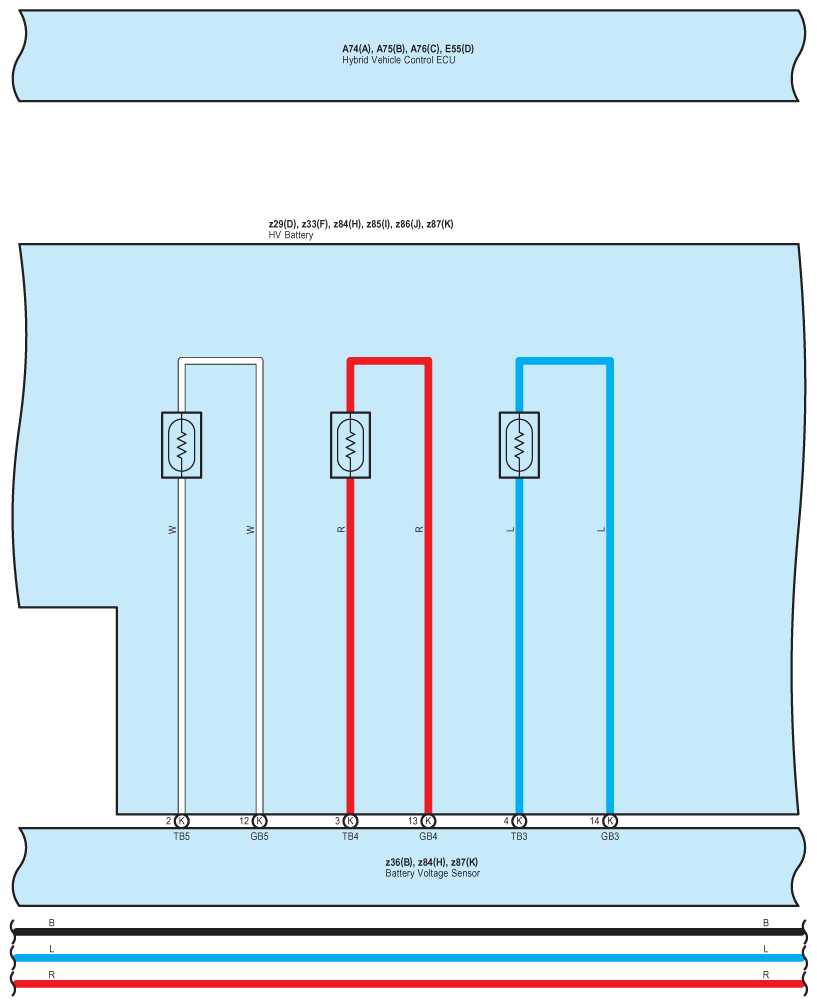

Fig 16: Hybrid And Shift Control System Wiring Diagram (16 Of 33)

G09123115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

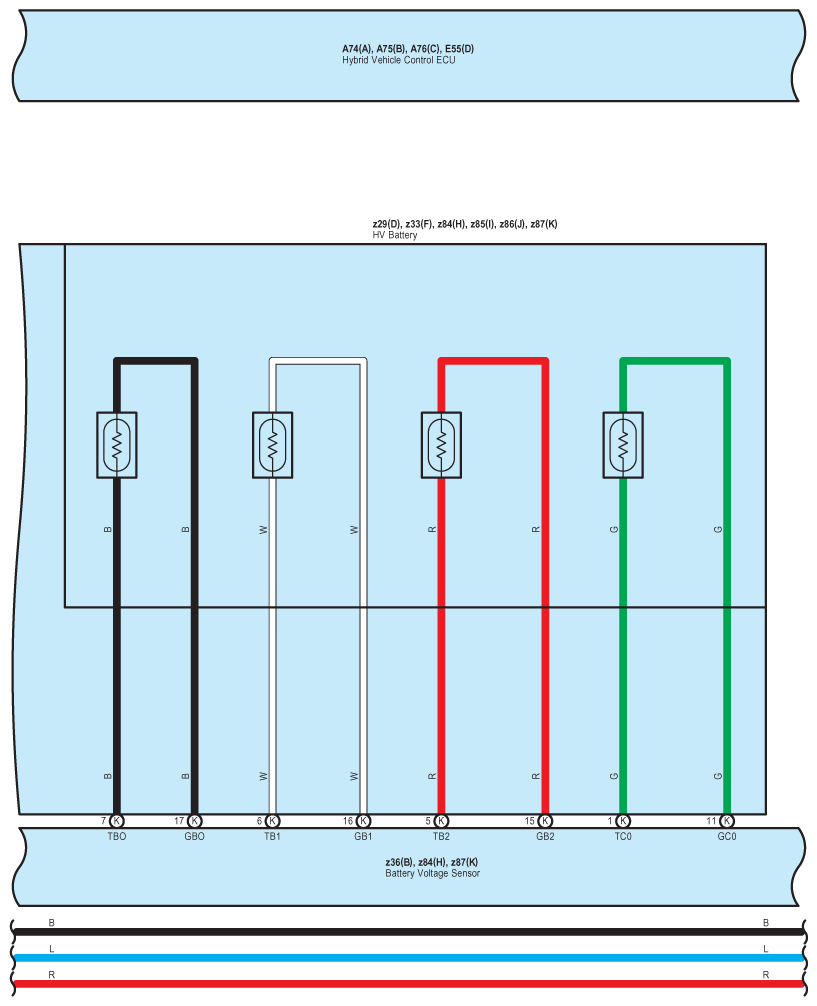

Fig 17: Hybrid And Shift Control System Wiring Diagram (17 Of 33)

G09123116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

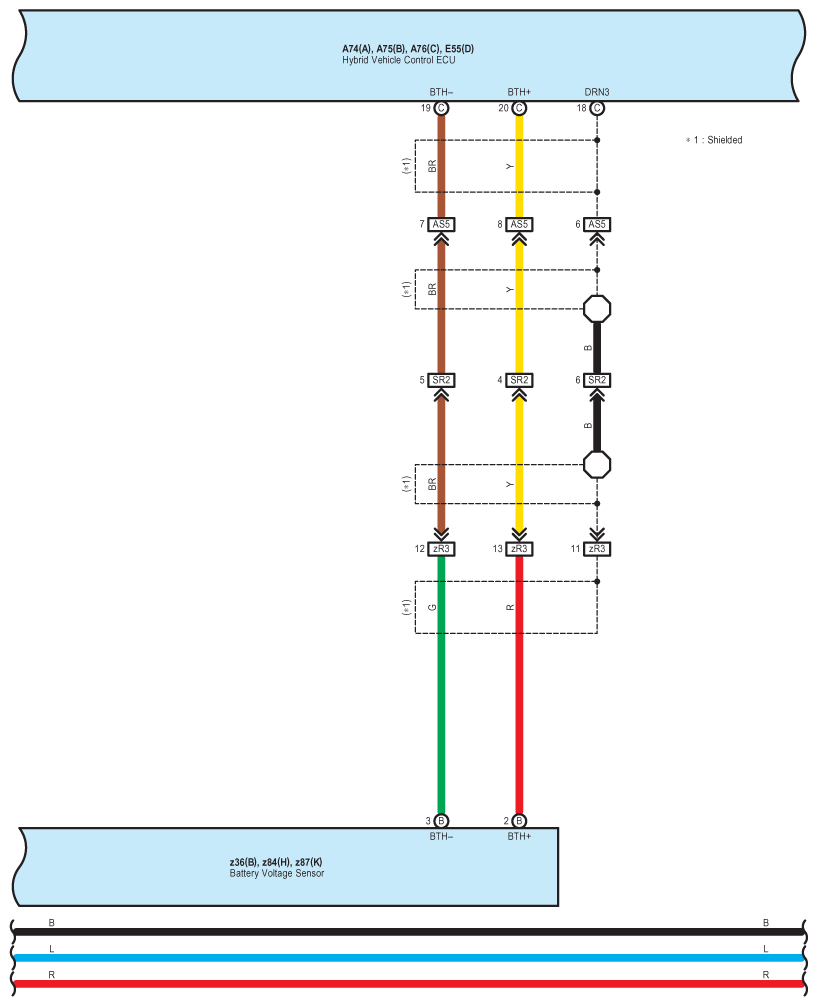

Fig 18: Hybrid And Shift Control System Wiring Diagram (18 Of 33)

G09123117

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

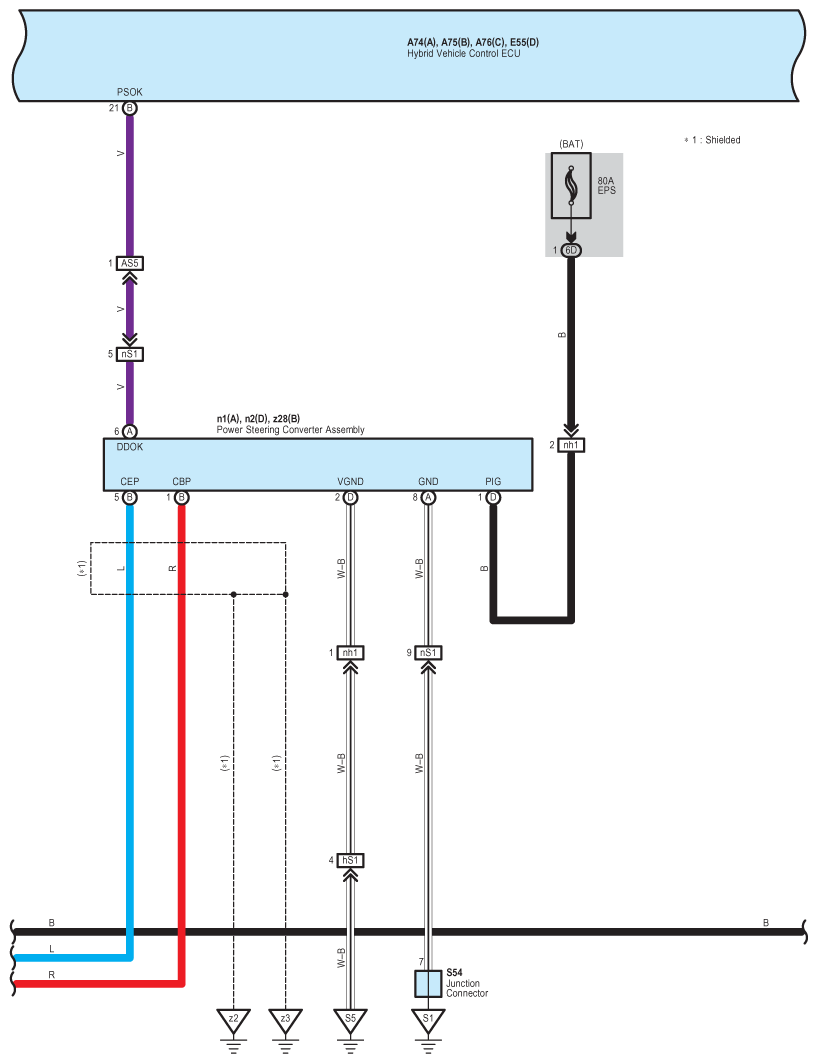

Fig 19: Hybrid And Shift Control System Wiring Diagram (19 Of 33)

G09123118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

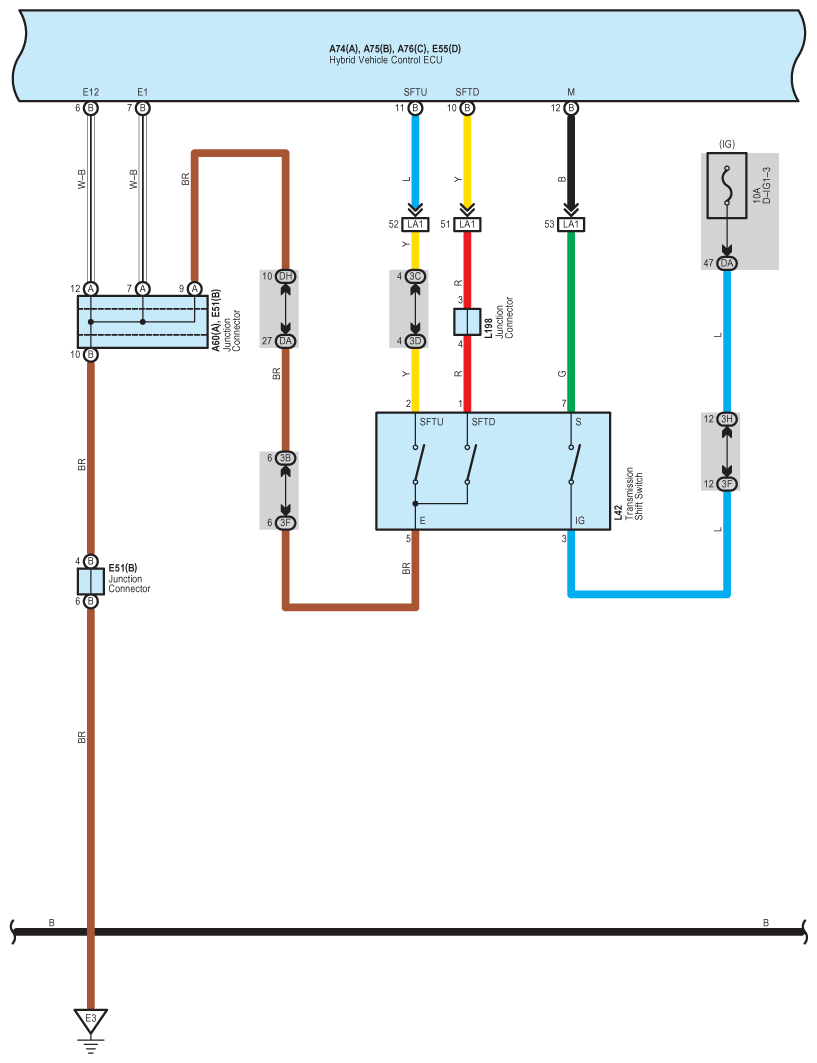

Fig 20: Hybrid And Shift Control System Wiring Diagram (20 Of 33)

G09123119

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

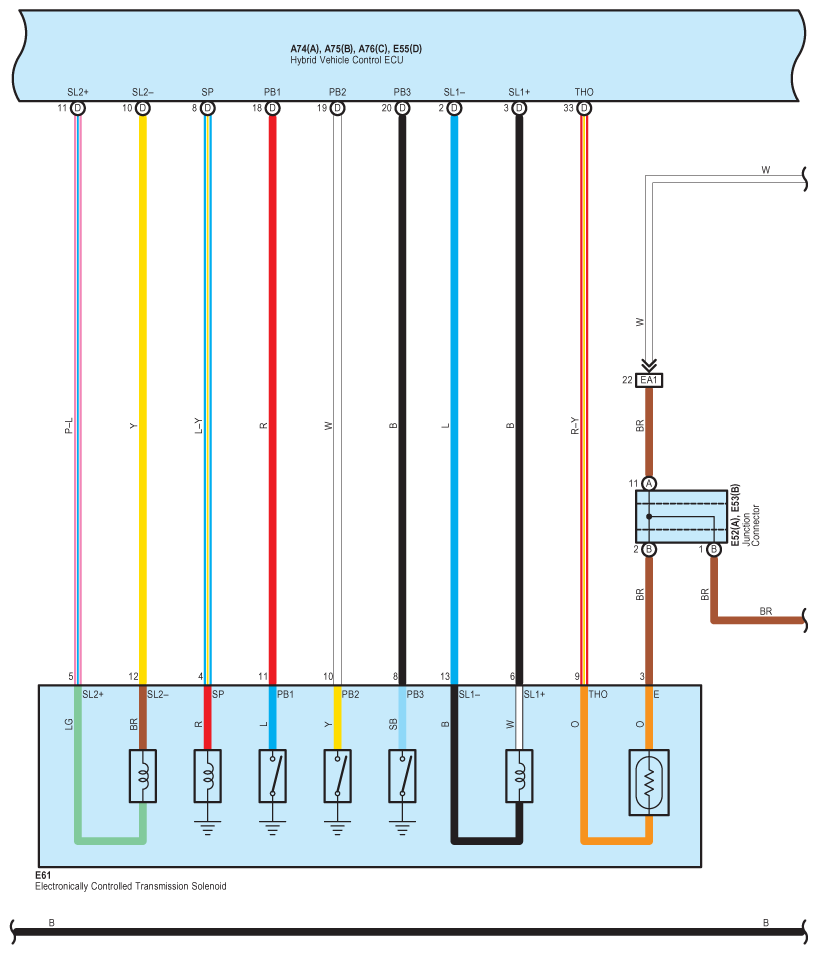

Fig 21: Hybrid And Shift Control System Wiring Diagram (21 Of 33)

G09123120

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

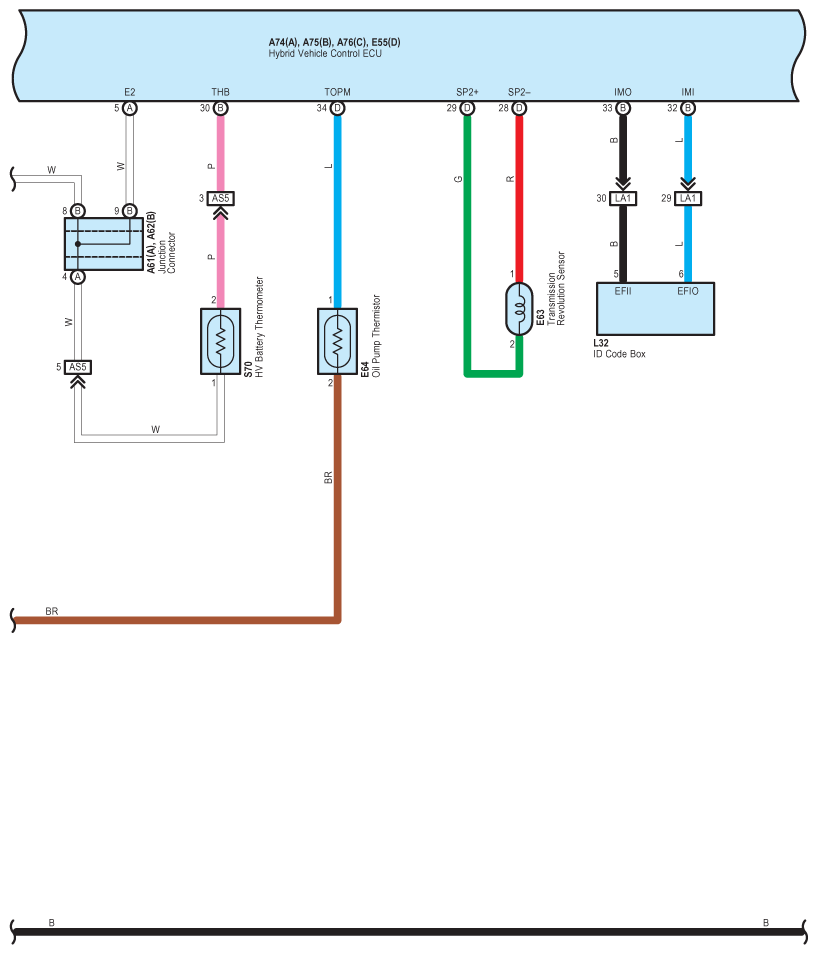

Fig 22: Hybrid And Shift Control System Wiring Diagram (22 Of 33)

G09123121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

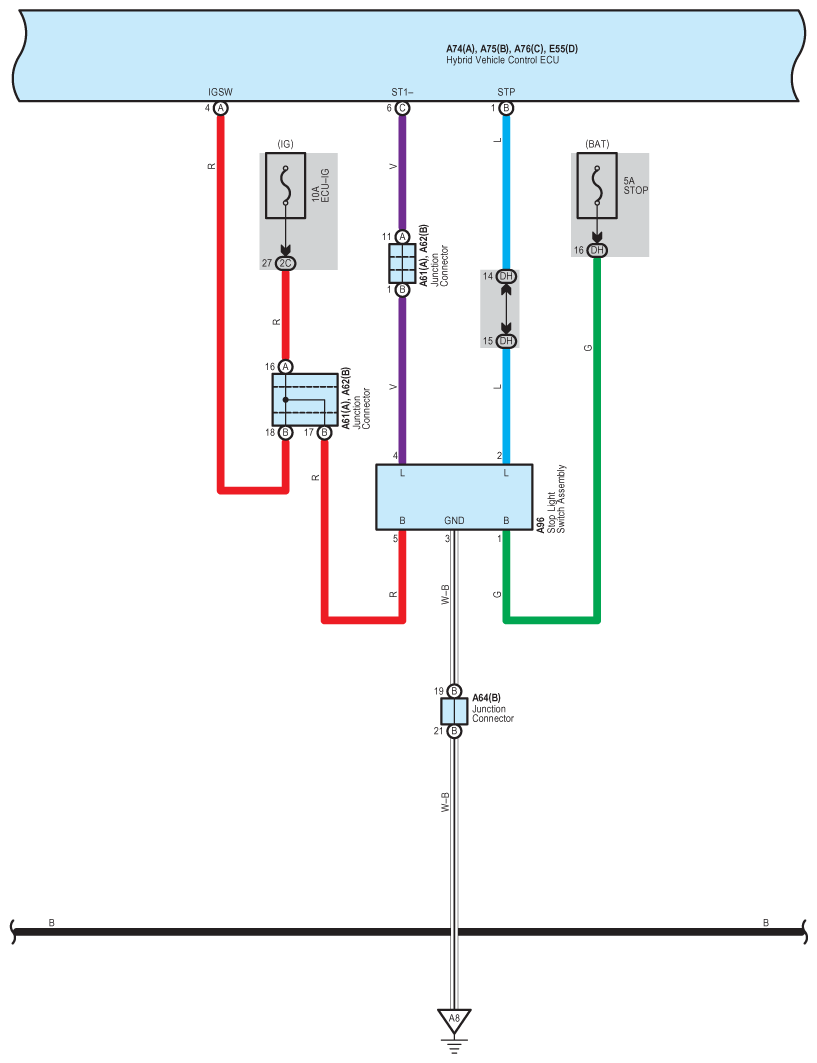

Fig 23: Hybrid And Shift Control System Wiring Diagram (23 Of 33)

G09123122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

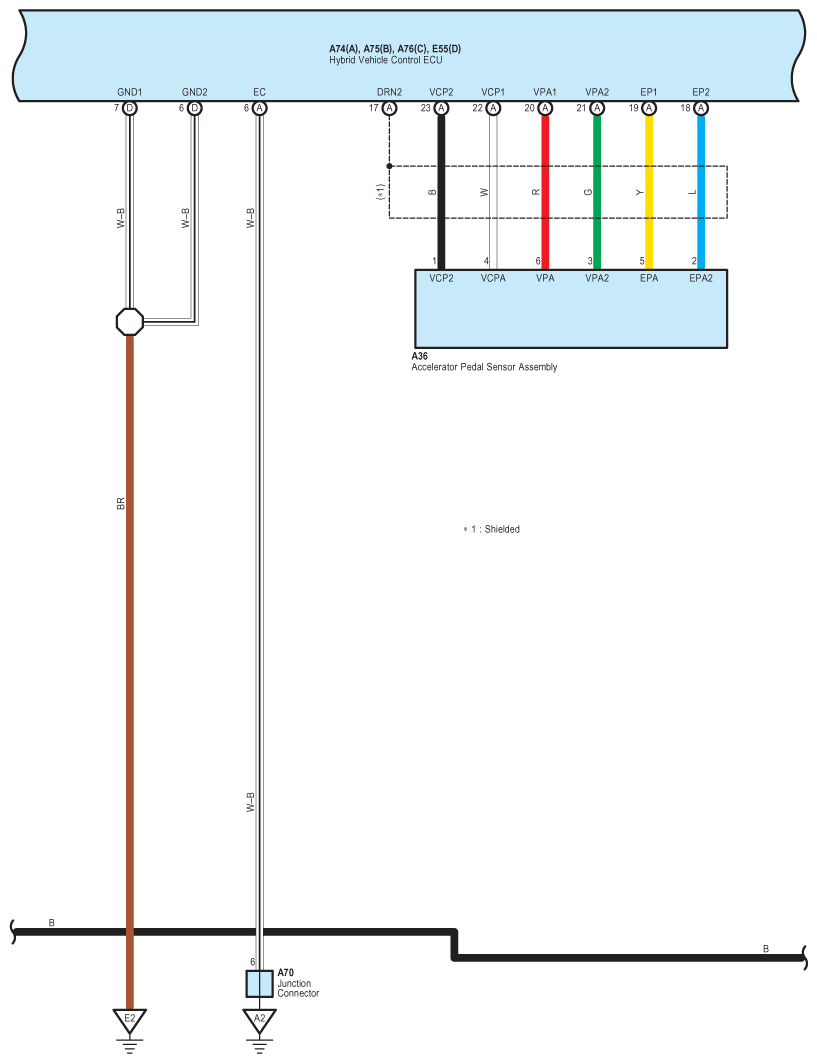

Fig 24: Hybrid And Shift Control System Wiring Diagram (24 Of 33)

G09123123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

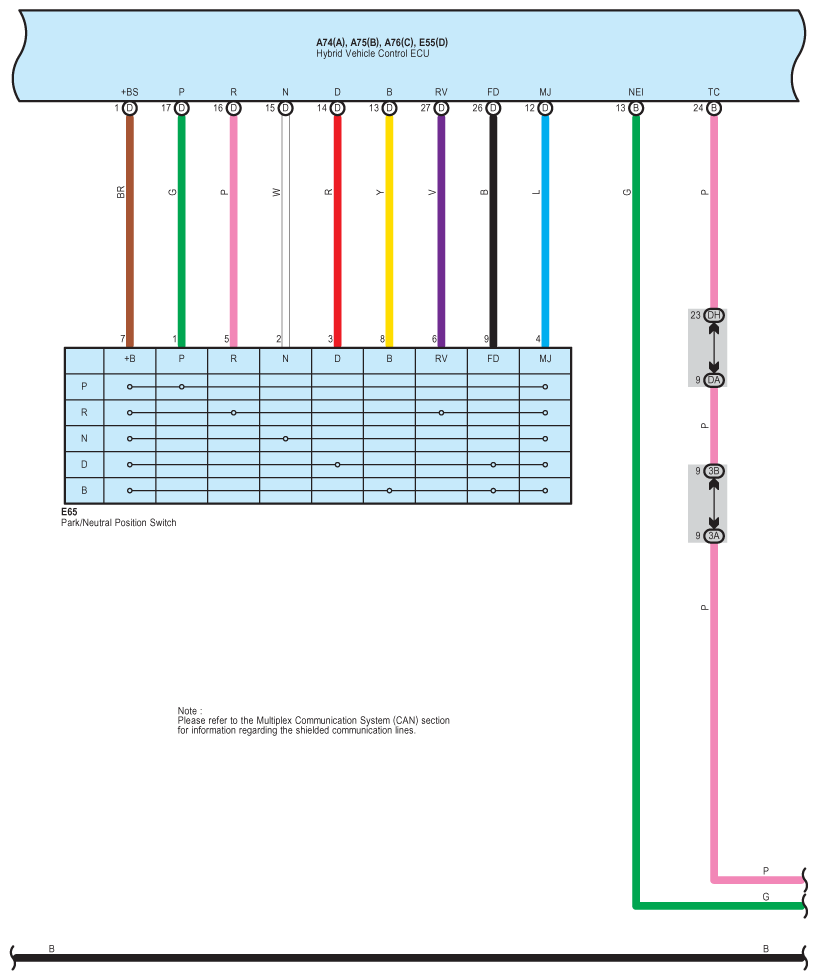

Fig 25: Hybrid And Shift Control System Wiring Diagram (25 Of 33)

G09123124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

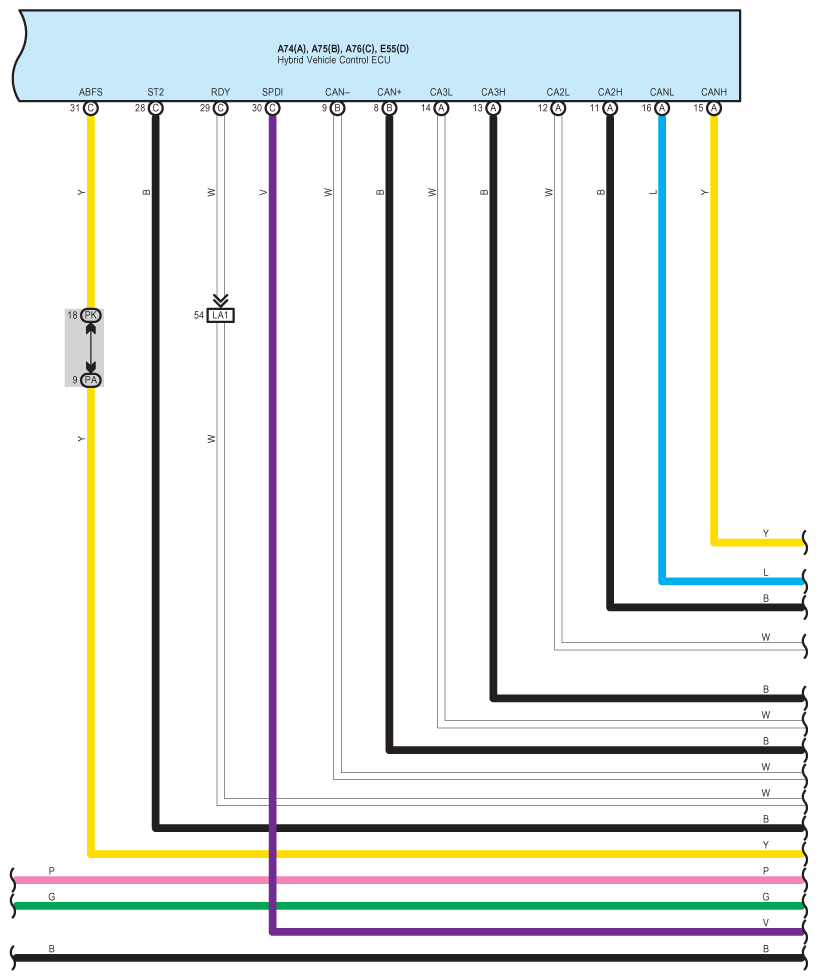

Fig 26: Hybrid And Shift Control System Wiring Diagram (26 Of 33)

G09123125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

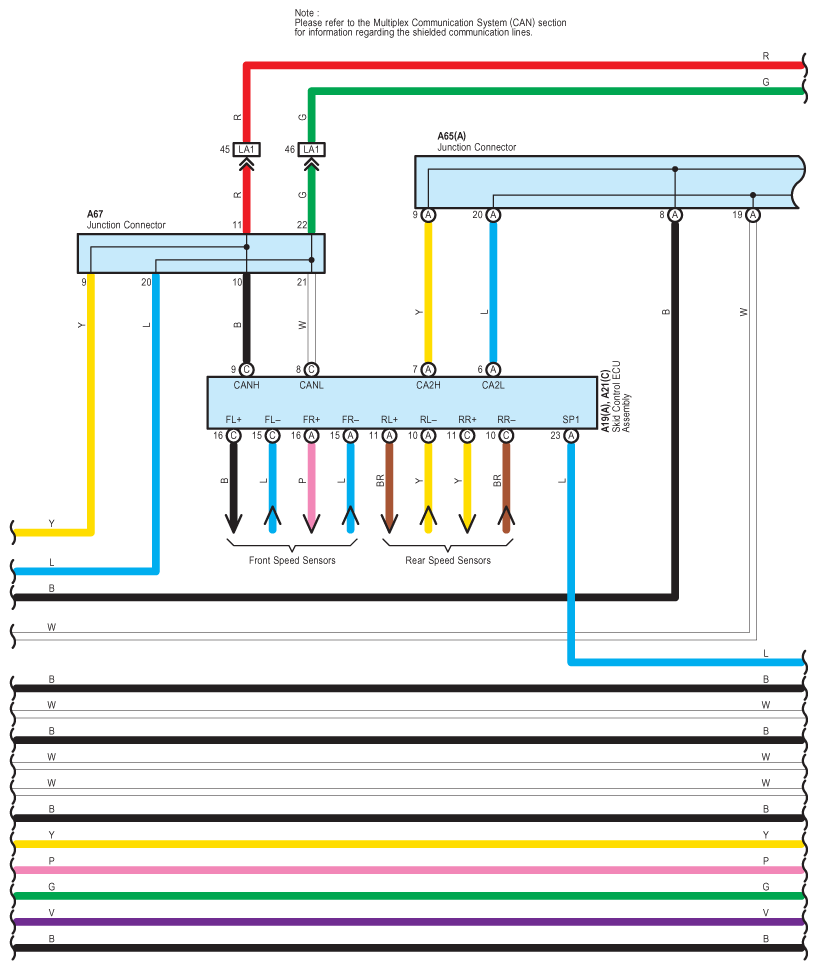

Fig 27: Hybrid And Shift Control System Wiring Diagram (27 Of 33)

G09123126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

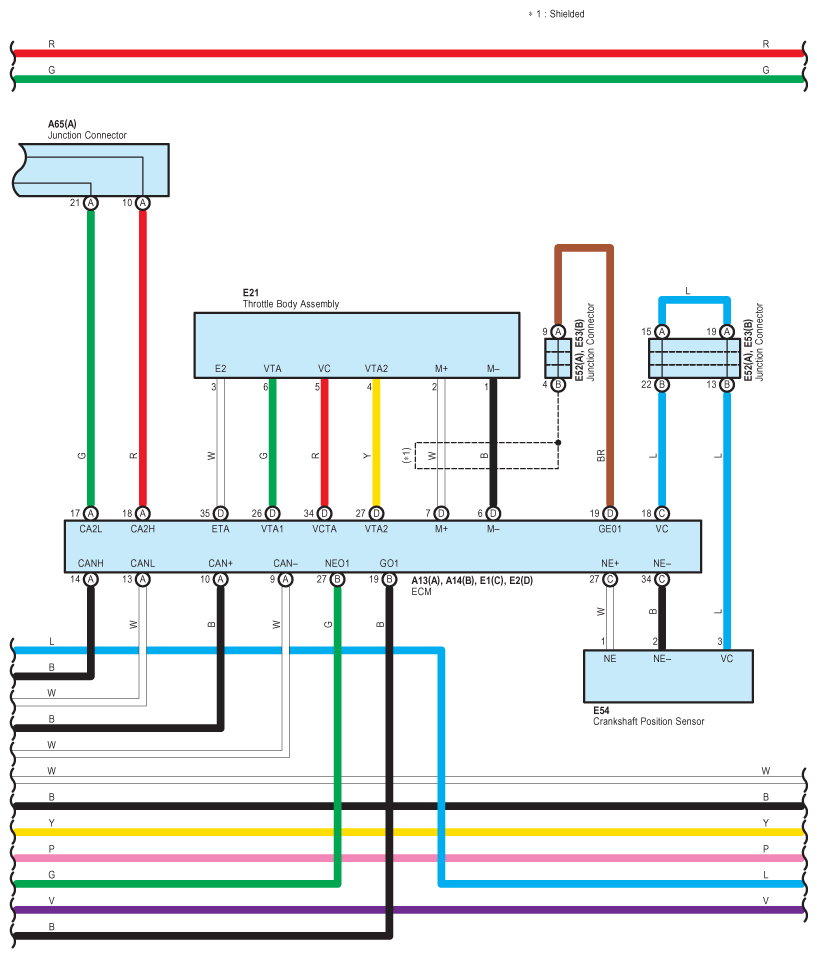

Fig 28: Hybrid And Shift Control System Wiring Diagram (28 Of 33)

G09123127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

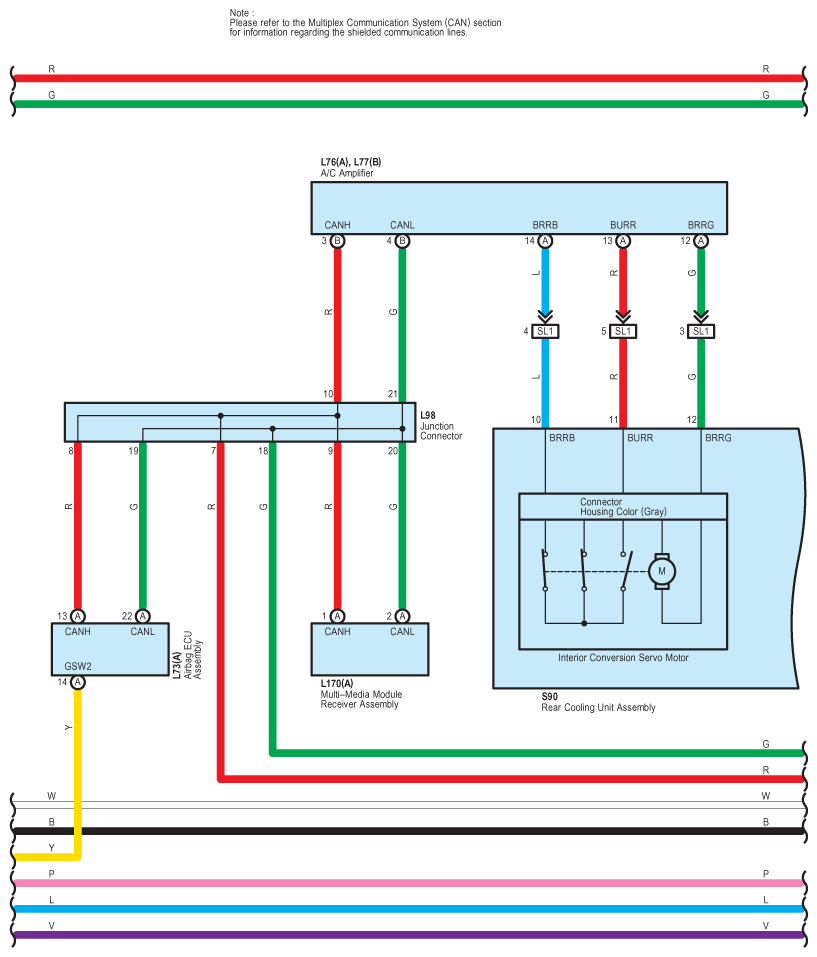

Fig 29: Hybrid And Shift Control System Wiring Diagram (29 Of 33)

G09123128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

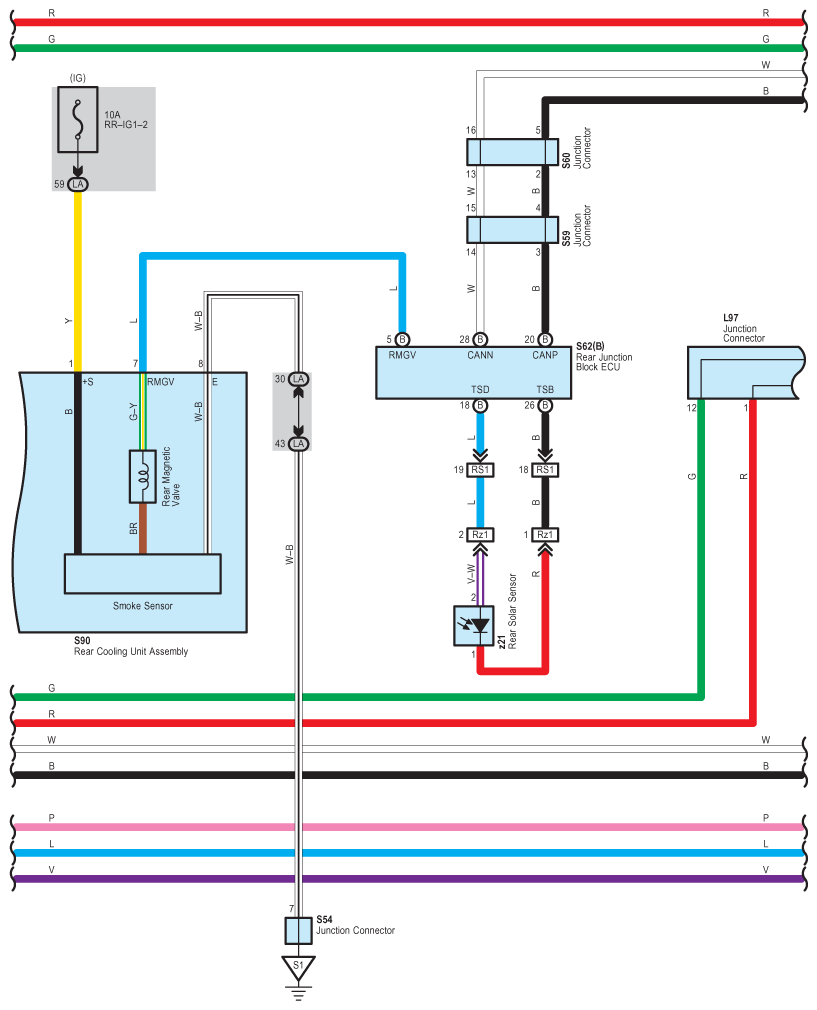

Fig 30: Hybrid And Shift Control System Wiring Diagram (30 Of 33)

G09123129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

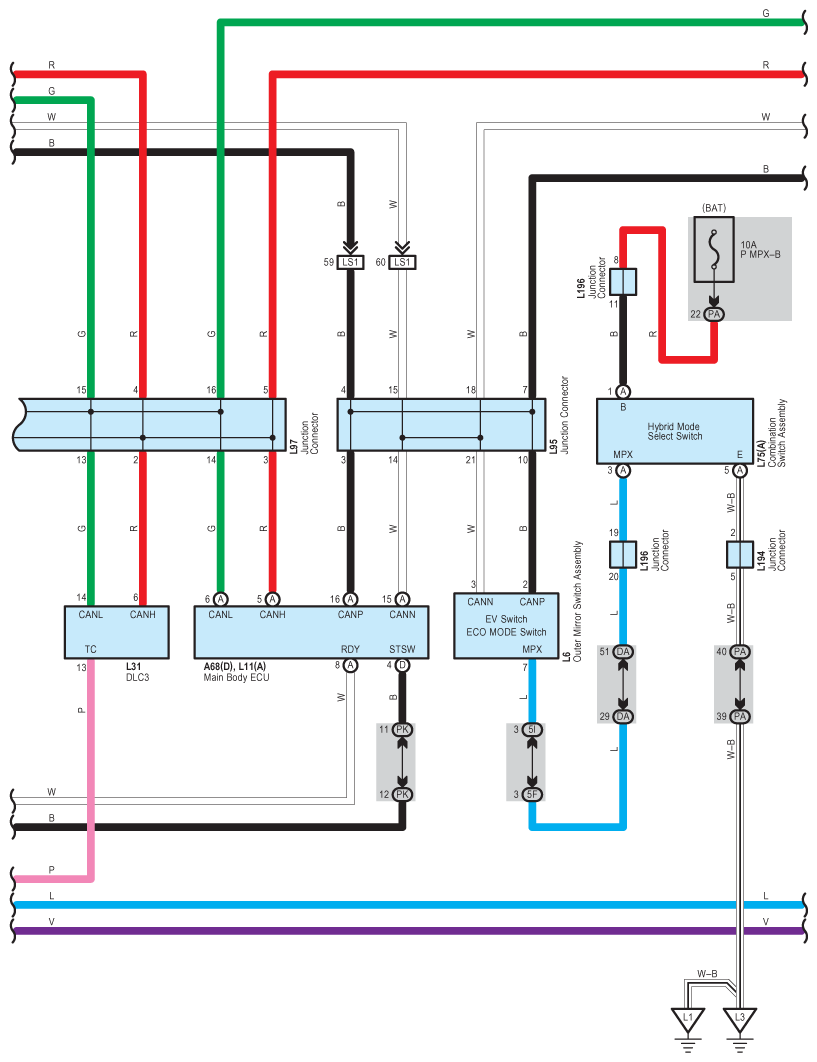

Fig 31: Hybrid And Shift Control System Wiring Diagram (31 Of 33)

G09123130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

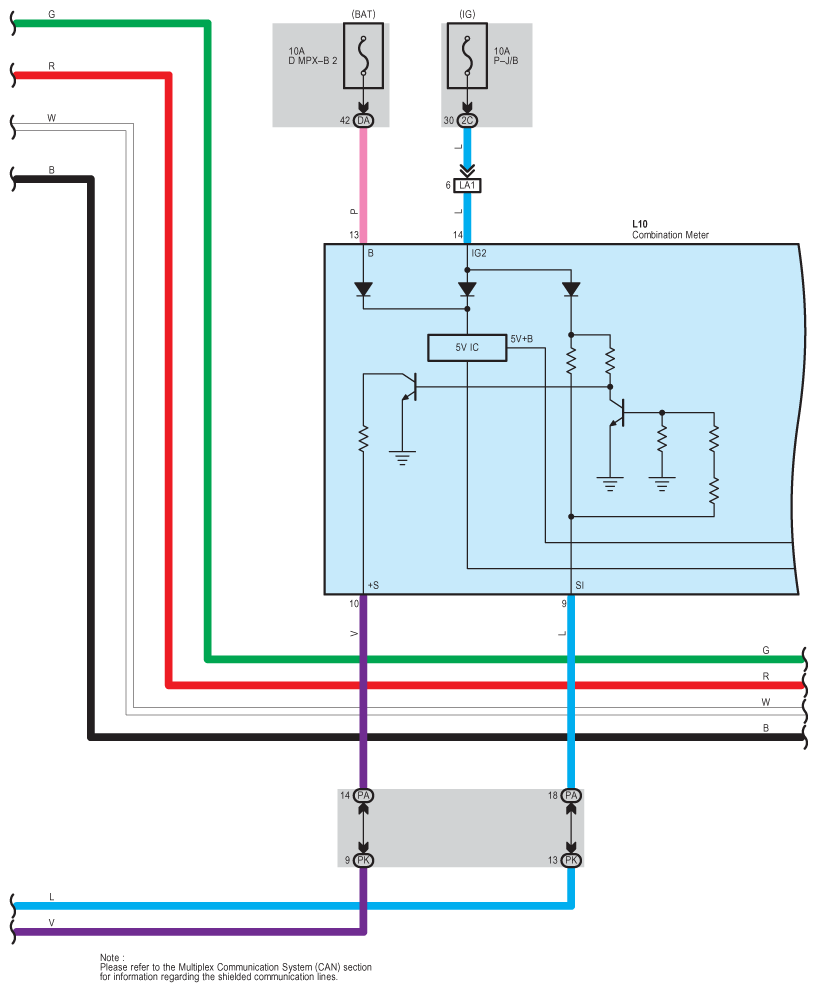

Fig 32: Hybrid And Shift Control System Wiring Diagram (32 Of 33)

G09123131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

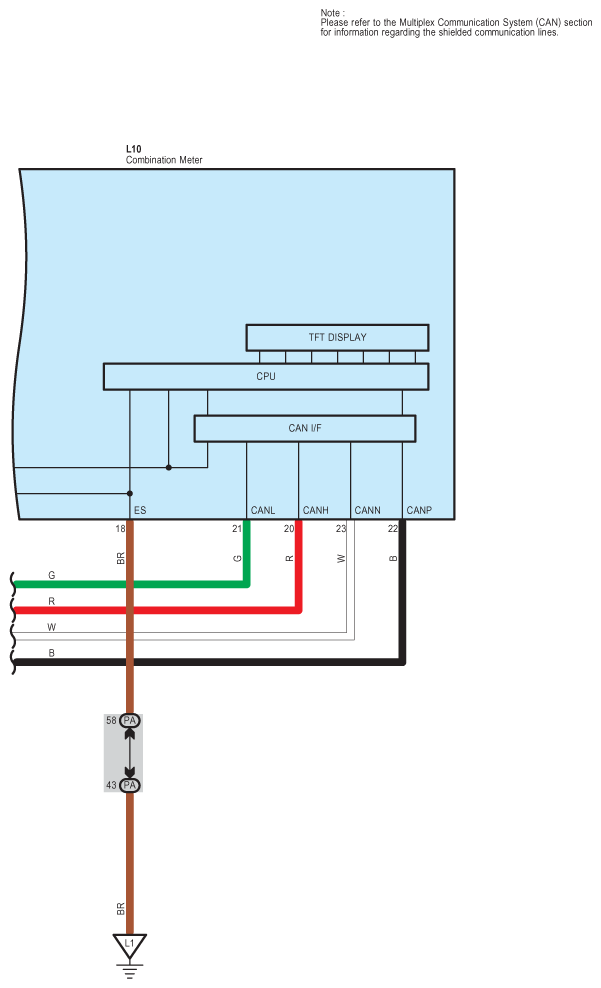

Fig 33: Hybrid And Shift Control System Wiring Diagram (33 Of 33)

G09123132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
