Remote Control Mirror: Notes

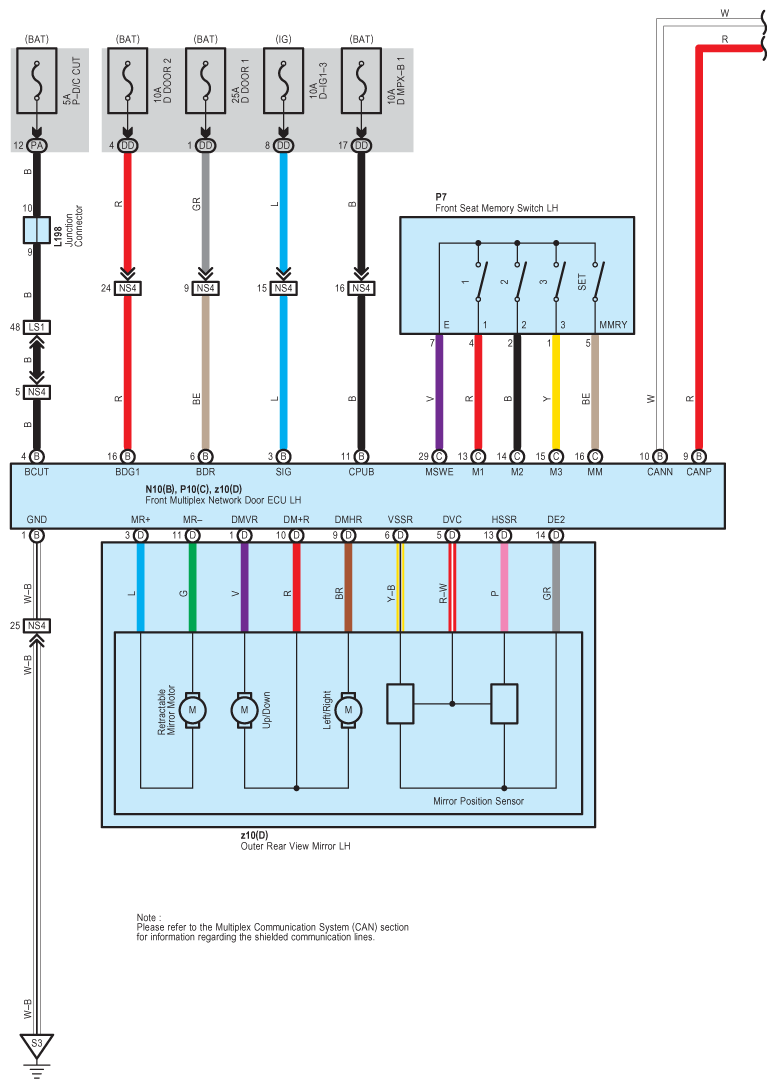

Fig 1: Remote Control Mirror System Wiring Diagram (1 Of 5)
G09123473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

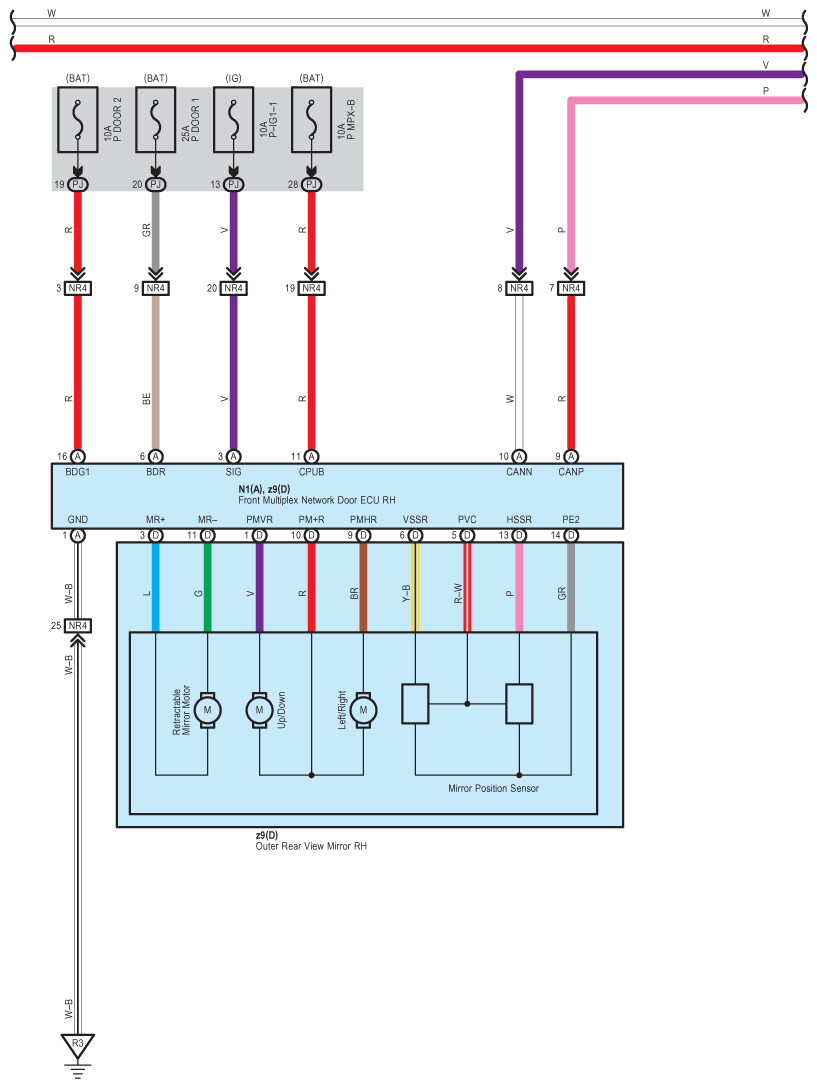

Fig 2: Remote Control Mirror System Wiring Diagram (2 Of 5)
G09123474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

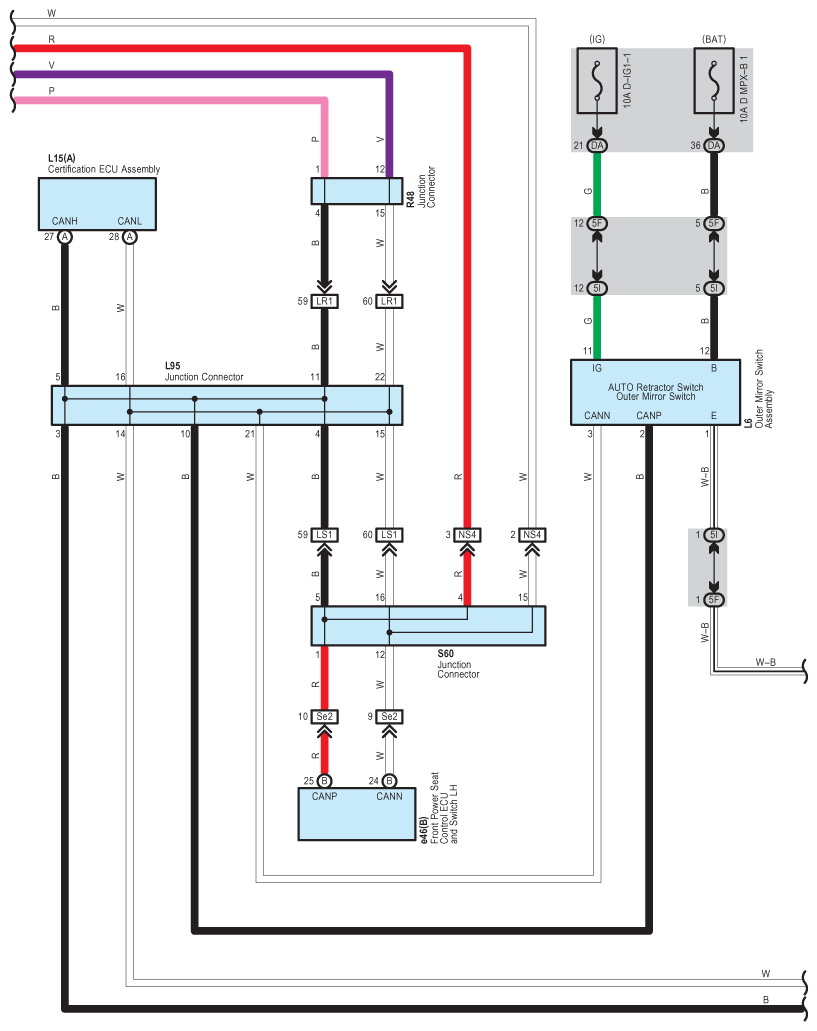

Fig 3: Remote Control Mirror System Wiring Diagram (3 Of 5)
G09123475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

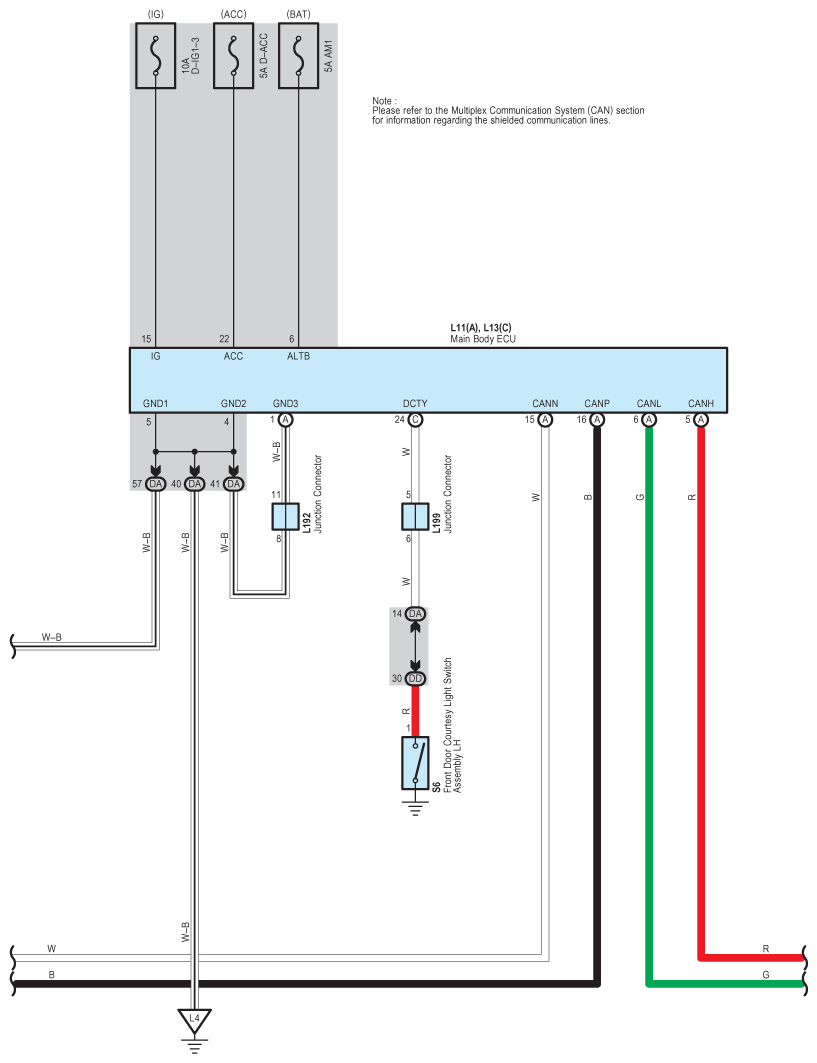

Fig 4: Remote Control Mirror System Wiring Diagram (4 Of 5)
G09123476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

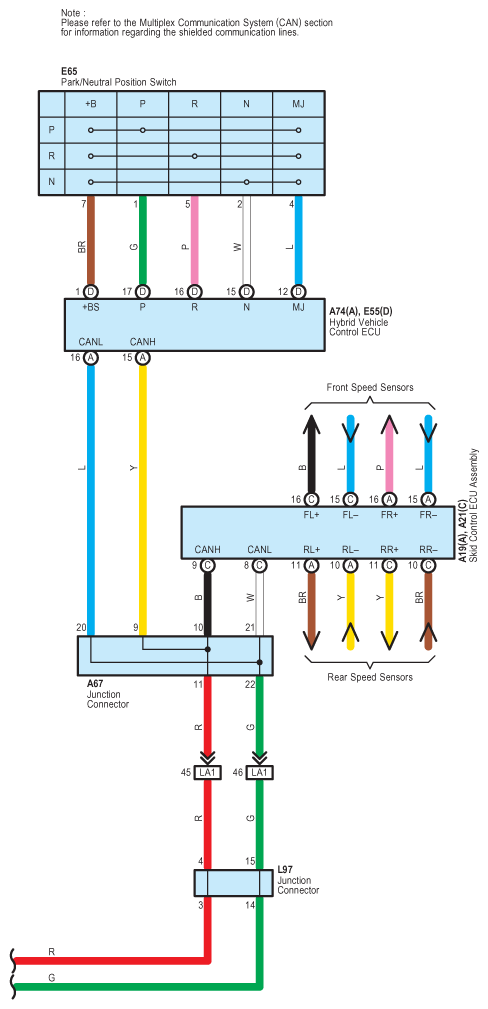

Fig 5: Remote Control Mirror System Wiring Diagram (5 Of 5)
G09123477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
