OEM System Circuits: Taillight: Notes

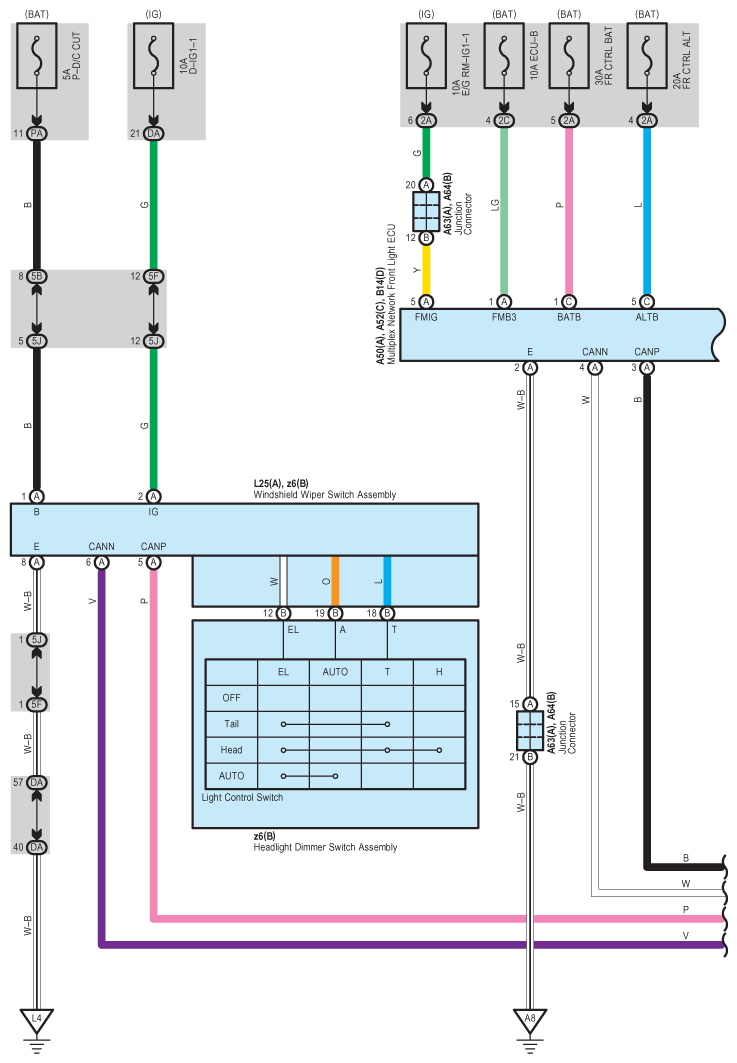

Fig 1: Taillight System Wiring Diagram (1 Of 5)
G09123217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

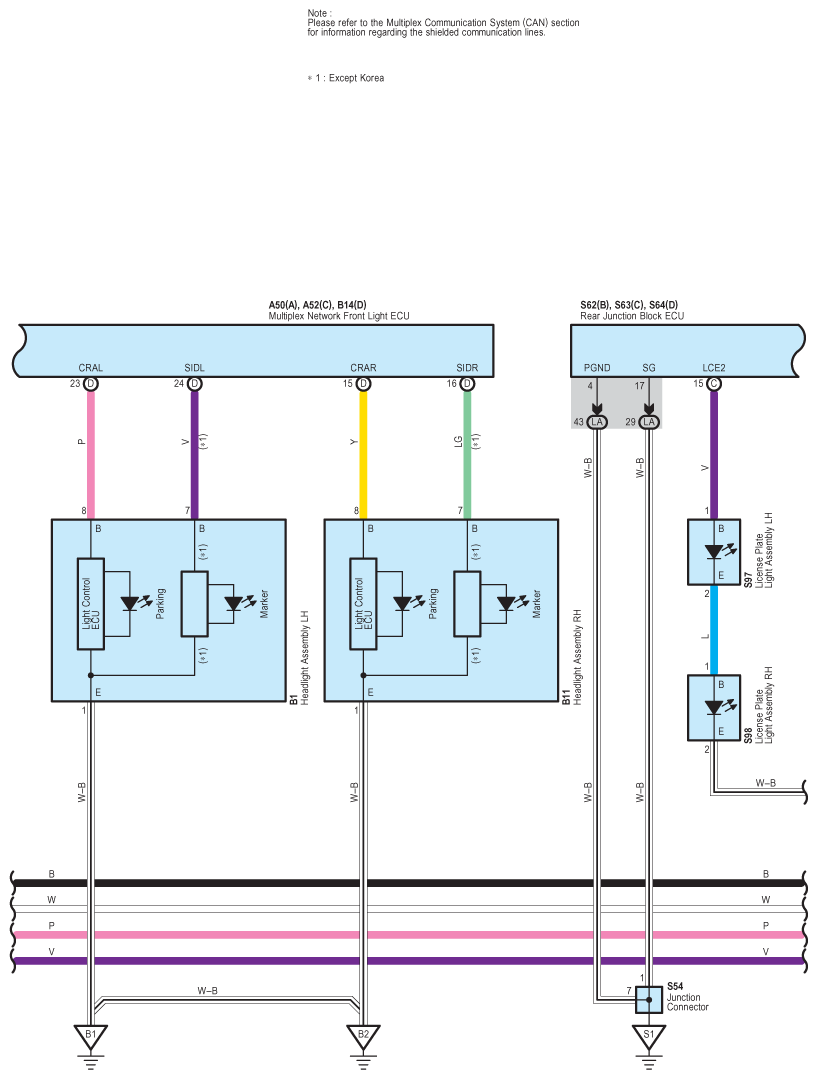

Fig 2: Taillight System Wiring Diagram (2 Of 5)
G09123218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

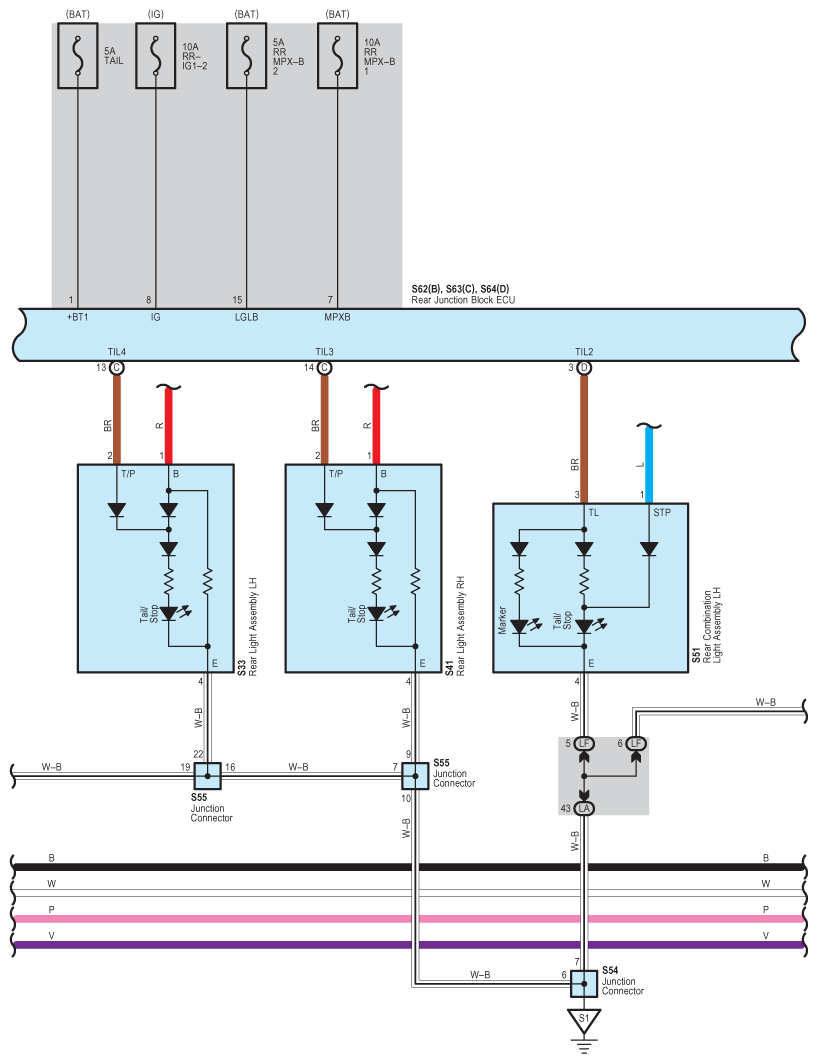

Fig 3: Taillight System Wiring Diagram (3 Of 5)
G09123219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

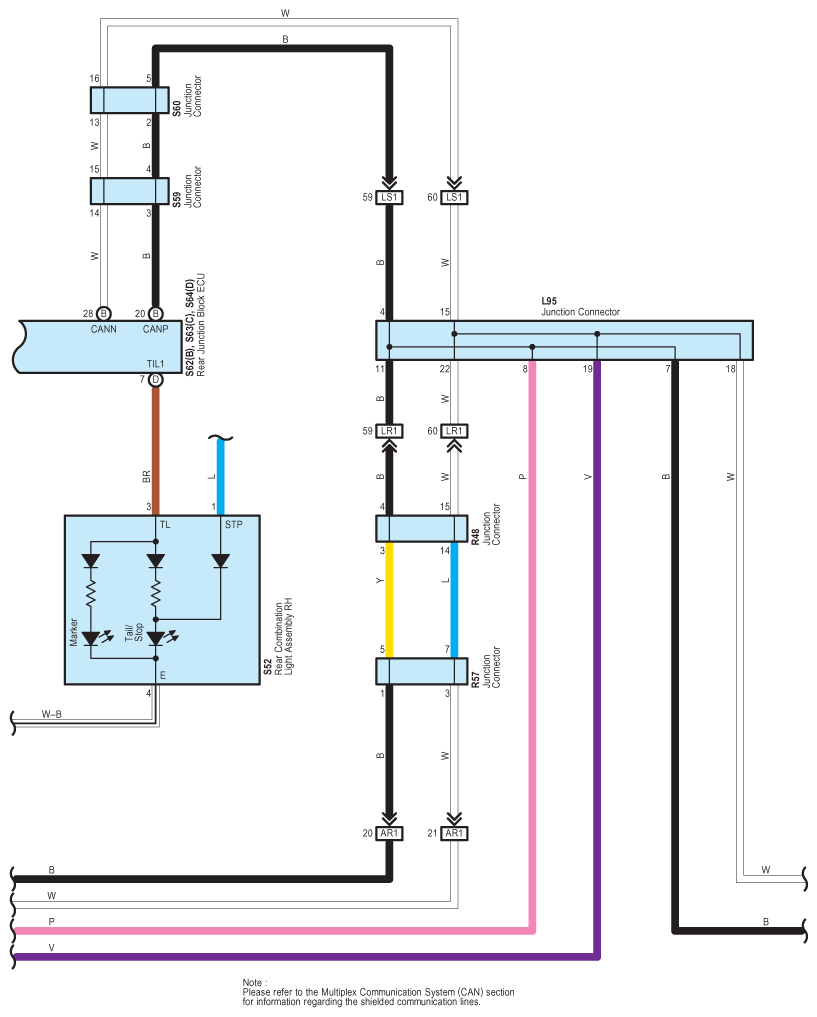

Fig 4: Taillight System Wiring Diagram (4 Of 5)
G09123220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

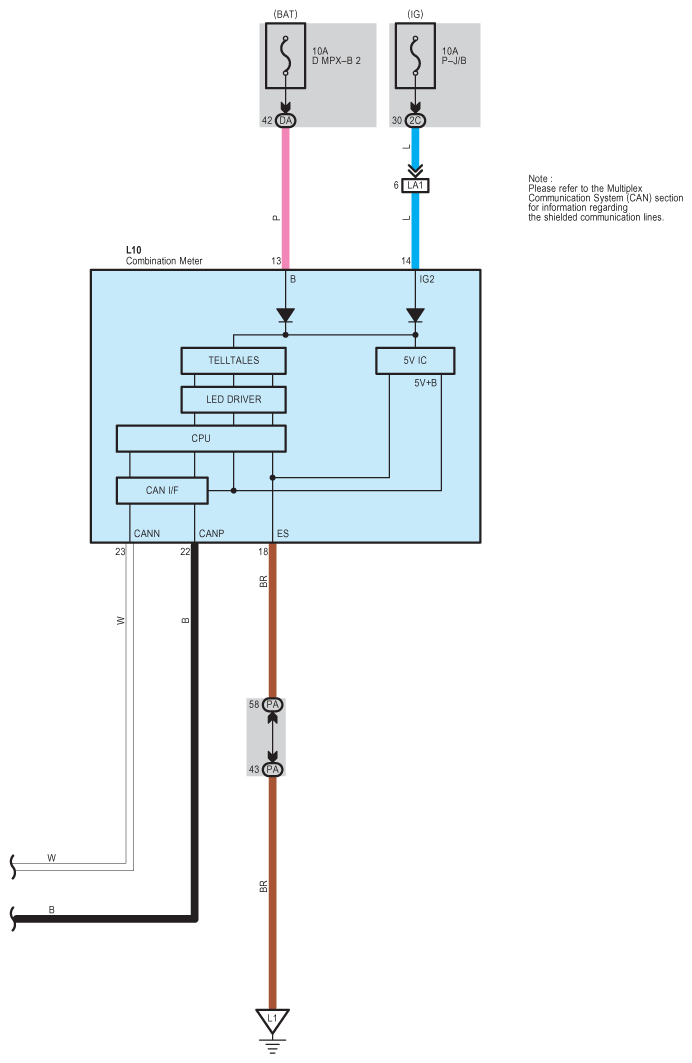

Fig 5: Taillight System Wiring Diagram (5 Of 5)
G09123221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
