VGRS System: Notes

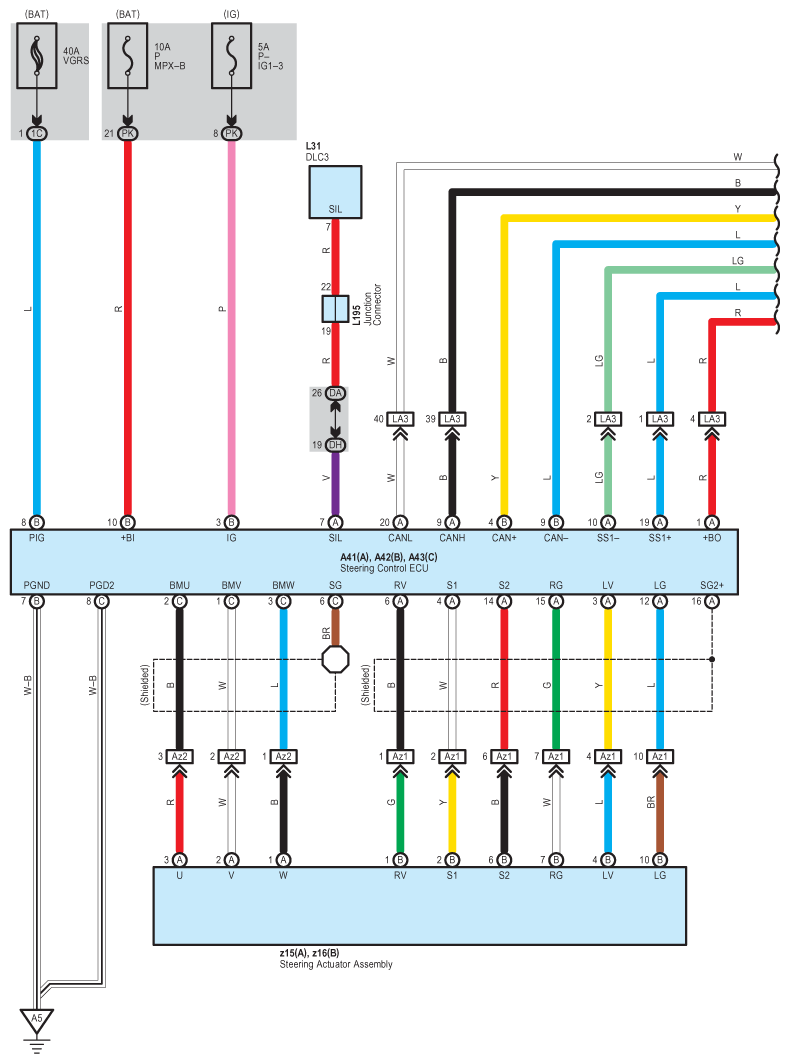

Fig 1: VGRS System Wiring Diagram (1 Of 5)
G09123351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

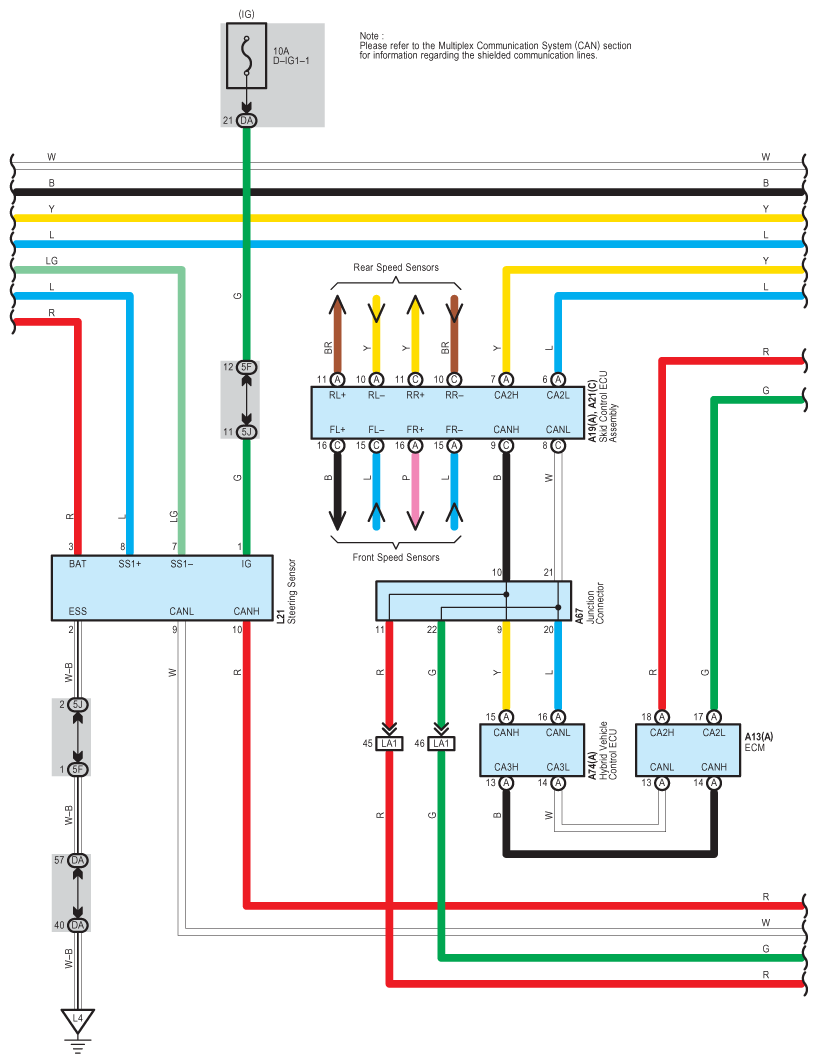

Fig 2: VGRS System Wiring Diagram (2 Of 5)
G09123352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

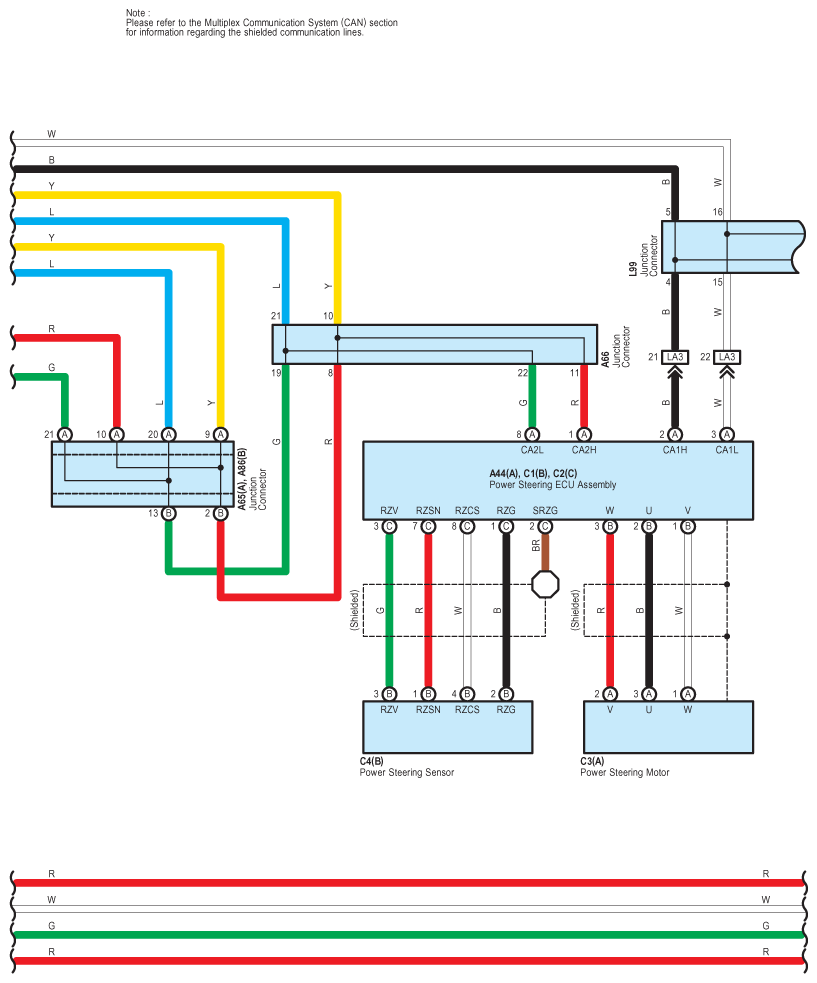

Fig 3: VGRS System Wiring Diagram (3 Of 5)
G09123353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

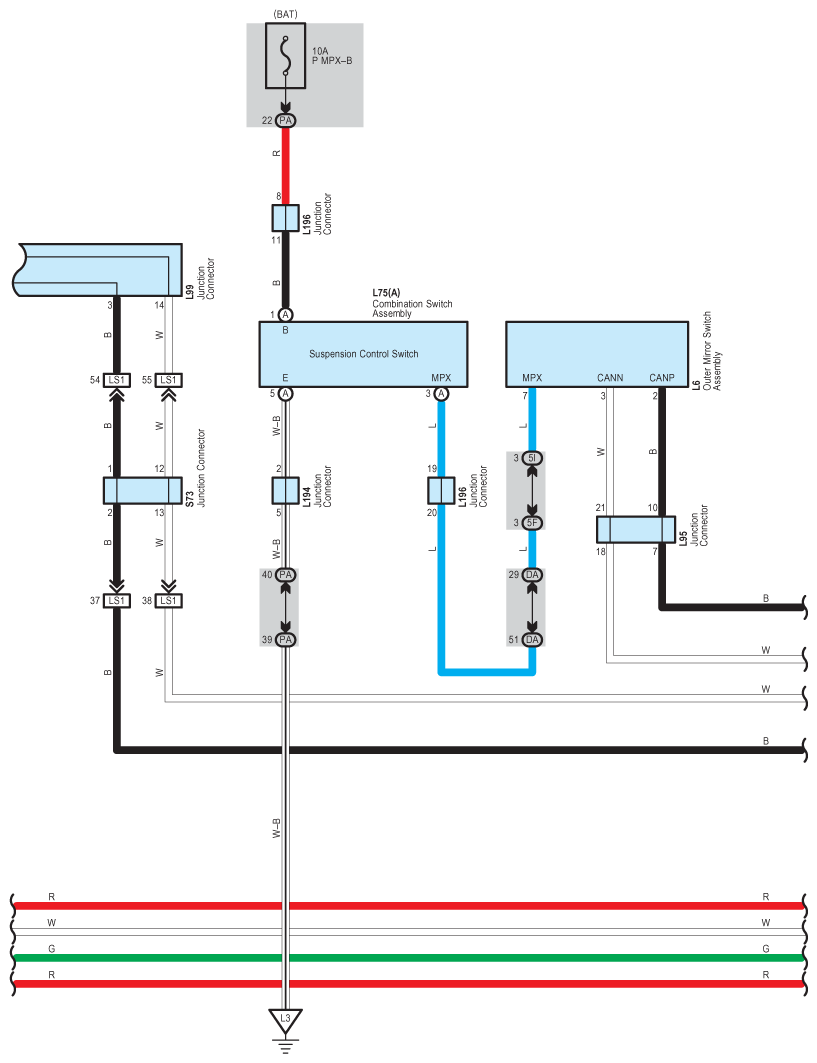

Fig 4: VGRS System Wiring Diagram (4 Of 5)
G09123354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

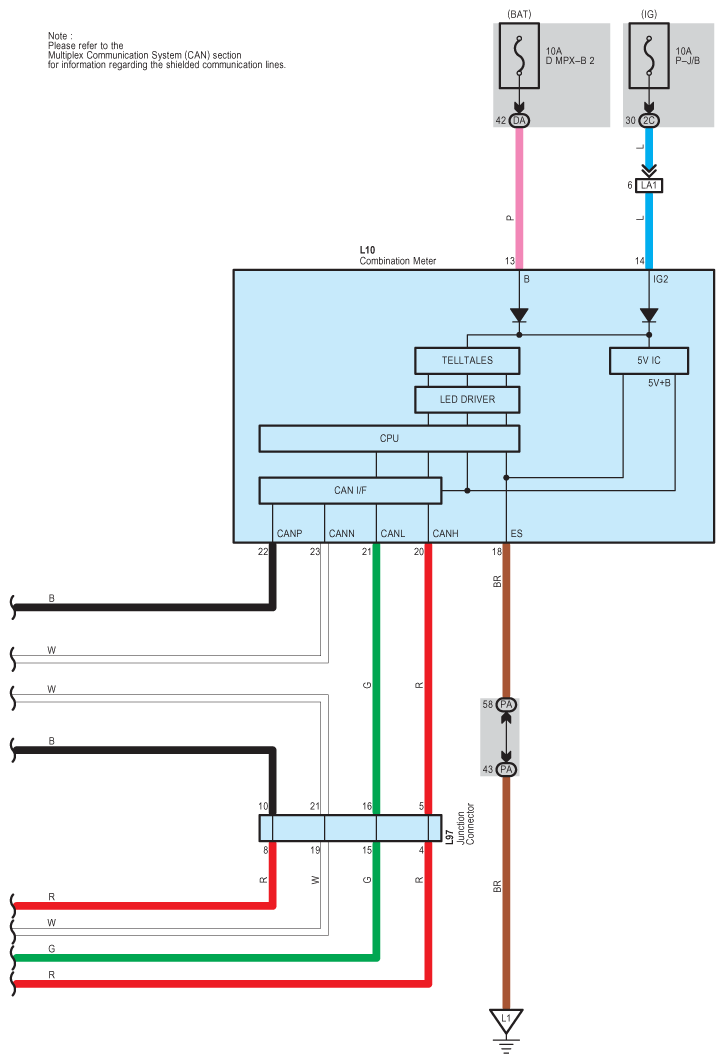

Fig 5: VGRS System Wiring Diagram (5 Of 5)
G09123355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
