Speed Signal Circuit [08/2014 - ]: Wiring Diagram

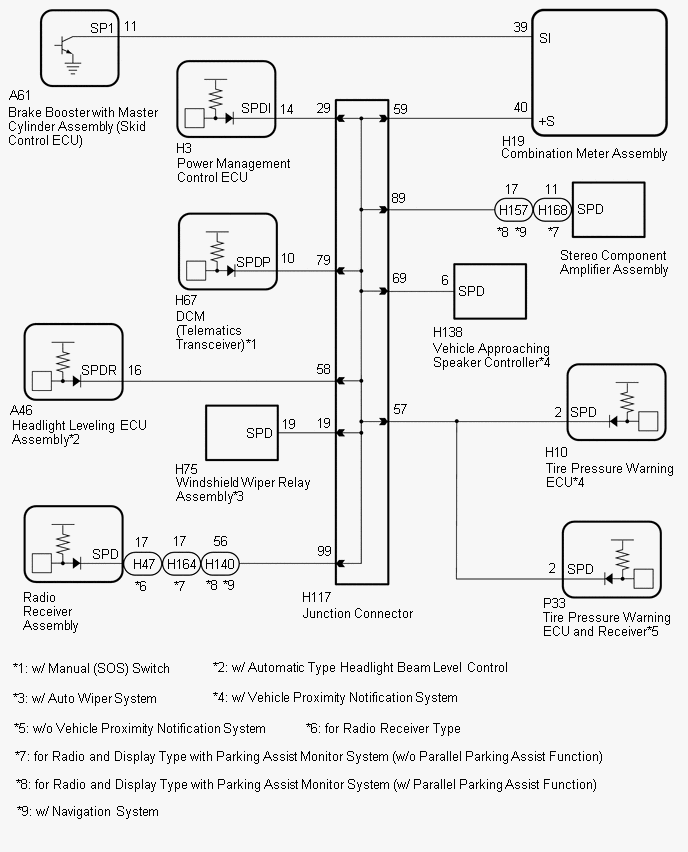

Fig 1: Vehicle Speed Signal Circuit - Wiring Diagram
GTY525175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
