Installation [09/2015 - ]: Procedure

  1. INSTALL REAR SPEED SENSOR RH
    1. Install the sensor with the bolt.
      GTY685704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:
      • The speed sensor is easily damaged. When installing the speed sensor to the axle hub, do not use excessive force to rotate and install it.
      • Prevent foreign matter from attaching to the sensor tip.
      • Do not drop the sensor. If the sensor has been dropped replace the sensor with a new one.
  2. INSTALL SKID CONTROL SENSOR WIRE
    1. Connect the rear speed sensor connector.
      GTY620005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the pad wear indicator connector.
    3. Install the sensor clamp with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      Do not twist the sensor wire when installing the clamps.

    4. Install the 2 sensor clamps with the 2 nuts.

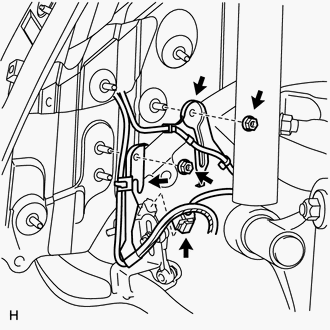

      GTY620003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    5. Connect the rear height control sensor connector.
    6. Insert the connector and grommet to the inside of the vehicle through the hole in the wheel house.
      GTY126299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. for RH:
      1. Connect the skid control sensor wire connector to the vehicle side connector.
        GTY283037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. for LH:
      1. Connect the skid control sensor wire connector to the vehicle side connector.

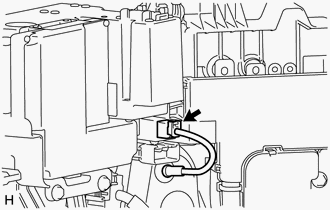

        GTY628744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR WHEEL

    Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)

  4. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    (Refer to PROCEDURE - Step 4 )

  5. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    (Refer to INSTALLATION [09/2015 - ] )

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  7. INSTALL BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 13

  8. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  9. CHECK SPEED SENSOR SIGNAL

    (Refer to TEST MODE PROCEDURE [09/2015 - ] )
