Removal [08/2014 - ]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal, Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work (See article. Refer to PRECAUTION [08/2014 - ] ).
DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 2
REMOVE REAR WHEEL
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 11
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
LOOSEN PARKING BRAKE CABLE
Refer to PROCEDURE - Step 9
REMOVE REAR SUSPENSION ARM COVER
Refer to PROCEDURE - Step 2
REMOVE PARKING BRAKE LEVER PROTECTOR
Refer to PROCEDURE - Step 8
DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
Refer to PROCEDURE - Step 11
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
Refer to PROCEDURE - Step 11
REMOVE REAR DISC
Refer to PROCEDURE - Step 20

DISCONNECT REAR SPEED SENSOR WIRE

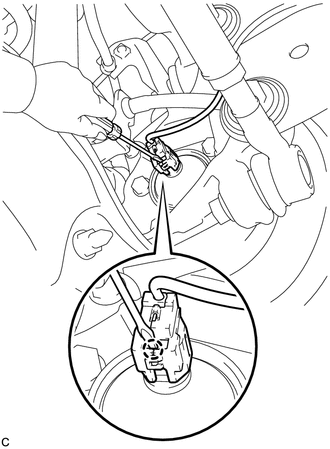

Using a screwdriver, disconnect the connector from the rear speed sensor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to damage the rear speed sensor.

REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
1. Remove the rear axle hub and bearing assembly (See article. Refer to PROCEDURE - Step 15 ).
  HINT:
  - The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor malfunctions, replace the rear axle hub and bearing assembly.
  - If the sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
