Components [10/2015 - ]: Illustration

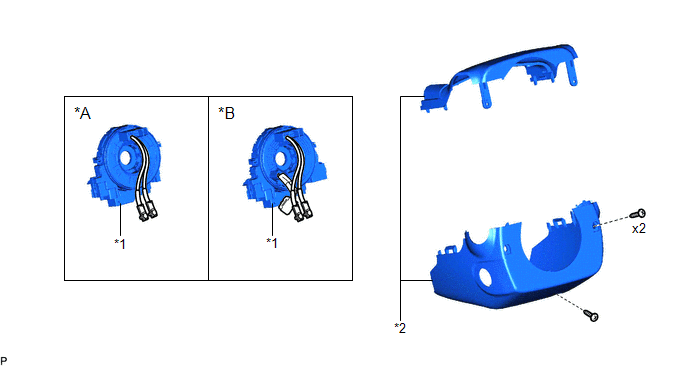

Fig 1: Steering Angle Sensor Replacement Components
GTY656496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Steering Heater *B w/ Steering Heater
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 STEERING COLUMN COVER
