Steering Pad Switch Circuit [10/2014 - 09/2017]: Wiring Diagram

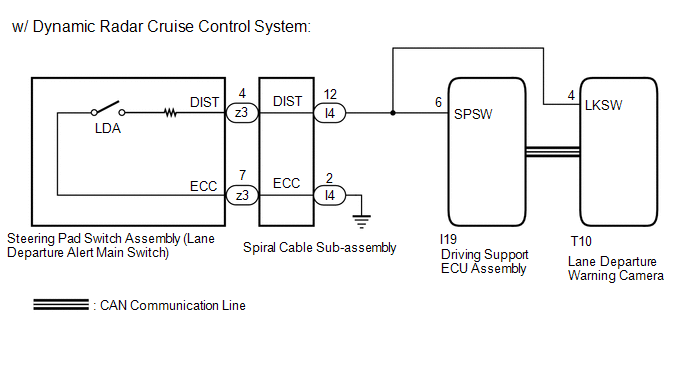

GTY959197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY959186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
