Components [10/2014 - ]

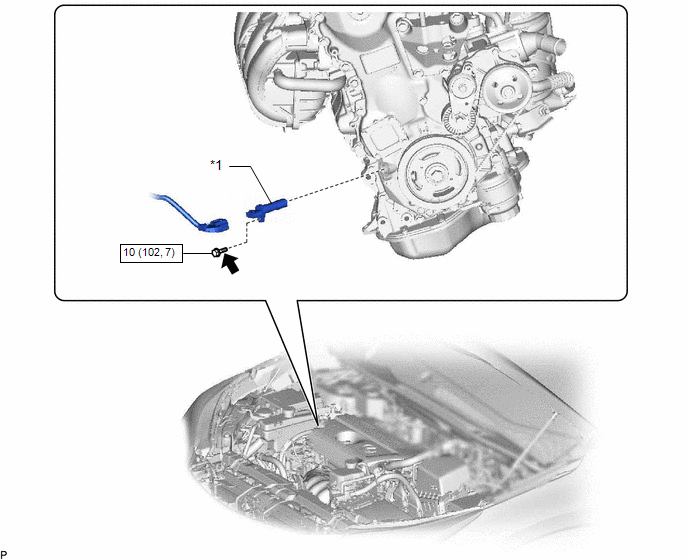

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY501706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR - -
N*m (kgf*cm, ft.*lbf) : Specified torque Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -
