Components [08/2020 - ]

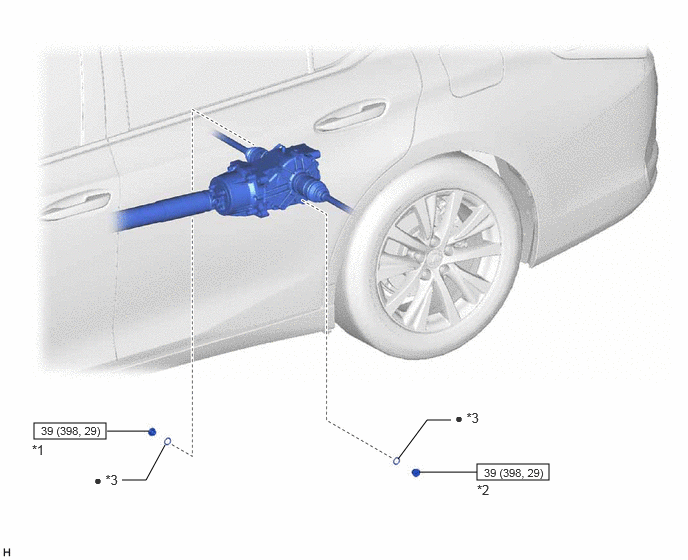

Fig 1: Differential Oil Replacement Components With Torque Specifications [08/2020 - ]
GTY957598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR DIFFERENTIAL FILLER PLUG *2 REAR DIFFERENTIAL DRAIN PLUG
*3 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
