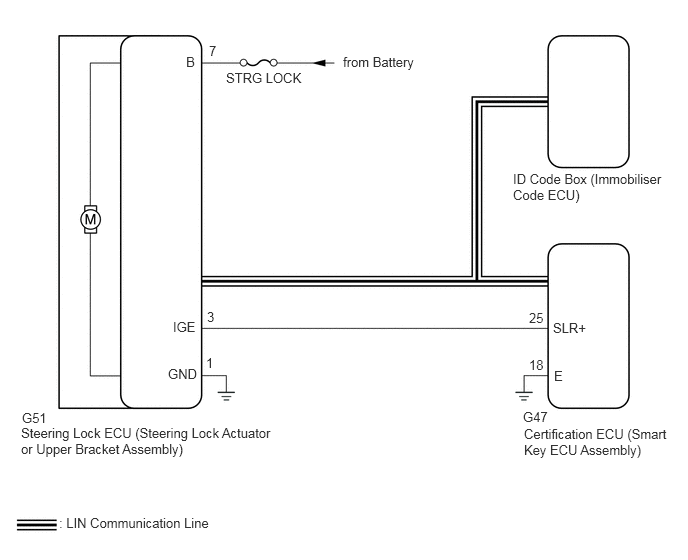

Steering Lock does not Lock [06/2018 - 09/2022]: Wiring Diagram

GTY817447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
