Components [08/2015 - ]

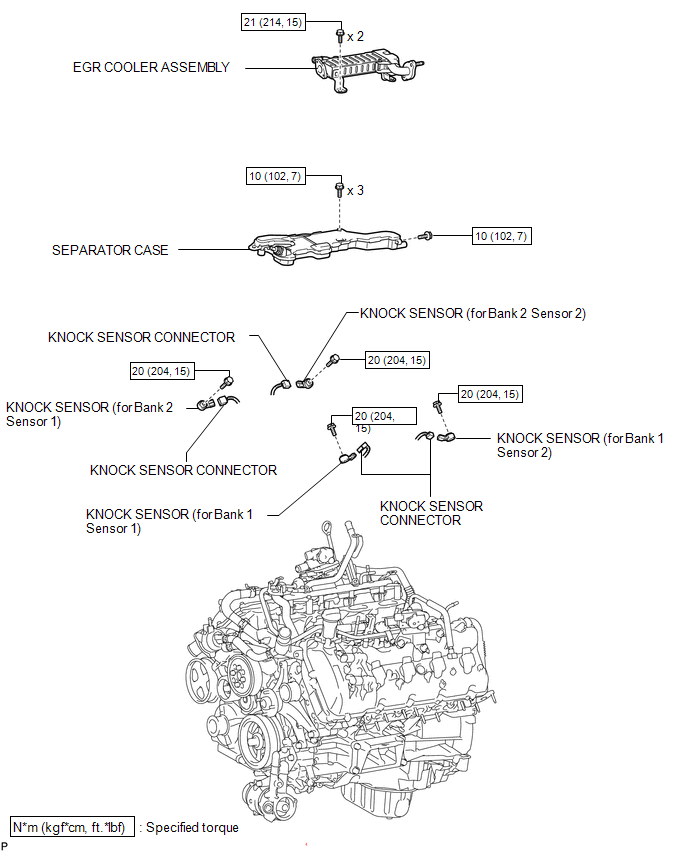

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY630393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
