Installation [01/2017 - 05/2023]: Procedure

INSTALL BRAKE CONTROL POWER SUPPLY WITH BRACKET ASSEMBLY

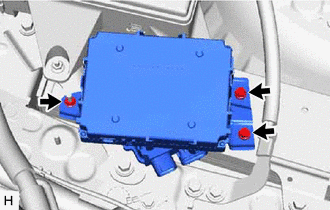

Install the brake control power supply with bracket assembly to the vehicle body with the 2 nuts.

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FUEL PUMP CONTROL ECU BRACKET

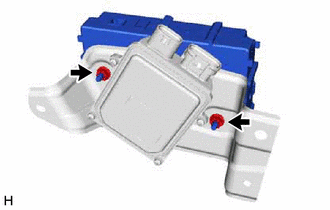

Install the fuel pump control ECU bracket to the vehicle body with the 2 bolts and nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

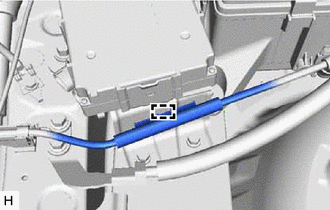

Attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

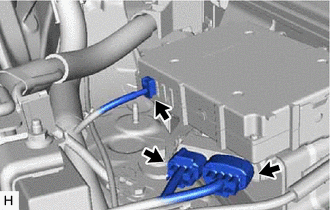

Connect the 2 fuel pump control ECU connectors.

INSTALL NO. 1 DECK BOARD BRACKET LH

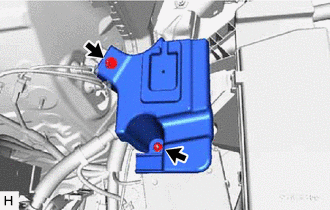

Install the No. 1 deck board bracket LH with the bolt and nut.

Torque: 15.75 N.m (161 kgf/cm, 12 ft.lbf)

INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER LH
Refer to REASSEMBLY [01/2017 - 01/2021] , or refer to REASSEMBLY [01/2021 - 05/2023]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [01/2017 - 05/2023]
CHECK AND CLEAR DTC
Refer to DTC CHECK / CLEAR [01/2017 - 09/2018] , or refer to DTC CHECK / CLEAR [09/2018 - ]
