Removal [01/2017 - ]: Procedure

REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER LH
Refer to DISASSEMBLY [01/2017 - 01/2021] , or refer to DISASSEMBLY [01/2021 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER RH
Refer to DISASSEMBLY [01/2017 - 01/2021] , or refer to DISASSEMBLY [01/2021 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]
REMOVE REAR WHEEL
Refer to REMOVAL [01/2017 - 05/2023] , or refer to REMOVAL [05/2023 - ]

REMOVE SKID CONTROL SENSOR WIRE

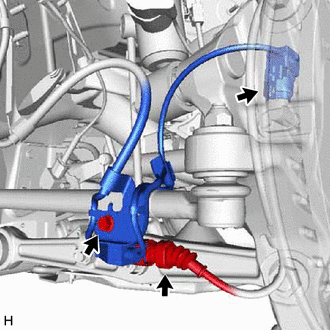

for LH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for RH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

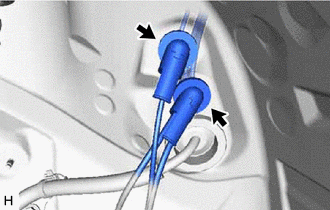

Disconnect the 2 grommets of the skid control sensor wire from the hole of the wheel house.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

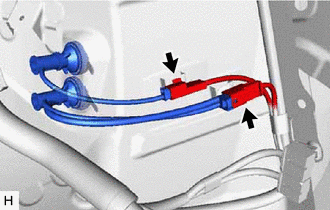

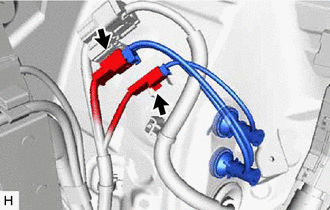

Pull out the 2 skid control sensor wire connectors from the hole in the rear wheel house.

Disconnect the absorber control actuator connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

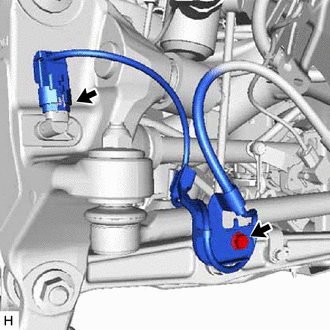

for LH Side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the speed sensor connector from the speed sensor LH.
NOTE:
- Be careful not to damage the speed sensor.
- Prevent foreign matter from adhering to the speed sensor.
Remove the bolt and sensor clamp.

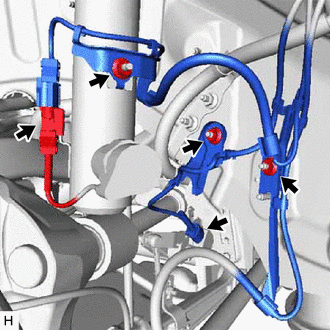

for RH Side:

Disconnect the speed sensor connector from the speed sensor RH.
NOTE:
- Be careful not to damage the speed sensor.
- Prevent foreign matter from adhering to the speed sensor.
Disconnect the pad wear indicator connector.
Remove the bolt and sensor clamp.

REMOVE REAR SPEED SENSOR LH

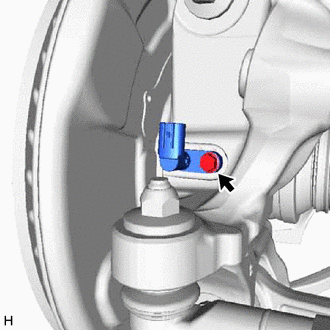

Remove the bolt and rear speed sensor LH from the rear axle hub and bearing assembly.

NOTE:

The rear speed sensor is easily damaged. When pulling out the rear speed sensor from the rear axle hub LH, do not use excessive force to rotate and remove it.
Prevent foreign matter from attaching to the sensor tip.
Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
