Components [01/2017 - ]

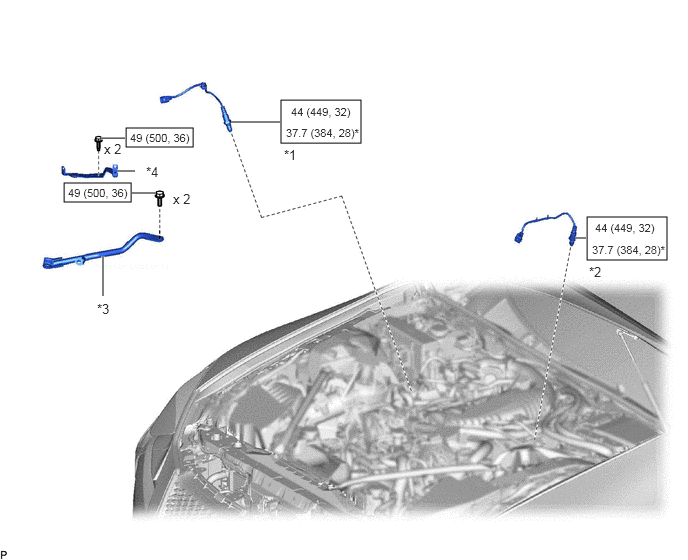

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)	*2	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
*3	FENDER APRON BRACE SUB-ASSEMBLY RH	*4	INVERTER MOTOR CABLE BRACKET ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)

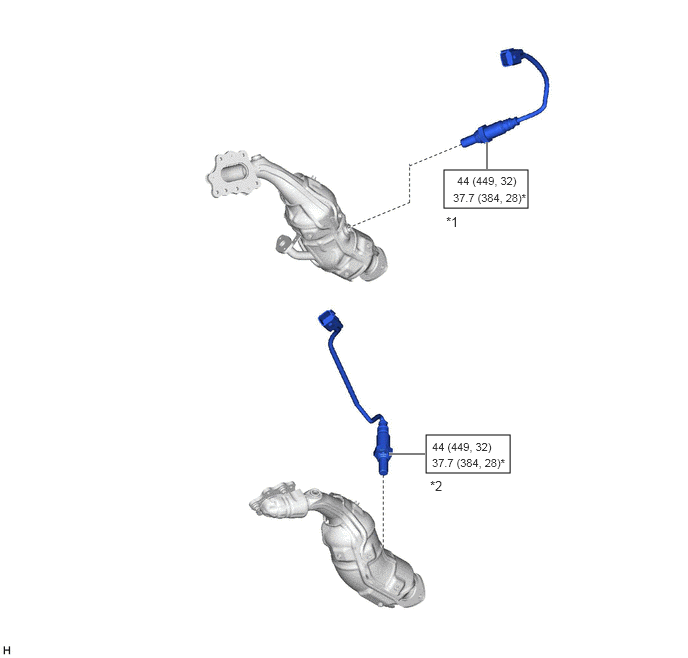

*1	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)	*2	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
