Components [01/2017 - ]

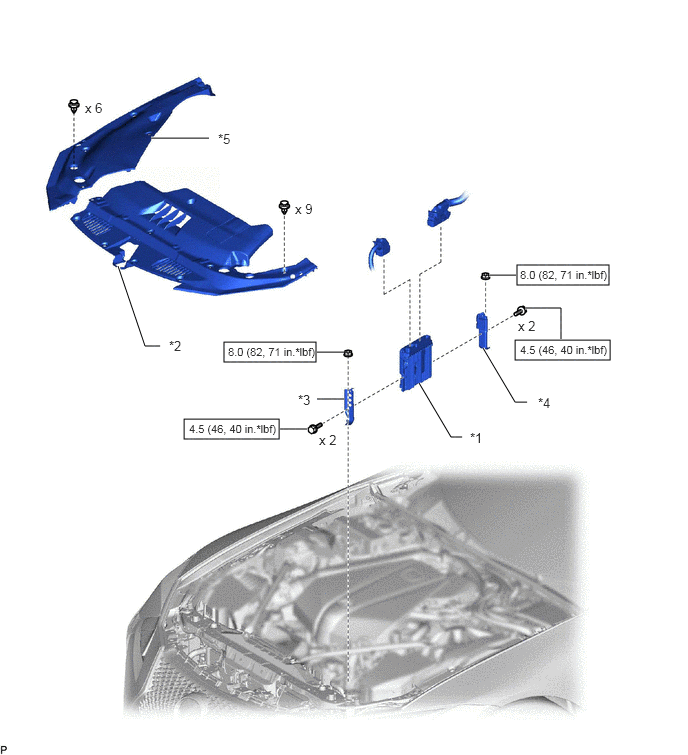

Fig 1: ECM Replacement Components With Torque Specifications
GTY792921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 LOWER RADIATOR AIR DEFLECTOR
*3 NO. 1 ECM BRACKET *4 NO. 2 ECM BRACKET
*5 RADIATOR SUPPORT TO FRAME SEAL RH - -
N.m (kgf/cm, ft.lbf): Specified torque - -
