Installation [01/2017 - ]: Procedure

INSTALL NO. 2 ECM BRACKET
1. Install the No. 2 ECM bracket to the ECM with the 2 bolts.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  NOTE:
  If the ECM has been struck or dropped, replace it.
INSTALL NO. 1 ECM BRACKET
1. Install the No. 1 ECM bracket to the ECM with the 2 bolts.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  NOTE:
  If the ECM has been struck or dropped, replace it.

INSTALL ECM

Install the ECM with the 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:
If the ECM has been struck or dropped, replace it.

Connect the 2 connectors to the ECM and push down the lever to lock it.

NOTE:

When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other parts.
Make sure that the 2 levers are securely locked.

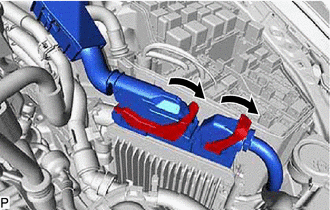

GTY810644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 28
INSTALL RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 29
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023] , or refer to AUTOMATIC LEARNING CHART [05/2023 - ]
