Components [01/2017 - ]

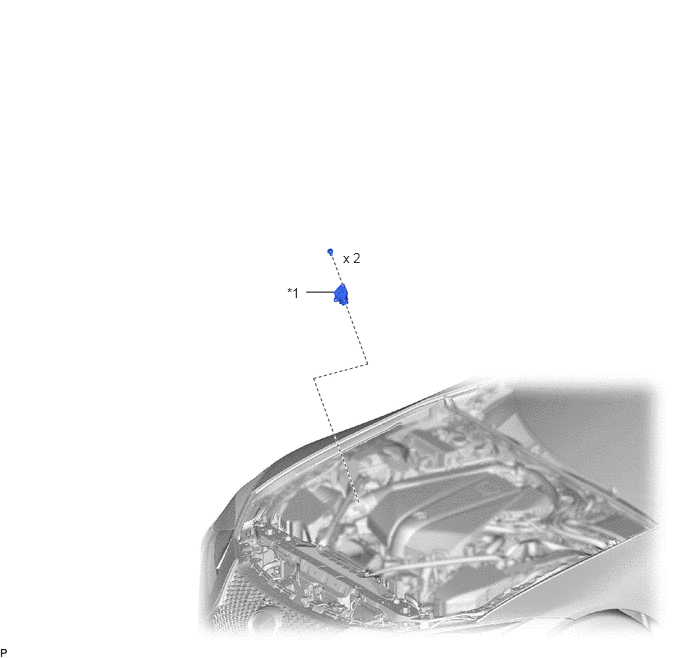

Fig 1: Mass Air Flow Meter Replacement Components
GTY821788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
