Removal [01/2017 - ]: Procedure

Refer to PROCEDURE - Step 8 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

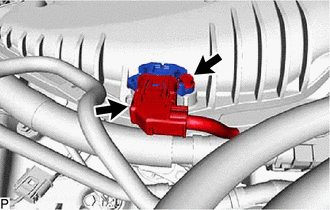

1. Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and E.F.I. vacuum sensor assembly (manifold absolute pressure sensor).
