Components [12/2017 - ]

Fig 1: Air Fuel Ratio Sensor Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	*B	for AWD
*1	LOWER RADIATOR AIR DEFLECTOR	*2	RADIATOR COVER PLATE
*3	UPPER RADIATOR SUPPORT SEAL	*4	V-BANK COVER SUB-ASSEMBLY

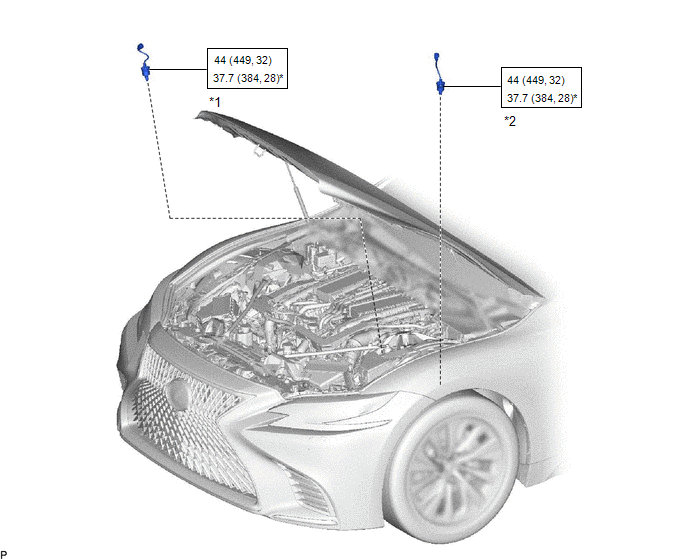

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)	*2	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST

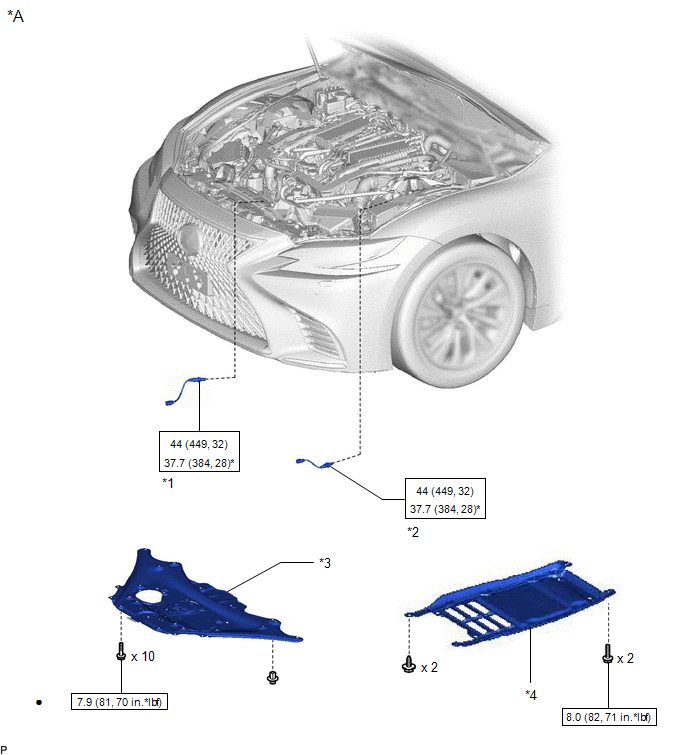

Fig 3: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 4)

*A	for 2WD	-	-
*1	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)	*2	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)
*3	NO. 2 ENGINE UNDER COVER ASSEMBLY	*4	TRANSMISSION UNDER COVER
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	*	Precoated part

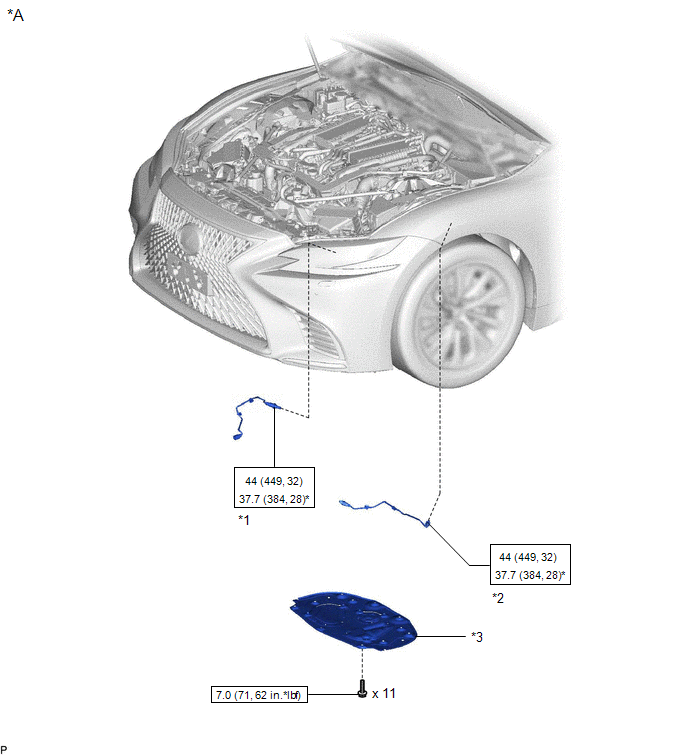

Fig 4: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (4 Of 4)

*A	for AWD	-	-
*1	AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2)	*2	AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2)
*3	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
