Components [12/2017 - ]

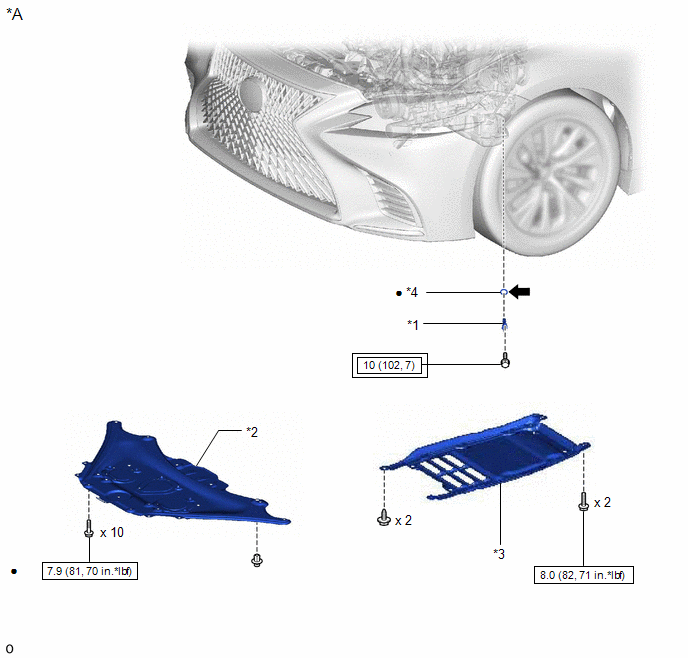

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	-	-
*1	CRANKSHAFT POSITION SENSOR	*2	NO. 2 ENGINE UNDER COVER ASSEMBLY
*3	TRANSMISSION UNDER COVER	*4	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	*	Precoated part
	Engine oil	-	-

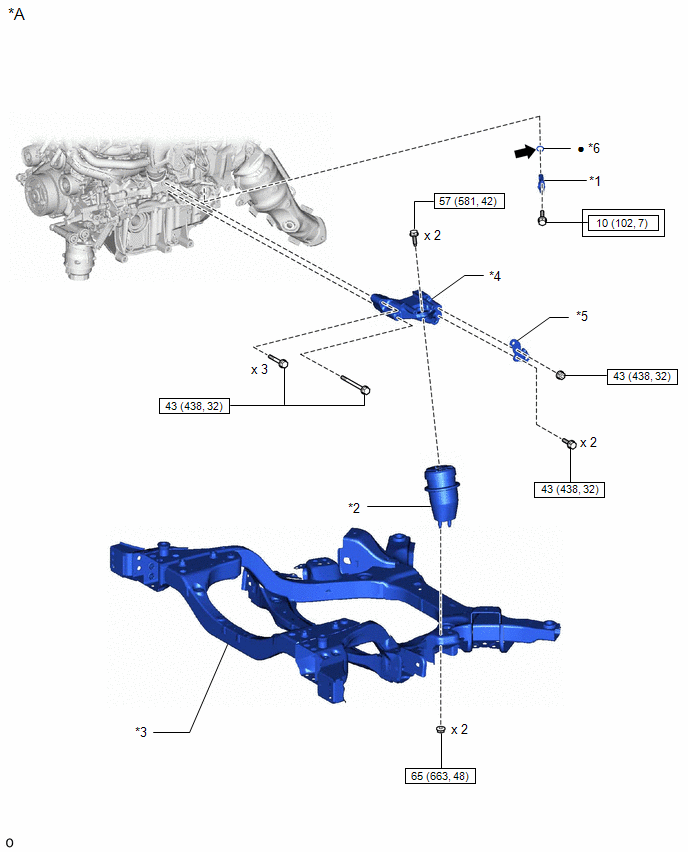

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)

*A	for AWD	-	-
*1	CRANKSHAFT POSITION SENSOR	*2	FRONT ENGINE MOUNTING INSULATOR
*3	FRONT FRAME ASSEMBLY	*4	FRONT NO. 1 ENGINE MOUNTING BRACKET LH
*5	NO. 2 MANIFOLD STAY	*6	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		Engine oil
