Removal [09/2018 - 10/2020]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2018 - 10/2020]
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to REMOVAL [12/2017 - 10/2020]

REMOVE ECM

Push in the locks on the 3 levers, raise the 3 levers, and disconnect the 3 ECM connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Push
	Raise

NOTE:

After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting part of the connectors.

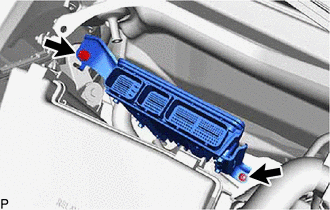

Remove the bolt and nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 ECM BRACKET

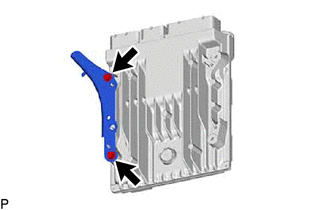

Remove the 2 screws and No. 1 ECM bracket from the ECM.

REMOVE NO. 2 ECM BRACKET

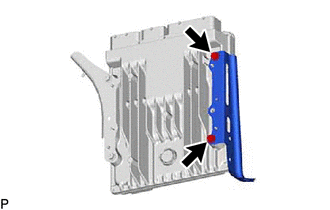

Remove the 2 screws and No. 2 ECM bracket from the ECM.
