Removal [12/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 9 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 8 [10/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 10 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 10 [10/2023 - ]

  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

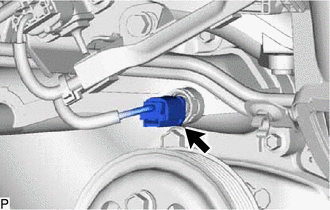

    1. Disconnect the engine coolant temperature sensor connector.
      GTY836539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

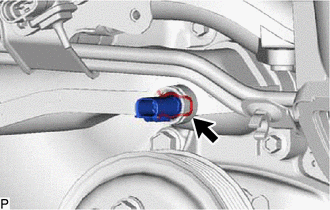

    2. Remove the clip and engine coolant temperature sensor from the water inlet assembly.
      GTY817305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

    3. Remove the gasket from the engine coolant temperature sensor.
  6. REMOVE E.F.I. ENGINE COOLANT TEMPERATURE SENSOR
    1. for Front:

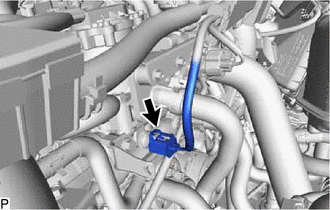

      1. Disconnect the E.F.I. engine coolant temperature sensor connector.
        GTY817557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

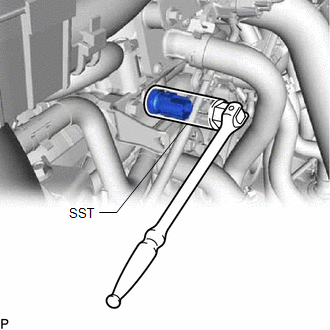

      2. Using SST, remove the E.F.I. engine coolant temperature sensor.
        GTY805241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09817-33191
        NOTE:

        If the E.F.I. engine coolant temperature sensor has been struck or dropped, replace it.

      3. Remove the gasket from the E.F.I. engine coolant temperature sensor.
    2. for Rear:
      1. Remove the cowl top ventilator louver sub-assembly.

        Refer to REMOVAL [12/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]

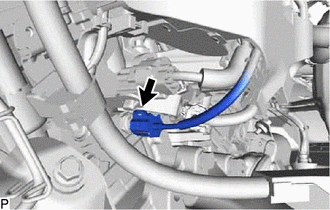

      2. Disconnect the E.F.I. engine coolant temperature sensor connector.
        GTY817554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

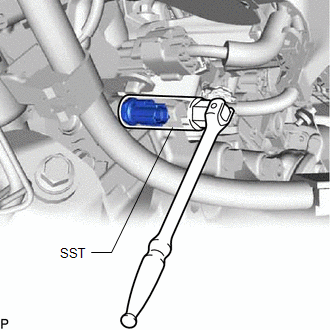

      3. Using SST, remove the E.F.I. engine coolant temperature sensor.
        GTY788295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09817-33191
        NOTE:

        If the E.F.I. engine coolant temperature sensor has been struck or dropped, replace it.

      4. Remove the gasket from the E.F.I. engine coolant temperature sensor.
