Components [12/2017 - ]

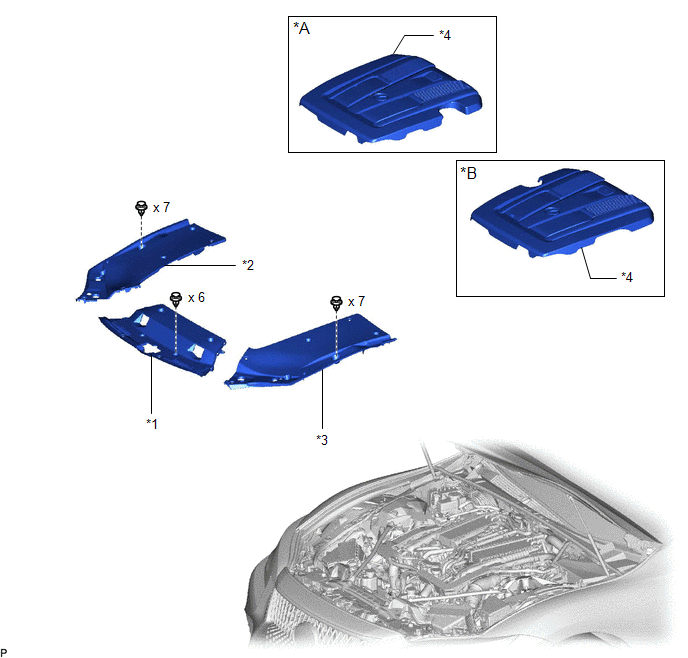

Fig 1: Ignition Coil And Spark Plug Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	*B	for AWD
*1	LOWER RADIATOR AIR DEFLECTOR	*2	RADIATOR COVER PLATE
*3	UPPER RADIATOR SUPPORT SEAL	*4	V-BANK COVER SUB-ASSEMBLY

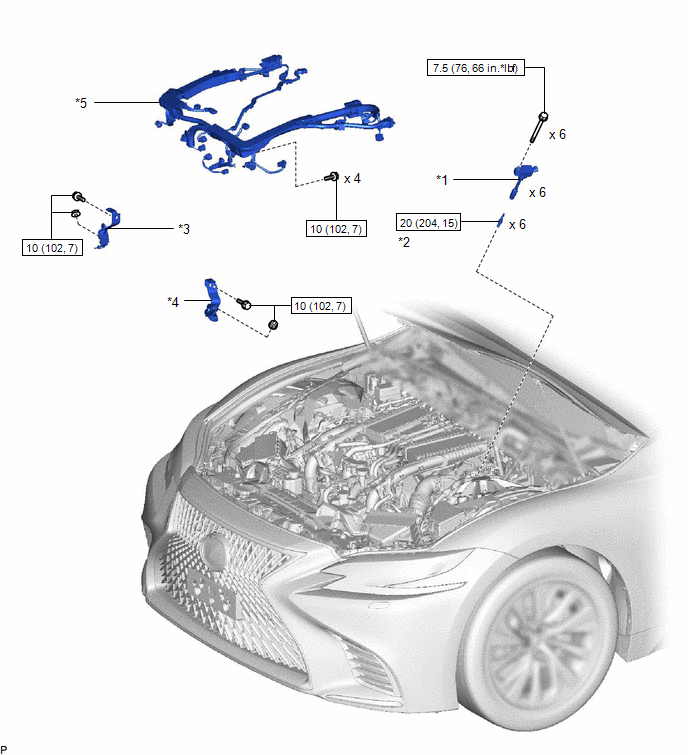

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)

*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
*3	INTERCOOLER SUPPORT BRACKET	*4	NO. 2 INTERCOOLER SUPPORT BRACKET
*5	WIRE HARNESS	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
