Removal [12/2017 - ]: Procedure

  1. REMOVE DIRECT FUEL INJECTOR ASSEMBLY

    Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  2. REMOVE KNOCK CONTROL SENSOR

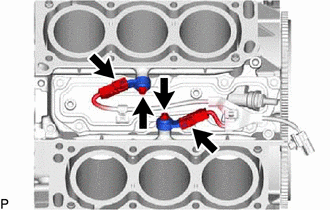

    1. Disconnect the 2 knock control sensor connectors.
      GTY817296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 knock control sensors.
      NOTE:

      If a knock control sensor has been struck or dropped, replace it.
