Installation [12/2017 - ]: Procedure
- INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY (for Bank 2)
HINT:
Perform "Inspection After Repairs" after replacing the throttle body with motor assembly.
Refer to INITIALIZATION [12/2017 - 10/2020] , or refer to INITIALIZATION [10/2020 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

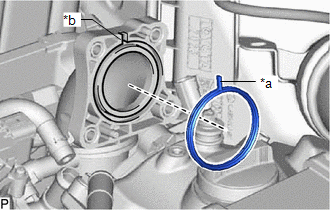

- Install a new gasket to the intake air surge tank assembly with intercooler with the protrusion of the gasket.

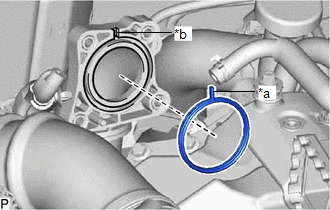

*a Protrusion *b Groove - Install a new gasket to the No. 2 air tube assembly with the protrusion of the gasket.
*a Protrusion *b Groove - Connect the No. 4 water by-pass hose to the throttle body with motor assembly and slide the clip to secure the hose.
- Connect the No. 6 water by-pass hose to the throttle body with motor assembly and slide the clip to secure the hose.
- Install the throttle body with motor assembly and No. 2 air tube assembly to the intake air surge tank assembly with intercooler with the 4 bolts.
Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)
- Connect the throttle body with motor assembly connector.
- Install the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Attach the 3 wire harness clamps.
- Install the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Install a new gasket to the intake air surge tank assembly with intercooler with the protrusion of the gasket.
- INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY (for Bank 1)
HINT:
Perform "Inspection After Repairs" after replacing the throttle body with motor assembly.
Refer to INITIALIZATION [12/2017 - 10/2020] , or refer to INITIALIZATION [10/2020 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

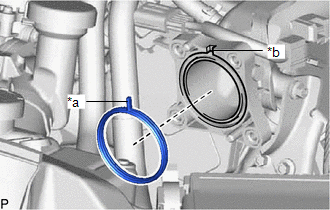

- Install a new gasket to the intake air surge tank assembly with intercooler with the protrusion of the gasket.

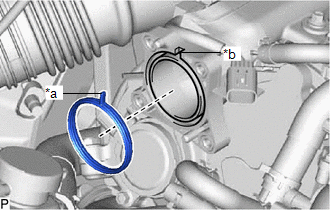

*a Protrusion *b Groove - Install a new gasket to the No. 1 air tube assembly with the protrusion of the gasket.
*a Protrusion *b Groove - Connect the No. 3 water by-pass hose to the throttle body with motor assembly and slide the clip to secure the hose.
- Connect the No. 5 water by-pass hose to the throttle body with motor assembly and slide the clip to secure the hose.
- Install the throttle body with motor assembly and No. 1 air tube assembly to the intake air surge tank assembly with intercooler with the 4 bolts.
Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)
- Connect the throttle body with motor assembly connector.
- Install the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Attach the 3 wire harness clamps.
- Install the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Install a new gasket to the intake air surge tank assembly with intercooler with the protrusion of the gasket.
- CONNECT NO. 2 AIR TUBE ASSEMBLY
- Connect the No. 2 air tube assembly with the clip and clamp.
Torque: 6.3 N.m (64 kgf/cm, 56 in.lbf)
- Connect the No. 2 air tube connector.
- Connect the No. 5 air hose to the No. 1 turbo pressure sensor and slide the clip to secure the hose.
- Connect the wire harness with the 2 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Connect the No. 2 air tube assembly with the clip and clamp.
- CONNECT NO. 1 AIR TUBE ASSEMBLY
- Connect the No. 1 air tube assembly with the clip and clamp.
Torque: 6.3 N.m (64 kgf/cm, 56 in.lbf)
- Connect the No. 1 air tube connector.
- Connect the No. 4 air hose to the No. 1 turbo pressure sensor and slide the clip to secure the hose.
- Connect the wire harness with the 2 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Connect the No. 1 air tube assembly with the clip and clamp.
- ADD ENGINE COOLANT
Refer to REPLACEMENT [12/2017 - ]
- INSPECT FOR COOLANT LEAK
Refer to REPLACEMENT [12/2017 - ]
- INSTALL AIR CLEANER ASSEMBLY LH
Refer to PROCEDURE - Step 127 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 127 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 127 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 127 [10/2023 - ]
- INSTALL AIR CLEANER ASSEMBLY RH
Refer to PROCEDURE - Step 128 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 128 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 128 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 128 [10/2023 - ]
- INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 131 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 131 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 131 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 131 [10/2023 - ]
- INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 132 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 132 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 132 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 132 [10/2023 - ]
- INSTALL LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 189 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 189 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 190 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 189 [10/2023 - ]
- INSTALL UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 190 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 190 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 191 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 190 [10/2023 - ]
- INSTALL RADIATOR COVER PLATE
Refer to PROCEDURE - Step 191 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 191 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 192 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 191 [10/2023 - ]
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 192 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 192 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 193 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 192 [10/2023 - ]
