Installation [12/2017 - 10/2020]: Procedure

INSTALL NO. 2 ECM BRACKET
1. Install the No. 2 ECM bracket to the ECM with the 2 screws.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  NOTE:
  If the ECM has been struck or dropped, replace it.
INSTALL NO. 1 ECM BRACKET
1. Install the No. 1 ECM bracket to the ECM with the 2 screws.
  Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  NOTE:
  If the ECM has been struck or dropped, replace it.

INSTALL ECM

Install the ECM with the nut and bolt.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:
If the ECM has been struck or dropped, replace it.

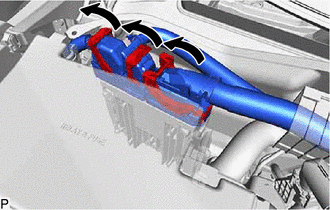

Connect the 3 connectors to the ECM and push down the lever to lock it.

GTY817548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to INSTALLATION [12/2017 - 10/2020]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
