Components [10/2017 - 10/2023]

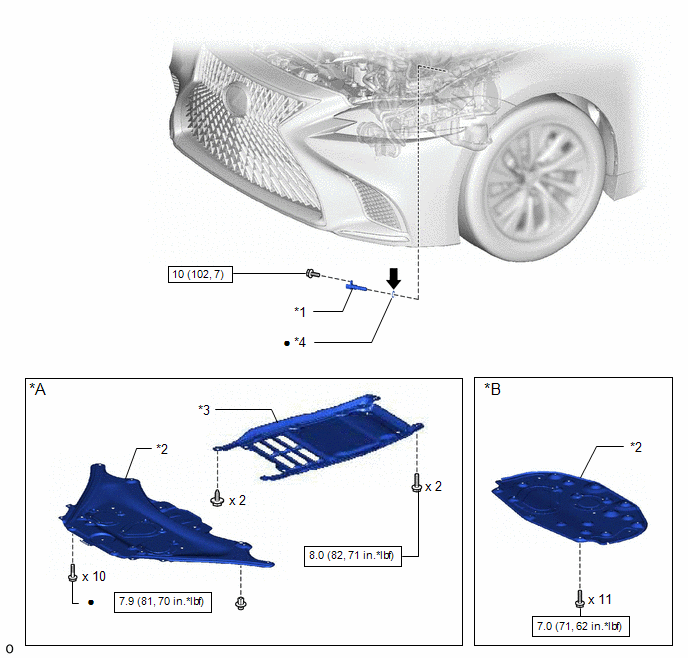

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [10/2017 - 10/2023]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | CRANKSHAFT POSITION SENSOR | *2 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *3 | TRANSMISSION UNDER COVER | *4 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | Engine oil |
