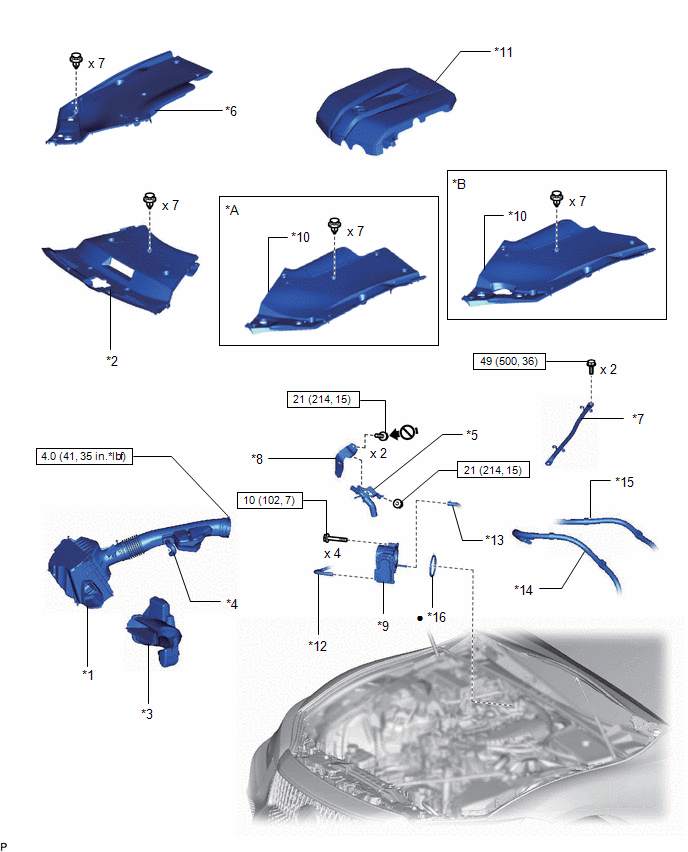

| *A |
for Type A |
*B |
for Type B |
| *1 |
AIR CLEANER WITH AIR CLEANER HOSE |
*2 |
LOWER RADIATOR AIR DEFLECTOR |
| *3 |
NO. 1 AIR CLEANER INLET |
*4 |
NO. 2 PCV HOSE |
| *5 |
NO. 3 WATER BY-PASS HOSE ASSEMBLY |
*6 |
RADIATOR COVER PLATE |
| *7 |
RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH |
*8 |
THROTTLE BODY BRACKET |
| *9 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*10 |
UPPER RADIATOR SUPPORT SEAL |
| *11 |
V-BANK COVER SUB-ASSEMBLY |
*12 |
WATER BY-PASS HOSE |
| *13 |
NO. 4 WATER BY-PASS HOSE |
*14 |
MOTOR CABLE |
| *15 |
GENERATOR CABLE |
*16 |
GASKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
- |
- |
