Components [10/2017 - 10/2020]

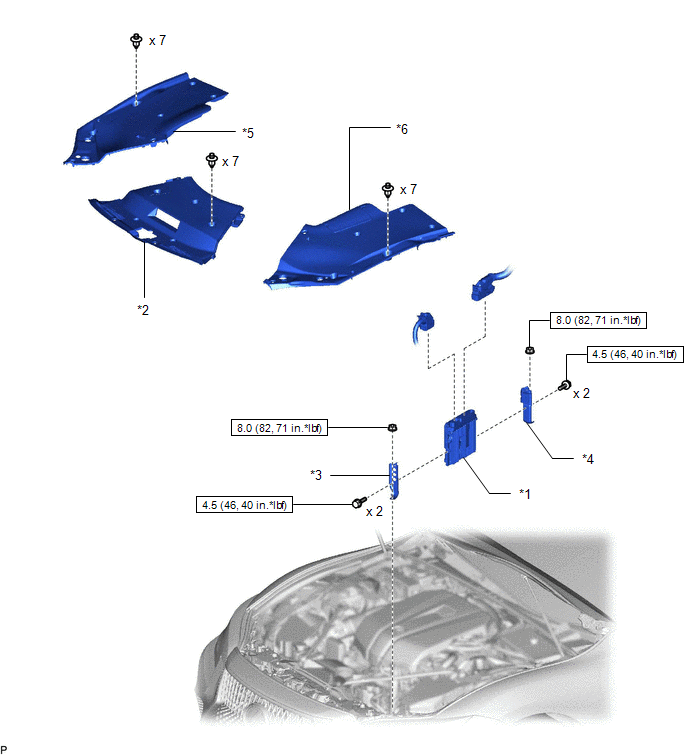

Fig 1: ECM Replacement Components With Torque Specifications [10/2017 - 10/2020]
GTY793984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 LOWER RADIATOR AIR DEFLECTOR
*3 NO. 1 ECM BRACKET *4 NO. 2 ECM BRACKET
*5 RADIATOR COVER PLATE *6 UPPER RADIATOR SUPPORT SEAL
N.m (kgf/cm, ft.lbf): Specified torque - -
