Installation [10/2014 - ]: Procedure

1. Install the No. 2 ECM bracket to the ECM with the 2 screws.

   Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

1. Install the No. 1 ECM bracket to the ECM with the 2 screws.

   Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

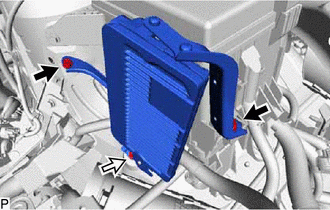

1. Install the ECM with the 3 bolts.

   for bolt A

   Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)

   for bolt B

   Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt A
   	Bolt B

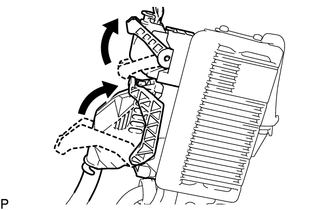

2. Connect the 2 ECM connectors and lock with the 2 levers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When connecting a connector, make sure that dirt, water and other foreign matter are not stuck between the connector and ECM.
   • Make sure that the 2 levers are securely lowered.
3. Connect the wire harness to the No. 2 ECM bracket with the bolt.

   Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

1. Install the air cleaner case sub-assembly with the 2 bolts.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

1. Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.

See step  2

Refer to PROCEDURE - Step 66 [10/2014 - 09/2015], or refer to PROCEDURE - Step 66 [09/2015 - 09/2017], or refer to PROCEDURE - Step 66 [09/2017 - 05/2019], or refer to PROCEDURE - Step 67 [05/2019 - ]

Refer to PROCEDURE - Step 67 [10/2014 - 09/2015], or refer to PROCEDURE - Step 67 [09/2015 - 09/2017], or refer to PROCEDURE - Step 67 [09/2017 - 05/2019], or refer to PROCEDURE - Step 68 [05/2019 - ]

Refer to PROCEDURE - Step 68 [10/2014 - 09/2015], or refer to PROCEDURE - Step 68 [09/2015 - 09/2017], or refer to PROCEDURE - Step 68 [09/2017 - 05/2019], or refer to PROCEDURE - Step 69 [05/2019 - ]
