Components [10/2014 - ]

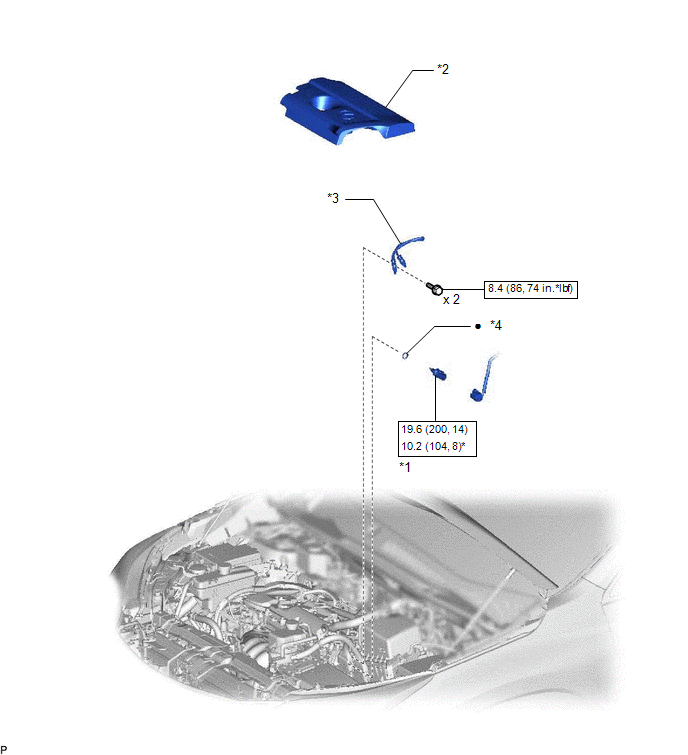

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY514755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 GROUND WIRE *4 GASKET
N*m (kgf*cm, ft.*lbf) : Specified torque * For use with ball joint lock nut wrench
• Non-reusable part - -
