Components [10/2014 - ]

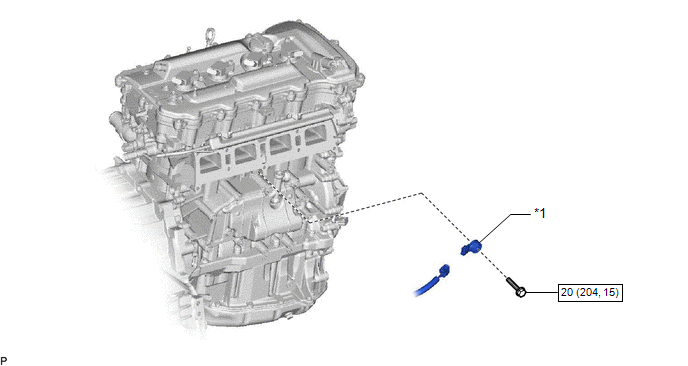

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY500897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KNOCK CONTROL SENSOR - -
N*m (kgf*cm, ft.*lbf) : Specified torque - -
