Components [10/2014 - ]

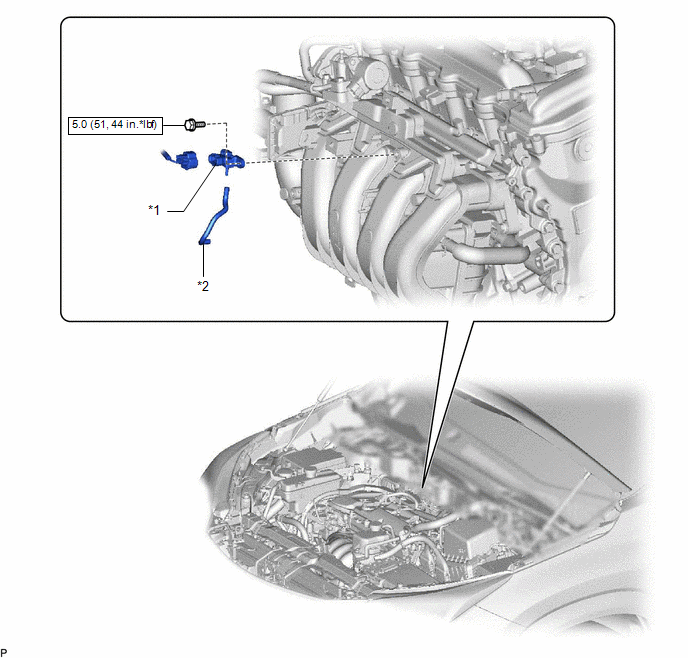

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications
GTY498200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MANIFOLD ABSOLUTE PRESSURE SENSOR *2 VACUUM HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -
