Components [10/2014 - ]

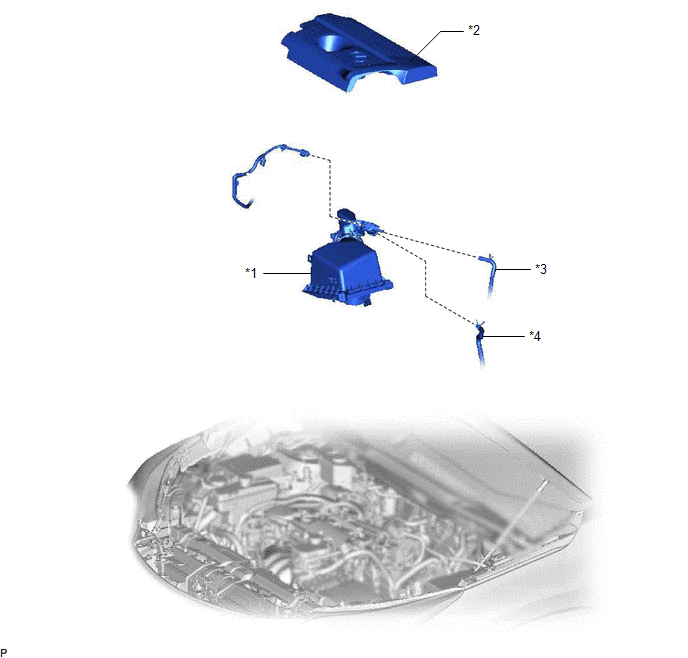

| *1 | AIR CLEANER CAP AND HOSE | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | FUEL VAPOR FEED HOSE | *4 | NO. 2 FUEL VAPOR FEED HOSE |

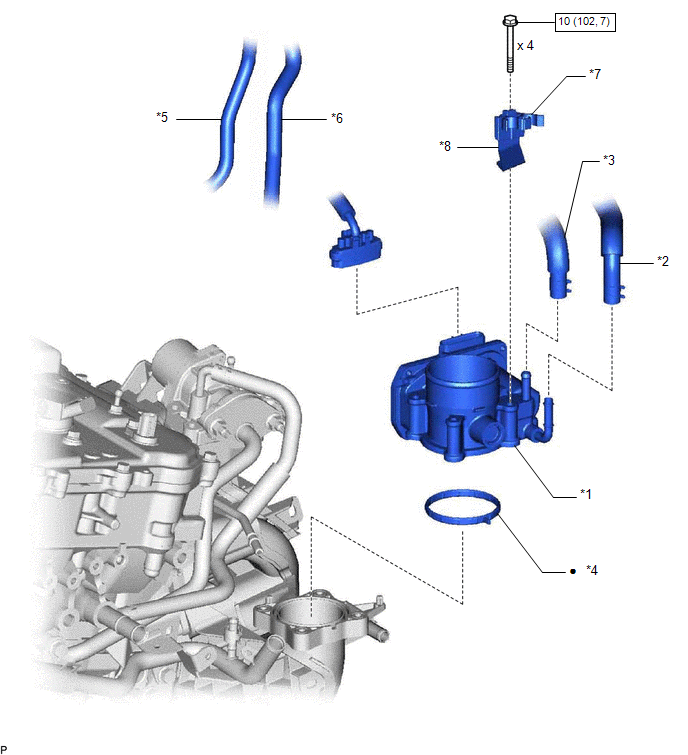

| Callout | Description | Callout | Description |
| *1 | THROTTLE WITH MOTOR BODY ASSEMBLY | *2 | NO. 2 WATER BY-PASS HOSE |
| *3 | NO. 3 WATER BY-PASS HOSE | *4 | GASKET |
| *5 | FUEL TUBE SUB-ASSEMBLY | *6 | NO. 2 FUEL VAPOR FEED HOSE |
| *7 | FUEL HOSE CLAMP | *8 | FUEL HOSE BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
