Removal [09/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
- REMOVE V-RIBBED BELT
Refer to REMOVAL [09/2014 - ]
- REMOVE GENERATOR ASSEMBLY

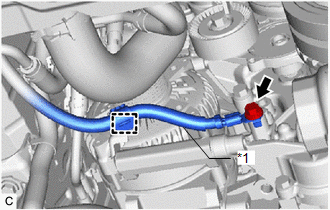

- Disengage the clamp.
*1 Engine Wire - Remove the bolt and disconnect the engine wire.

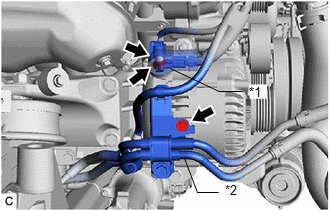

- Open the terminal cap.
*1 Terminal Cap *2 Oil Cooler Tube - Remove the nut and disconnect the engine wire from terminal B.
- Disconnect the generator assembly connector.
- Remove the bolt and disconnect the oil cooler tube.

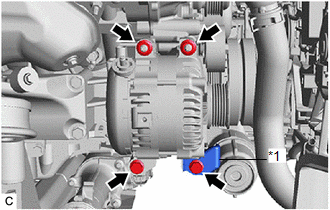

- Remove the 2 bolts, 2 nuts and engine wire bracket.

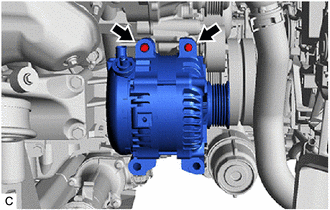

*1 Engine Wire Bracket - Using an E8 "TORX" socket wrench, remove the 2 stud bolts and generator assembly.
- Disengage the clamp.
