Components [09/2014 - ]

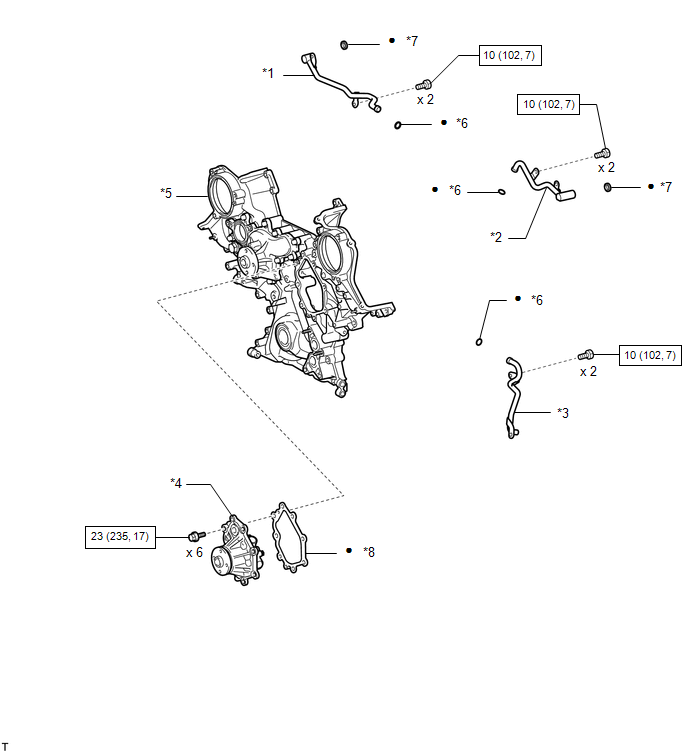

Fig 1: Scavenging Pump Replacement Components With Torque Specifications
GTY497949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 OIL PIPE *2 NO. 2 OIL PIPE
*3 NO. 3 OIL PIPE *4 SCAVENGING PUMP ASSEMBLY
*5 TIMING CHAIN COVER SUB-ASSEMBLY *6 O-RING
*7 OIL PIPE SEAL *8 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
