Removal [09/2014 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • The accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
    1. Disconnect the accelerator pedal sensor assembly connector.

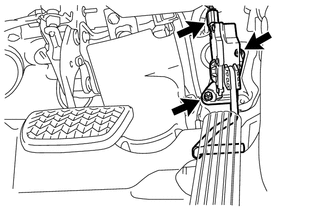

      GTY470334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal sensor assembly.
  2. REMOVE ACCELERATOR PEDAL PAD
    1. Disengage the 2 claws to remove the accelerator pedal pad.

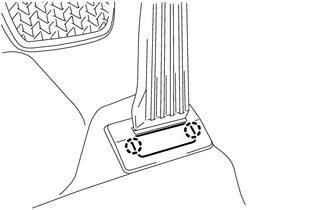

      GTY464445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. Remove the 2 bolts and accelerator pedal assembly.

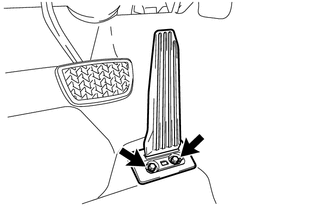

      GTY464442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
