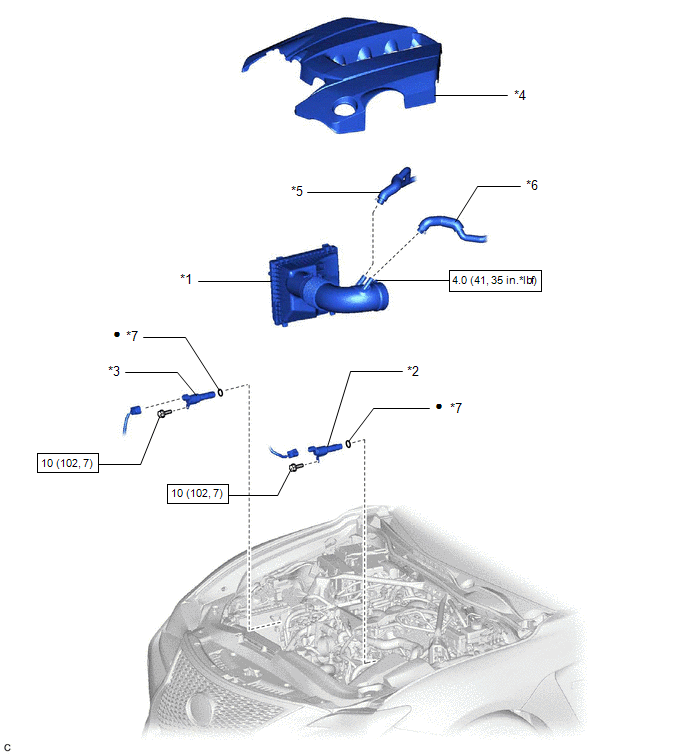

Components [09/2014 - ]
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH |
| *3 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH | *4 | V-BANK COVER SUB-ASSEMBLY |
| *5 | NO. 2 VENTILATION HOSE | *6 | NO. 3 VENTILATION HOSE |
| *7 | O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
