Inspection [09/2014 - ]: Procedure

HINT:

Use the same procedure for the camshaft timing control motor with EDU assembly LH and camshaft timing control motor with EDU assembly RH.

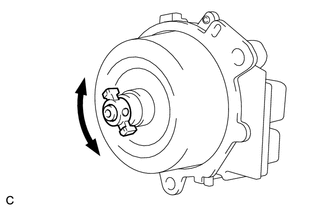

1. Rotate the joint of the camshaft timing control motor with EDU assembly by hand and check that it rotates smoothly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Condition

   The motor rotates smoothly.

   NOTE:

   • If the camshaft timing control motor with EDU assembly has been struck or dropped, replace it.
   • Do not disassemble the camshaft timing control motor with EDU assembly. If disassembled, replace it.
   • Make sure the contact surface of the camshaft timing control motor with EDU assembly (connecting surface with the timing chain or belt cover sub-assembly) is free of foreign matter.

   If the result is not as specified, replace the camshaft timing control motor with EDU assembly.
