Removal [09/2014 - ]: Procedure

  1. REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 15 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 15 [03/2019 - ]

  2. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 17 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 17 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 17 [03/2019 - ]

  3. REMOVE CRANKSHAFT POSITION SENSOR

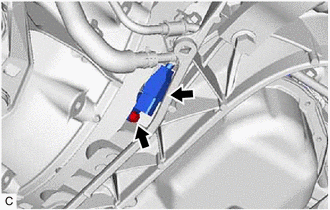

    1. Disconnect the crankshaft position sensor connector.
      GTY515741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
